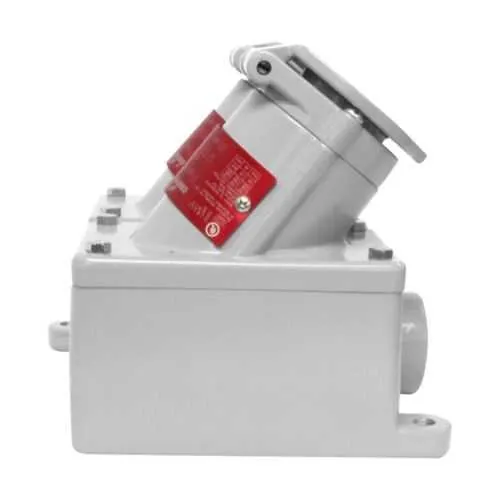

Eaton Crouse-Hinds CFS250-2023 PowerGard Receptacle HazLoc
Part Number: CFS250-2023
Quick Summary
PowerGard receptacle assembly by Eaton Crouse-Hinds provides reliable, explosion-proof electrical connections for hazardous locations. End users frequently face downtime, corrosion, and compliance gaps during maintenance; this solution reduces maintenance cycles and simplifies inspections. It carries NEC/CEC compliance and hazardous area ratings, including Class I, Division 1 and NEMA 3/3R, supporting safe operation in rugged environments. With a copper-free aluminum body and a compact two-gang, dead-end design at 1/2 inch trade size, it aligns with standard wiring practices, delivering safety, reliability, and lower lifecycle costs for industrial facilities.
Product Information
Extended Description
CFS250-2023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Dead end, 1/2", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS250-2023
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276358409
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
1/2"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS250-2023
Feature: Copper-free aluminum construction provides corrosion resistance and lighter weight. Business Impact: Reduces maintenance, extends service life, and lowers handling fatigue during installation. Application: Ideal for corrosive or damp environments in hazardous locations where metal cleanliness and longevity matter. Feature: Two-wire, three-pole configuration simplifies terminations and reduces mis-wiring risk. Business Impact: Improves installation speed and electrical safety, cutting commissioning time by hours per panel. Application: Use in control cabinets and distribution panels demanding robust performance in hazardous zones. Feature: 20A at 125 Vac with a 1/2" trade size matches common plant loads and conduit fittings. Business Impact: Optimizes circuit design, minimizes over-sizing, and lowers energy waste. Application: Suitable for general process or equipment outlets in hazardous plants. Feature: Two-gang, dead-end style supports compact mounting and safer shutdown procedures. Business Impact: Enhances enclosure density and simplifies maintenance access. Application: Works well in tight electrical rooms and junction boxes. Feature: NEMA 3/3R rating and NEC/CEC compliance ensure rugged operation in dust, moisture, and temperature variations. Business Impact: Improves regulatory alignment and reduces risk of non-compliance penalties. Application: Essential for installations in outdoors, wash-down areas, or offshore environments. Feature: Fully documented compatibility with PowerGard literature and instruction sheets (IF 1663) and catalog pages. Business Impact: Speeds procurement and ensures correct installation, reducing field errors. Application: Alignment with Eaton literature aids installers in the field and procurement teams during specification.
Get a Quick Quote for a Eaton Crouse-Hinds CFS250-2023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS250-2023?
Enquire Now
FAQs
Installation follows standard PowerGard guidelines for hazardous environments. Use the two-wire, three-pole configuration with a 1/2 inch trade size, install in a two-gang dead-end housing, and follow NEC/CEC requirements for Class I, Division 1 locations. Refer to IF 1663 and the PowerGard instruction sheet for step-by-step mounting, wiring, and safety checks to ensure compliant and reliable operation.
The CFS250-2023 carries NEC/CEC compliance and hazardous location ratings, including Class I, Division 1, Class II, Division 1, and Class III. It also meets NEMA 3 and 3R requirements, enabling safe operation in dust, moisture, and rugged industrial environments commonly found in chemical plants, oil and gas facilities, and outdoor installations.
This receptacle is rated for 20A at 125 Vac, configured as two-wire, three-pole, with a 1/2" trade size. It uses copper-free aluminum, is two-gang and dead-end in style, and is designed for hazardous locations. These specs align with typical plant loads and standard conduit fittings, enabling straightforward integration into existing systems.
Yes. Installation guidance is available via the IF 1663 PowerGard instruction sheet, catalog pages, and a dedicated PowerGard brochure and catalog page. Canadian and other regional certifications are documented in UL/ULC reports. This material helps ensure correct mating components, wiring methods, and compliance during install and commissioning.
Copper-free aluminum construction offers improved corrosion resistance, reducing maintenance frequency in harsh environments. The robust PowerGard design lowers downtime and extends service life in hazardous locations, delivering lower lifecycle costs and higher uptime for critical processes, with predictable maintenance cycles supported by standardized Eaton documentation.
