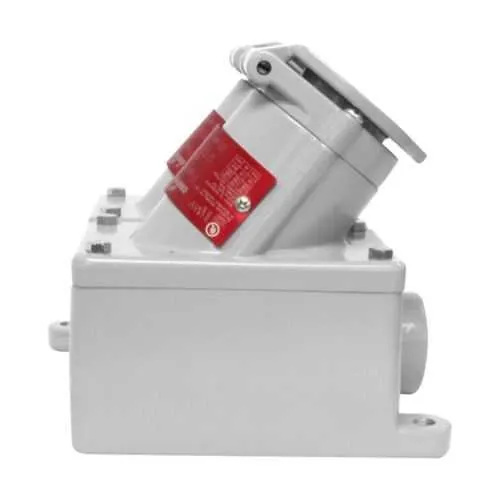

Eaton CFS275-2023-M15 PowerGard Receptacle - Class I/Div1
Part Number: CFS275-2023-M15
Manufacturer
Eaton Crouse-Hinds
Part number
CFS275-2023-M15
Category
Quick Summary
PowerGard receptacle assembly by Eaton provides rugged electrical terminations for hazardous locations in industrial power-distribution applications. In hazardous environments, compatibility with NEC/CEC standards and durable, explosion-proof design are essential to avoid costly downtime and safety risks. This unit carries NEC/CEC compliance and hazardous location ratings, including Class I, Division 1, Class II, Division 1, and Class III, plus NEMA 3 and 3R protection. For contractors and engineers, the two-gang copper-free aluminum housing, 3/4" trade size, and 125 Vac, 20 A rating translate to quicker installation, reduced weight, and easier maintenance. Choose PowerGard to meet stringent regulatory requirements while streamlining procurement and installation in chemical processing, mining, and industrial power-distribution applications.
Product Information
Extended Description
CFS275-2023-M15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Dead end, 3/4", M15 model, 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS275-2023-M15
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276516120
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
3/4"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
Type
M15 model
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS275-2023-M15
Feature: Copper-free aluminum construction reduces weight and enhances corrosion resistance in challenging environments. Business Impact: Lowered installation effort and longer service life in humid, chemical, or offshore settings. Application: Hazardous location receptacles in chemical plants and oil & gas facilities benefit from easier handling and sustained performance. Feature: Two-gang, dead-end, 3/4" trade size design enables compact panels and simplified wiring. Business Impact: Increased wiring efficiency and reduced panel footprint, cutting labor time during installation. Application: Control cabinets and junction boxes in confined spaces benefit from leaner layouts. Feature: Two-wire, three-pole configuration at 125 Vac and 20A delivers standard, compatible power distribution. Business Impact: Seamless integration with existing circuits and minimized rewiring risk, saving project time. Application: General-purpose hazardous-location power distribution in industrial facilities. Feature: NEC/CEC compliance with Class I, Division 1, Class II, Division 1, Class III ratings and NEMA 3/3R protection. Business Impact: Strong regulatory alignment reduces risk of non-compliance penalties and enhances overall plant safety. Application: Nationwide procurement for facilities requiring certified explosion-proof receptacles. Feature: Comprehensive installation resources including IF 1663, literature, and datasheets. Business Impact: Faster commissioning and fewer field questions, improving site productivity. Application: Installers benefit from readily available guidance and documentation, shortening start-up.
Get a Quick Quote for a Eaton Crouse-Hinds CFS275-2023-M15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS275-2023-M15?
Enquire Now
FAQs
Follow the IF 1663 installation sheet and use the two-gang, dead-end housing designed for a 3/4" trade size. Verify area classification (Hazardous/Classified Locations) and ensure wiring complies with NEC/CEC. The unit’s copper-free aluminum housing and two-wire, three-pole configuration simplify panel mounting, wiring, and inspection in hazardous environments.
The CFS275-2023-M15 is rated for 20A at 125 Vac, configured as two-wire, three-pole. It features a two-gang, dead-end design in copper-free aluminum and uses a 3/4" trade size, making it compatible with common hazardous-location installations and standard distribution panels.
Yes. The PowerGard receptacle assembly carries NEC hazardous ratings including Class I, Division 1, and is intended for Hazardous/Classified Locations. It also delivers NEMA 3/3R protection, making it suitable for demanding industrial sites where explosion-proof performance is required.
Access UL Canadian certifications, PowerGard brochures, and installation sheets (IF 1663). Documentation includes the PowerGard brochure, catalog page, and the Eaton Specification Sheet for CFS275-2023-M15, along with certification reports for compliance in hazardous locations.
The copper-free aluminum housing reduces corrosion risk and weight, lowering handling and support costs. Its rugged construction and certified ratings minimize downtime from failures or non-compliance, while documented installation resources shorten commissioning time, delivering faster project delivery and favorable total cost of ownership in hazardous-location facilities.
