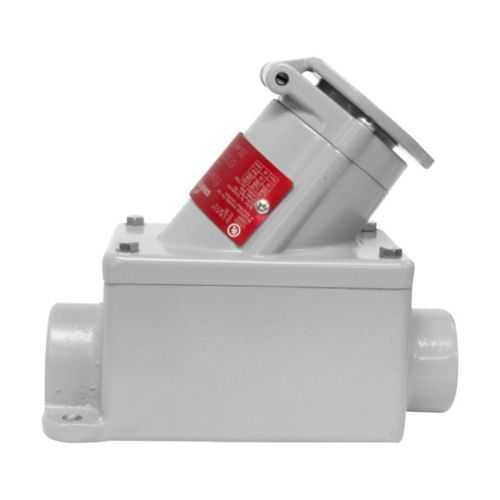

Eaton CFSC110-2023 PowerGard Receptacle Assembly - Hazardous Locations
Part Number: CFSC110-2023
Quick Summary
PowerGard receptacle assembly provides reliable hazardous-location power distribution for rugged industrial environments. In harsh facilities, routine outlets struggle with dust, moisture, and explosive atmospheres that interrupt production. This unit meets NEC/CEC standards and hazardous location ratings, including Class I, Division 1; Class II, Division 1; and Class III, plus NEMA 3 and 3R definitions for rugged service. Designed for through-feed wiring in a 1" trade size, 20A and 125 Vac, it delivers safer, lower-maintenance operation and faster installs—benefits engineers, technicians, and procurement teams rely on to minimize downtime and ensure regulatory compliance.
Product Information
Extended Description
CFSC110-2023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Through feed, 1", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC110-2023
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276358386
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
1"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC110-2023
Feature → Business Impact → Application: Through-feed, two-wire, three-pole configuration enables safe, continuous wiring without splices, reducing fault points and speeding field work. This enhances reliability on hazardous-location circuits in oil, gas, chemical processing, and mining environments. Application: ideal for single-gang through-feed outlets in constrained spaces where hazardous-area compliance is required. Feature → Business Impact → Application: Copper-free aluminum construction lowers weight, improves corrosion resistance, and simplifies maintenance in corrosive or outdoor installations. Application: supports long-term durability in outdoor yards, plants, and hazardous locations without frequent part replacements. Feature → Business Impact → Application: 1" trade size with 7.25" depth, 9" height, and 6.25" width provides compact, easer installation in existing panels and switchgear rooms. Application: suitable for retrofit or new-build projects requiring a compact, compliant outlet. Feature → Business Impact → Application: NEC/CEC compliance with NEC hazardous ratings Class I Division 1, Class II Division 1, Class III and NEMA 3/3R ensures regulatory alignment and safer operation. Application: reduces risk during audits and supports enterprise-wide safety programs. Feature → Business Impact → Application: Through-feed single-gang receptacle aligned with standard 20A circuits and 125 Vac, enabling quick integration with common electrical infrastructure. Application: streamlines installation in industrial facilities, refineries, and processing plants. Feature → Business Impact → Application: Documentation and installation resources such as IF 1663 and product literature accelerate training and on-site commissioning. Application: reduces commissioning time and improves field technician confidence.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC110-2023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC110-2023?
Enquire Now
FAQs
Follow the through-feed wiring procedure per the IF 1663 instruction sheet and the catalog/datasheet guidance. Use proper sealing, grounding, and mounting in a single-gang enclosure sized for 1" trade size. Ensure compliance with NEC/CEC Class I Division 1 requirements and local hazardous-location codes to minimize ignition risks and downtime.
Yes. The receptacle is rated for 20A and 125 Vac, designed to integrate with typical industrial power distribution while meeting NEC/CEC standards for hazardous locations. This compatibility enables straightforward selection and servicing within existing electrical architectures without special transformers or adapters.
CFSC110-2023 carries NEC/CEC compliance with hazardous-location ratings Class I, Division 1; Class II, Division 1; and Class III, along with NEMA 3 and 3R ratings. These certifications support safe operation in explosive atmospheres and provide regulatory assurance for audits and safety programs.
The unit is a single-gang through-feed receptacle with a 1" trade size, measuring 7.25 in in depth, 9 in high, and 6.25 in wide. It weighs approximately 3.8 lb. These specs help in panel planning, mounting clearances, and calculating support structures for hazardous-location installations.
The receptacle assembly delivers safer wiring, corrosion resistance with copper-free aluminum, and faster installation through standard documentation. The combination of through-feed wiring and NEC/CEC compliance reduces maintenance costs, minimizes downtime, and supports audit-ready safety and reliability across plants, refineries, and chemical processing sites.
