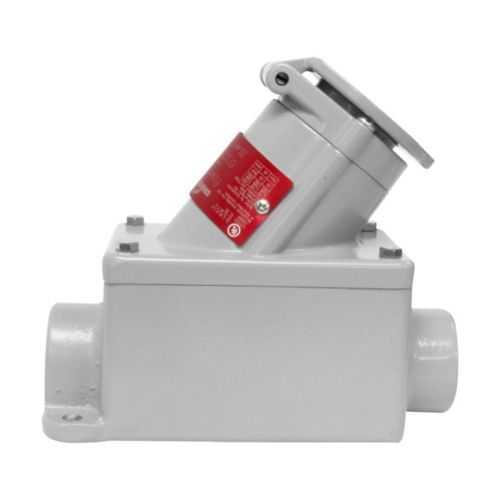

Eaton CFSC110-20232-M15 PowerGard Receptacle - Hazardous
Part Number: CFSC110-20232-M15
Manufacturer
Eaton Crouse-Hinds
Part number
CFSC110-20232-M15
Category
Quick Summary
PowerGard receptacle assembly CFSC110-20232-M15 provides rugged, two-wire, three-pole power distribution for hazardous locations. In harsh industrial environments, unreliable components can cause downtime, rework, and costly maintenance. This unit carries NEC/CEC compliance and is rated for Hazardous/Classified Locations with NEMA 3 and 3R protection, ensuring safe operation under demanding conditions. Configured as a single-gang, 1 in trade size receptacle with copper-free aluminum construction, it supports easy installation, long service life, and lower total cost of ownership across oil, gas, mining, and chemical facilities. Its PowerGard lineage also helps meet compliance audits and reduces maintenance planning time.
Product Information
Extended Description
CFSC110-20232-M15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Through feed, 1", M15 model, 250 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC110-20232-M15
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276517493
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
1"
Amperage Rating
20A
Voltage rating
250 V AC
Material
Copper-free aluminum
Type
M15 model
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC110-20232-M15
Feature: 20A, 250 VAC amperage and voltage rating. Business Impact: Supports standard industrial loads while meeting code requirements, reducing the need for mid-project component upgrades. Application: Suitable for general-purpose hazardous-location power distribution in chemical plants and refineries. Feature: Copper-free aluminum construction. Business Impact: Provides corrosion resistance and lighter weight for easier handling and installation, lowering maintenance costs over time. Application: Environments with moisture, humidity, or corrosive atmospheres. Feature: Through-feed, single-gang design with 1" trade size. Business Impact: Streamlines wiring and reduces installation time, improving job-site efficiency. Application: Tight electrical enclosures and retrofit projects in mining or oil & gas facilities. Feature: NEC/CEC compliance and hazardous ratings (Class I, Division 1; Class II, Division 1; Class III). Business Impact: Simplifies regulatory approvals and reduces audit risk. Application: Hazardous locations requiring proven fault isolation. Feature: NEMA Rating 3 and 3R. Business Impact: Enhances weather- and impact-resistance for outdoor or harsh indoor environments. Application: Outdoor substations, processing plants, and wash-down areas. Feature: Dimensions and weight (7.25 in L, 9 in H, 6.25 in W, 3.8 lb). Business Impact: Predictable footprint supports layout planning and inventory control. Application: Facility-wide electrical distribution where space is constrained.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC110-20232-M15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC110-20232-M15?
Enquire Now
FAQs
Install CFSC110-20232-M15 in a suitable single-gang enclosure with a 1" trade size opening. Ensure proper wiring of the two-wire, three-pole configuration and secure the through-feed conductors to maintain a continuous wiring path. Follow NEC/CEC guidelines and UL listings for hazardous-location installations. Verify clearance, enclosure integrity, and grounding connections to maximize safety and compliance.
The unit is rated for 20A at 250 VAC. It uses a two-wire, three-pole configuration and a single-gang, 1" trade size design with through-feed capability. This combination supports standard industrial loads while meeting stringent hazardous-location requirements, making it ideal for chem, oil & gas, and mining applications.
CFSC110-20232-M15 is tailored for hazardous and classified locations, including oil and gas facilities, chemical plants, mining operations, and other environments requiring explosion-protected power connections. Its copper-free aluminum construction and NEMA 3/3R protection make it suitable for outdoor, damp, or wash-down areas while maintaining reliability in demanding conditions.
This receptacle assembly carries NEC/CEC compliance and is rated for Hazardous/Classified Locations with Class I, Division 1; Class II, Division 1; Class III. It also holds a NEMA 3 and 3R rating. Canadian and UL certification references are available in the product literature and downloadable files for audit-ready documentation.
Benefits include reduced downtime due to robust explosion-proof construction, lower maintenance needs from copper-free aluminum corrosion resistance, and longer service life in harsh environments. Through its through-feed design and standardized 1" trade size, installation time is minimized, enabling faster project completion and lower total cost of ownership over the life of the installation.
