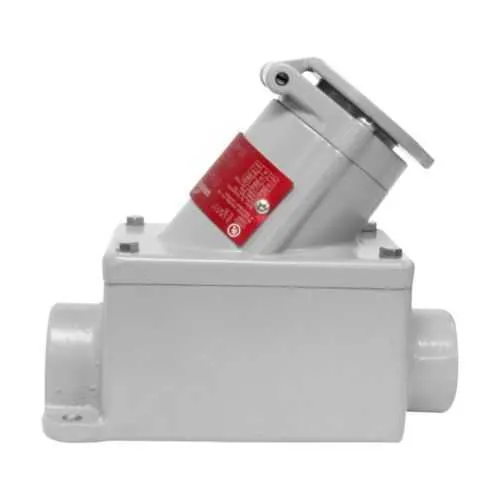

Eaton CFSC150-2023-M15 PowerGard Receptacle - Hazardous
Part Number: CFSC150-2023-M15
Manufacturer
Eaton Crouse-Hinds
Part number
CFSC150-2023-M15
Category
Quick Summary
PowerGard receptacle assembly delivers safe, reliable power connections for hazardous locations in industrial facilities. Engineers often struggle with finding equipment that meets strict safety and reliability demands in Class I Division 1 environments. This unit aligns with NEC/CEC requirements and carries NEMA 3 and 3R ratings, plus Canadian certifications to support cross-border projects. By integrating a copper-free aluminum housing with a through-feed, single-gang footprint, it simplifies installation, reduces weight, and improves long-term maintenance costs. For power distribution in harsh settings, this solution delivers predictable performance and rapid compliance, while complementary documentation and compatibility with standard enclosures streamline procurement for industrial operations.
Product Information
Extended Description
CFSC150-2023-M15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Through feed, 1/2", M15 model, 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC150-2023-M15
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276515826
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
1/2"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
Type
M15 model
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC150-2023-M15
Feature: 20A at 125 Vac with through-feed, two-wire, three-pole configuration. Business Impact: Enables safe, code-compliant connections for mid-range industrial circuits in hazardous locations, reducing wiring complexity and tightening installation schedules. Application: Powering control panels and equipment in Class I Division 1 zones with minimal downtime. Feature: Copper-free aluminum construction weighing 3.8 lb. Business Impact: Corrosion-resistant, lighter assemblies that ease handling during field installs and reduce shipping costs. Application: Outdoor or damp environments where metal corrosion is a concern. Feature: Through-feed single-gang design and 1/2" trade size. Business Impact: Streamlines integration with standard enclosures and reduces panel footprint, cutting labor time during retrofit projects. Application: Retrofit or new builds in hazardous locations requiring compact, reliable outlets. Feature: NEC/CEC compliance with NEC hazardous rating Class I Division 1, Class II Division 1, Class III plus NEMA 3 and 3R. Business Impact: Provides regulatory confidence and broad environmental protection, minimizing risk of noncompliance penalties. Application: Global projects with strict certification needs in hazardous areas. Feature: Documentation and installation support (IF 1663 instruction sheets, UL/Canada certifications). Business Impact: Accelerates approval cycles and reduces on-site questions, lowering total cost of ownership. Application: Commissioning, maintenance planning, and procurement workflows for safety-critical facilities.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC150-2023-M15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC150-2023-M15?
Enquire Now
FAQs
CFSC150-2023-M15 supports a 1/2" trade size, single-gang, through-feed configuration with two-wire, three-pole connections rated at 20A and 125 Vac. It is designed to integrate with standard enclosures used in hazardous locations, ensuring a reliable, code-compliant interface for power distribution.
This receptacle assembly carries NEC/CEC standards, NEC hazardous ratings Class I Division 1 (and Class II/III as listed), NEMA ratings 3 and 3R, and area classification for Hazardous/Classified Locations. Canadian certification entries and UL-listed documentation are available to support cross-border projects.
Yes. The copper-free aluminum housing provides corrosion resistance, and the NEMA 3/3R ratings offer protection against exposure to weather and water ingress. This makes it suitable for outdoor installations and other challenging environments common in industrial plants.
With a single-gang, through-feed design and a compact 1/2" trade size, the unit minimizes material footprints and simplifies wiring. Its compatibility with standard mounting configurations reduces field labor, while documented installation sheets (IF 1663) and cross-referenced certifications streamline approvals.
The copper-free aluminum construction reduces weight and corrosion risk, lowering maintenance frequency and material costs. NEC/CEC compliance plus NEMA protection minimize risk of compliance penalties, while clear documentation and certification support reduce commissioning time and long-term operating expenses.
