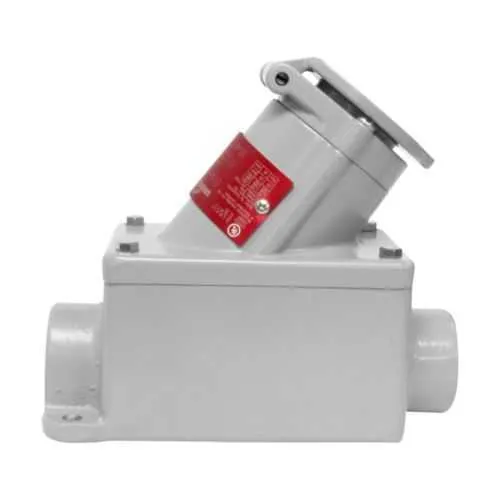

Eaton Crouse-Hinds CFSC150-20232 PowerGard Receptacle - Hazardous Locations
Part Number: CFSC150-20232
Quick Summary
PowerGard receptacle assembly by Eaton Crouse-Hinds delivers rugged electrical connection performance for hazardous locations. Engineers often struggle with finding outlets that endure harsh environments, maintain safety, and simplify installation in confined panels. This model carries NEC/CEC classifications and robust enclosure ratings to support reliable operation in explosive atmospheres while reducing downtime. With a single-gang through-feed design, 1/2'' trade size, copper-free aluminum construction, and a 20A, 250V rating, it integrates smoothly into industrial control panels and field wiring. The combination of high durability, compliance, and ease of maintenance translates into lower lifecycle costs and greater system uptime for harsh-location applications.
Product Information
Extended Description
CFSC150-20232 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Through feed, 1/2", 250 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC150-20232
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276358737
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
1/2"
Amperage Rating
20A
Voltage rating
250 V AC
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC150-20232
Feature → Business Impact → Application: Copper-free aluminum body reduces corrosion and weight, improving long-term durability in corrosive environments and making installation easier in tight spaces; enhances overall reliability of hazardous-location power distribution and reduces maintenance cycles in industrial facilities. Feature → Through-feed, single-gang configuration simplifies wiring and enclosure routing, enabling faster panel builds and reduced labor costs during installation and upgrades in chemical, oil & gas, and mining plants. Feature → Two-wire, three-pole design delivers a clean, reliable connection with fewer miswires, accelerating commissioning and improving fault diagnostics in critical safety circuits. Feature → 1/2" trade size and 20A, 250V rating ensure compatibility with standard industrial power feeds while delivering sufficient headroom for typical control-panel receptacle loads, improving system efficiency and reducing the need for oversizing components. Feature → NEMA 3R and NEC hazardous-location ratings provide proven protection against rain, ice, and dust ingress plus safe operation in Class I/II/III zones, helping meet regulatory requirements and minimizing risk in hazardous environments. Feature → Compliance with NEC/CEC and through-feed design support easy integration with existing PowerGard ecosystems and catalog pages, enabling seamless upgrades and standardized procurement across facilities. About installation, the PowerGard CFSC150-20232 line benefits from Eaton’s installation literature, such as IF 1663, which helps technicians reduce field errors and achieve consistent safety practices across teams.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC150-20232
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC150-20232?
Enquire Now
FAQs
Yes. The CFSC150-20232 PowerGard receptacle assembly is rated for Class I, Division 1, Class II, Division 1, and Class III locations, with a through-feed, single-gang design that fits standard enclosures and supports copper-free aluminum construction for corrosive environments. Use standard wiring practices per NEC/CEC and follow the IF 1663 instructions for best results.
The unit provides 20A at 250V AC, is copper-free aluminum, and configured as two-wire, three-pole. It is a single-gang, through-feed receptacle with a 1/2 inch trade size, designed for rugged industrial use and straightforward wiring into control panels.
Yes. It carries NEC hazardous locations ratings and a NEMA 3R rating, delivering explosion-proof performance in hazardous environments and protection against weather exposure in appropriate installations.
The receptacle aligns with NEC/CEC standards for hazardous locations and area classifications, including Class I, Division 1, Class II, Division 1, and Class III, with additional NEMA 3R protection to support outdoor or damp environments.
The copper-free aluminum construction offers corrosion resistance and lighter weight, reducing replacement costs and installation time. Its compliance and rugged design minimize downtime in hazardous locations, improving overall asset reliability and long-term return on investment.
