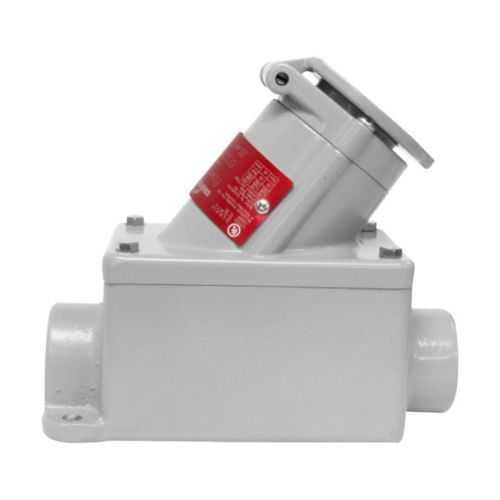

Eaton Crouse-Hinds CFSC175-1523 Receptacle Assembly - Hazardous Locations
Part Number: CFSC175-1523
Quick Summary
CFSC175-1523 is a PowerGard receptacle assembly that safely distributes 125 VAC power in hazardous locations. Wiring in classified spaces often faces certification hurdles, space constraints, installation sequencing challenges, and equipment downtime. This unit carries NEC/CEC compliance, plus NEC hazardous ratings Class I, Division 1 and NEMA ratings 3 and 3R, enabling safe operation in many hazardous environments. By combining robust copper-free aluminum construction with a through-feed, single-gang enclosure and a 3/4 inch trade size, the CFSC175-1523 minimizes footprint while maximizing reliability. For facilities aiming to reduce maintenance cycles and streamline procurement, this receptacle delivers predictable performance and lower total cost of ownership, while supporting PowerGard accessories and ENP plug compatibility.
Product Information
Extended Description
CFSC175-1523 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 15A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Through feed, 3/4", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC175-1523
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276361836
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
3/4"
Amperage Rating
15A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC175-1523
Through-feed, single-gang design simplifies wiring and reduces enclosure count, delivering faster installations and easier maintenance in busy industrial spaces. The 3/4 inch trade size and two-wire, three-pole configuration support standard power distribution while meeting classification requirements. This combination minimizes field assembly steps, improves reliability, and aligns with PowerGard accessory ecosystems. Electrical rating of 15A at 125 VAC provides suitability for common control and lighting circuits without oversizing equipment costs. By maintaining a tight rating, facilities can optimize wiring topology, reduce inrush concerns, and streamline panel planning in hazardous locations. Copper-free aluminum construction delivers corrosion resistance in harsh environments, improving longevity in chemical plants or outdoor installations. The material choice lowers total cost of ownership by reducing replacement intervals and minimizing maintenance interventions while staying within NEC/CEC material guidelines. Compliance with NEC/CEC standards and explicit Class I, Division 1 ratings provides a defensible safety case for hazardous-area installations. NEMA 3 and 3R enclosures deliver weather and moisture resistance, extending service life in outdoors, damp interiors, or wash-down areas. Through-feed installation compatibility with ENP plugs and PowerGard back boxes ensures consistent plug/receptacle performance. The single-gang configuration and standard dimensions support compatible mounting in existing enclosures, reducing retrofit risk and accelerating procurement cycles.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC175-1523
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC175-1523?
Enquire Now
FAQs
CFSC175-1523 is a single-gang through-feed receptacle designed for hazardous/classified locations. It mounts in standard single-gang enclosures and uses a 3/4 inch trade size, with overall dimensions of approximately 7.25 inches long by 9 inches high by 6.25 inches wide. It weighs about 3.8 lb and follows a two-wire, three-pole configuration for reliable field connections.
The device is rated for 15A at 125 VAC and uses a two-wire, three-pole configuration. It is constructed from copper-free aluminum and features a 3/4 inch trade size in a single-gang form factor with through-feed wiring, designed to simplify installation while maintaining hazardous-location compatibility.
Yes. The CFSC175-1523 carries NEC hazardous ratings including Class I, Division 1, and is intended for use in hazardous/classified locations. It also carries NEMA ratings 3 and 3R for weather- and moisture-resistant performance, making it suitable for outdoor or damp indoor environments in industries such as oil and gas and chemical processing.
CFSC175-1523 adheres to NEC/CEC standards and carries NEC hazardous ratings for Division 1 classifications. It holds NEMA ratings 3 and 3R, with UL certifications documented for PowerGard receptacles and back boxes used with ENP plugs, ensuring compliance for hazardous locations and certified plug compatibility as part of an integrated system.
The copper-free aluminum construction provides superior corrosion resistance, extending service life in harsh environments and reducing maintenance cycles. A through-feed, single-gang design minimizes wiring steps and enclosure complexity, cutting installation time and labor costs. Combined with proven NEC/CEC compliance and ENP plug compatibility, this yields lower total cost of ownership and improved system reliability in hazardous locations.
