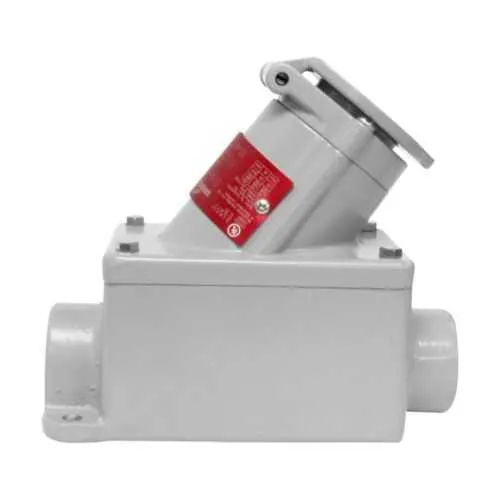

Eaton CFSC175-20232 PowerGard Receptacle Assembly - 3/4in
Part Number: CFSC175-20232
Quick Summary
PowerGard receptacle assembly is a safe, explosion-proof power connection solution for hazardous locations. Engineers often struggle to install compliant, reliable outlets in crowded panels or tight spaces without sacrificing performance. This model carries NEC/CEC compliance and hazardous location ratings, including Class I, Division 1, Class II, Division 1, and Class III, along with NEMA 3 and 3R ruggedness. The copper-free aluminum housing and through-feed, single-gang design deliver durable operation while minimizing maintenance. With a 20A, 250V rating and 3/4 inch trade size, it supports mainstream industrial loads and simplifies installation in challenging environments.
Product Information
Extended Description
CFSC175-20232 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Through feed, 3/4", 250 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC175-20232
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276358744
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
3/4"
Amperage Rating
20A
Voltage rating
250 V AC
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC175-20232
Through-feed, single-gang design with a 3/4" trade size simplifies wiring and reduces field labor while ensuring reliable, code-compliant connections in confined spaces. This translates to faster installations, lower commissioning time, and improved first-pass inspections in hazardous locations. The robust two-wire, three-pole configuration supports essential control and power circuits, enabling safer energized equipment startups in petrochemical and process industries. Copper-free aluminum housing delivers corrosion resistance and lighter weight, reducing handling difficulties and long-term maintenance costs in damp or outdoor installations. The 20A, 250V AC rating covers common industrial loads, minimizing the need for parallel devices and enabling tighter panel layouts with fewer interruptions. NEC/CEC compliance and hazardous area classifications, coupled with NEMA 3 and 3R ratings, provide regulatory confidence and reduced downtime due to weather or contamination ingress. This receptacle’s rugged construction is well-suited for retrofits and new builds alike, offering predictable performance in harsh environments while maintaining compatibility with standard back boxes and enclosure footprints for efficient installations.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC175-20232
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC175-20232?
Enquire Now
FAQs
CFSC175-20232 is designed for single-gang mounting with a 3/4 inch trade size and through-feed wiring. It uses a two-wire, three-pole configuration and fits common back boxes used in industrial panels. For retrofits, verify enclosure footprint and ensure the mounting pattern aligns with standard single-gang boxes to minimize modification time and avoid clearance issues.
The unit is rated for 20A at 250V AC and constructed from copper-free aluminum. It employs a through-feed configuration with two wires and three poles, suitable for typical industrial receptacle circuits. This combination supports reliable operation for motors, controls, and other heavy-duty equipment while maintaining compact form-factor in hazardous locations.
Yes. The PowerGard receptacle assembly is certified for Hazardous/Classified Locations with NEC/CEC standards and rated for Class I, Division 1. This makes it appropriate for environments with flammable gases or vapors, where explosion-proof performance and robust protection are required to prevent ignition sources.
It adheres to NEC/CEC standards and carries hazardous location classifications, including Class I, Division 1; Class II, Division 1; and Class III. NEMA ratings are 3 and 3R, which provide weather and ingress protection. This combination supports compliance in oil, gas, mining, and chemical processing facilities, reducing risk during audits and inspections.
Copper-free aluminum resists corrosion in harsh environments, extending service life and reducing maintenance cycles. The through-feed, single-gang design minimizes installation time and potential wiring errors, lowering labor costs. Its rugged construction and regulatory-compliant design reduce downtime and support longer intervals between replacements in hazardous-location applications.
