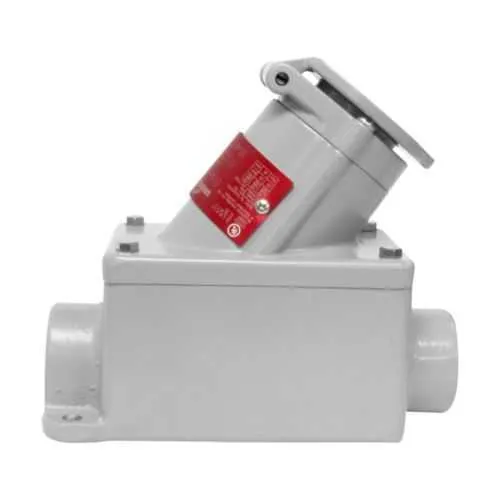

Eaton CFSC175-20232-M15 PowerGard Receptacle Assembly - Hazardous Locations

Part Number: CFSC175-20232-M15
CFSC175-20232-M15
Manufacturer
Eaton Crouse-Hinds
Part number
CFSC175-20232-M15
Category

Quick Summary

PowerGard receptacle assembly from Eaton Crouse-Hinds delivers rugged, compliant power in hazardous locations for industrial enclosures. Engineers face downtime and wiring errors when installing in explosive atmospheres; this through-feed, single-gang design reduces both by simplifying connections and speeding mounting. The unit carries NEC/CEC compliance and hazardous-location ratings including Class I, Division 1; Class II, Division 1; and Class III, along with NEMA 3 and 3R protection, ensuring reliable performance in harsh environments. With a copper-free aluminum housing and a 3/4 inch trade size, it balances durability with ease of installation, delivering long-term corrosion resistance and predictable service life for critical facilities. This makes it suitable for power distribution in chemical plants, mining, and other hazardous-area applications where uptime matters.

Product Information

Extended Description

CFSC175-20232-M15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Through feed, 3/4", M15 model, 250 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC175-20232-M15
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276517486
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
3/4"
Amperage Rating
20A
Voltage rating
250 V AC
Material
Copper-free aluminum
Type
M15 model
PowerGard Explosionproof NEMA Locking Receptacles brochure PowerGard Explosionproof NEMA Locking Receptacles catalog page PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs) PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs) PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs) PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs) IF 1663 - PowerGard Receptacles Eaton Specification Sheet - CFSC175-20232-M15
Feature through-feed single-gang receptacle configuration → Business Impact reduces wiring complexity and installation time while improving reliability in tight control enclosures → Application ideal for 3/4" trade size, single-gang power distribution in hazardous locations. Feature copper-free aluminum housing → Business Impact delivers corrosion resistance and lower maintenance costs over the life of the installation → Application suitable for outdoor and harsh indoor environments where metal housing continues to perform. Feature 20A, 250V AC rating → Business Impact supports standard industrial loads with safe headroom and reduced transformer requirements → Application aligns with typical plant power circuits and equipment upgrades. Feature Two-wire, three-pole configuration → Business Impact simplifies interconnects and protects against miswiring, reducing startup risk → Application in PowerGard family installations within hazardous locations. Feature NEMA 3 and 3R protection; NEC/CEC compliance; Hazardous Location ratings (Class I Div 1, Class II Div 1, Class III) → Business Impact ensures regulatory adherence, faster approvals, and safer operation across plants → Application across chemical processing, mining, and other hazardous facilities. Feature dimensions 7.25 in L × 9 in H × 6.25 in W; weight 3.8 lb → Business Impact aids enclosure planning and supports robust mounting without excessive weight → Application for panel builds and through-feed distribution in compact spaces.

Get a Quick Quote for a Eaton Crouse-Hinds CFSC175-20232-M15

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds CFSC175-20232-M15? Enquire Now

FAQs

CFSC175-20232-M15 is a through-feed, single-gang receptacle compatible with two-wire, three-pole configurations and a 3/4" trade size. It supports 20A at 250V and uses a copper-free aluminum housing, making it suitable for PowerGard family deployments in hazardous locations. The design simplifies wiring runs and minimizes enclosure alterations, accelerating reliable installations in control panels and outdoor facilities.
The CFSC175-20232-M15 carries NEC/CEC compliance with hazardous-location ratings including Class I, Division 1; Class II, Division 1; and Class III, along with NEMA 3 and 3R protection. These specifications align with regulatory requirements for equipment used in hazardous environments, enabling safer operation and faster regulatory approvals for chemical plants, refineries, and mining applications.
The single-gang through-feed design reduces the number of housing penetrations and simplifies wiring routing within compact enclosures. This leads to faster installation, fewer potential miswirings, and improved reliability in harsh environments. It also aligns with common panel layouts, helping engineers plan spaces more efficiently and minimize downtime during upgrades or new builds.
Yes. The PowerGard CFSC175-20232-M15 meets Canadian certification expectations for receptacles used in hazardous locations, as evidenced by UL/Canadian certification reports associated with PowerGard devices. For engineers, this means streamlined approval processes when deploying across facilities that require compliance in North American markets, with continued support from Eaton’s documentation and installation guidelines.
Copper-free aluminum provides inherent corrosion resistance, reducing maintenance cycles and prolonging service life in aggressive environments. The material also offers a favorable strength-to-weight ratio, easing installation and handling. In practice, this translates to lower total cost of ownership due to reduced downtime, fewer part replacements, and dependable performance in wet or chemically active hazardous locations.
