PowerGard Receptacle - CFSC210-2023 - Hazardous Locations
Part Number: CFSC210-2023
Quick Summary
PowerGard Receptacle assemblies provide rugged, safe electrical connections for hazardous locations in industrial facilities. Maintenance and operations teams often face equipment that fails in harsh environments, causing downtime and risk. This product supports NEC/CEC compliance for hazardous locations, with NEC Class I, Division 1, Class II, Division 1, and Class III ratings and NEMA 3/3R protection. Built with copper-free aluminum and a two-gang through-feed design at a 1 inch trade size, it enables faster installation, improved durability, and lower total cost of ownership. With robust performance in oil, gas, chemical, and heavy manufacturing settings, it helps plants stay compliant while keeping downtime to a minimum.
Product Information
Extended Description

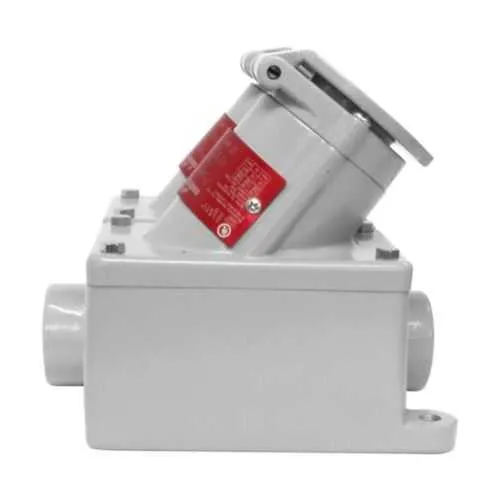

CFSC210-2023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Through feed, 1", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC210-2023
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276357921
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
1"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC210-2023
Copper-free aluminum construction provides excellent corrosion resistance and reduced weight, extending service life in harsh environments while lowering maintenance costs for hazardous-location installations. The two-gang through-feed configuration with a 1 inch trade size simplifies wiring and reduces field labor, speeding turnarounds and enhancing overall project efficiency in constrained spaces. A 20A, 125VAC amperage/voltage rating supports common industrial loads, enabling reliable operation for control circuits and equipment power without overdesign. The through-feed style aligns with standard installation practices, improving compatibility with existing power distribution layouts and reducing retrofit complexity. NEC/CEC compliance for Class I Division 1, Class II Division 1, and Class III ratings combined with NEMA 3 and 3R protection delivers regulatory confidence and safer operation in demanding environments like refineries and chemical plants. Outdoor and wash-down areas benefit from the NEMA-rated enclosure, providing weather and ingress protection that minimizes failure points and costly downtime.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC210-2023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC210-2023?
Enquire Now
FAQs
CFSC210-2023 requires secure mounting in approved enclosures for hazardous locations and must be wired per NEC Class I Division 1/II and Class II/III guidelines. The copper-free aluminum body and 1" trade size support straightforward through-feed installation, with attention to proper bonding, sealing, and conductor sizing to maintain NEMA 3/3R integrity in outdoor or wash-down environments.
The unit is rated at 20A and 125 VAC, suitable for typical control circuits in industrial settings. Certifications include NEC/CEC compliance for hazardous locations with Class I Division 1, Class II Division 1, and Class III ratings, along with NEMA 3 and 3R enclosure protection, ensuring performance in demanding environments.
CFSC210-2023 excels in oil and gas facilities, chemical processing plants, and heavy manufacturing where hazardous/classified locations are present. The two-gang through-feed design accommodates compact layouts, while the copper-free aluminum construction provides resistance to corrosive atmospheres, reducing downtime and maintenance in mission-critical power distribution applications.
Compliance is anchored in NEC/CEC standards for hazardous locations, including NEC Class I Division 1, Class II Division 1, and Class III, with NEMA 3 and 3R enclosure protection. Area classification for hazardous/classified locations is also recognized, helping facilities meet regulatory requirements during audits and inspections.
Benefits include reduced maintenance cycles due to copper-free aluminum's corrosion resistance, longer service life in challenging environments, and faster installation from the through-feed two-gang design. These factors translate to lower total cost of ownership, less downtime, and improved reliability for critical power distribution in hazardous-area facilities.
