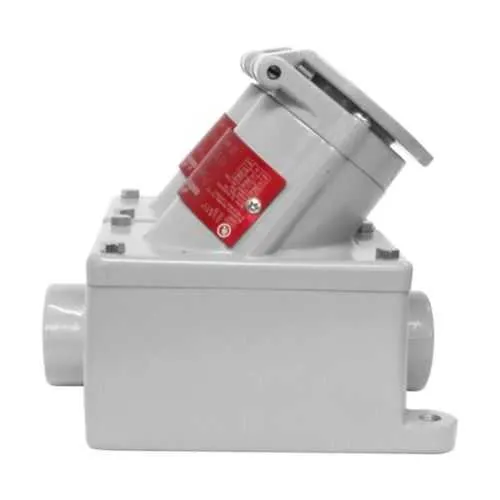

Eaton Crouse-Hinds CFSC250-2023 PowerGard Receptacle Assembly - Hazardous Locations
Part Number: CFSC250-2023
Quick Summary
PowerGard receptacle assembly CFSC250-2023 delivers rugged, reliable electrical connections for hazardous-location enclosures in industrial facilities. Operators often struggle with corroded outlets and non-compliant products in exposed zones, leading to downtime and safety concerns. This unit carries NEC/CEC certifications with Class I, Division 1; Class II, Division 1; Class III ratings, plus NEMA 3/3R protection, ensuring robust performance in demanding environments. By combining through-feed capability with a copper-free aluminum body, it delivers long-term reliability, reduced maintenance, and compliance for industrial power distribution. The result is a safer, more efficient, and cost-effective solution for critical equipment power in hazardous areas, with installation and ongoing support tailored to engineering teams and procurement needs.
Product Information
Extended Description
CFSC250-2023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Through feed, 1/2", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC250-2023
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276357907
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
1/2"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Crouse-Hinds ENP Plugs)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC250-2023
Feature: Two-gang through-feed configuration with 1/2" trade size. Benefit: Simplifies wiring runs and reduces installation time while maintaining a compact footprint in hazardous locations. Application: Control panels and remote power drops in refinery or chemical processing environments. Feature: Copper-free aluminum construction. Benefit: Improved corrosion resistance and lighter weight, translating to lower lifecycle costs and easier maintenance in harsh atmospheres. Application: Outdoor cabinets and wash-down areas where chemical exposure or humidity is common. Feature: 20A, 125 Vac rating. Benefit: Standardized power delivery for equipment and controls, enabling predictable startup and compatibility with existing infrastructure. Application: Pumps, motors, and instrumentation circuits in hazardous zones. Feature: NEC/CEC compliance with Class I, Division 1; Class II, Division 1; Class III ratings. Benefit: Regulatory assurance that the receptacle assembly meets stringent safety requirements, reducing risk and speeding approvals. Application: Projects in oil, gas, mining, and manufacturing facilities requiring rigorous compliance. Feature: NEMA 3 and 3R protection. Benefit: Weather and impact resistance for indoor and outdoor installations, lowering the need for additional enclosures. Application: Outdoor service entrances and exposed industrial environments. Feature: Through-feed, two-wire, three-pole configuration. Benefit: Efficient wiring topology that minimizes backbox clutter and enhances fault isolation. Application: Complex power distribution schemes in hazardous-area panels. Feature: Physical footprint 7 in L x 7 in W x 10 in H with a 6.44 lb mass. Benefit: Manageable size and weight for installation in tight spaces while maintaining mechanical robustness. Application: retrofit and new-build installations where space is at a premium. These features collectively support faster installation, improved uptime, and sustained compliance across industrial facilities that demand durable, safe power connections in hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC250-2023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC250-2023?
Enquire Now
FAQs
Installation should follow the NEC/CEC guidelines for Class I, Division 1 environments. Begin by verifying enclosure ratings, securing the two-gang, through-feed receptacle to a compatible back box, wiring the 1/2" trade size conduits, and ensuring proper grounding. Use certified ENP plug interfaces where applicable and follow UL instructions for power exposure areas to maintain compliance and safety.
The unit is rated for 20A at 125 VAC, two-wire, three-pole configuration, with a copper-free aluminum housing. It supports a 1/2" trade size, and its design is suited for hazardous/classified locations with NEC/CEC compliance and NEMA 3/3R protection for indoor or outdoor use.
Yes. PowerGard receptacles and back boxes are certified for use with Crouse-Hinds ENP plugs, and UL certification references confirm compatibility. When pairing with ENP plugs, ensure all components are UL-listed for hazardous locations and follow installation instructions to maintain system integrity.
CFSC250-2023 carries NEC/CEC standards with NEC hazardous ratings Class I, Division 1; Class II, Division 1; Class III, area classification Hazardous/Classified Locations, and a NEMA 3 and 3R rating for weather and dust protection, ensuring compliance across hazardous industrial environments.
The two-gang through-feed design occupies a 7 by 7 by 10 inch footprint and weighs about 6.44 lb, which eases retrofit and new-build layouts. Copper-free aluminum reduces corrosion-related maintenance, and the robust enclosure minimizes downtime in demanding environments, providing a long-term, reliable power solution for hazardous-area equipment.
