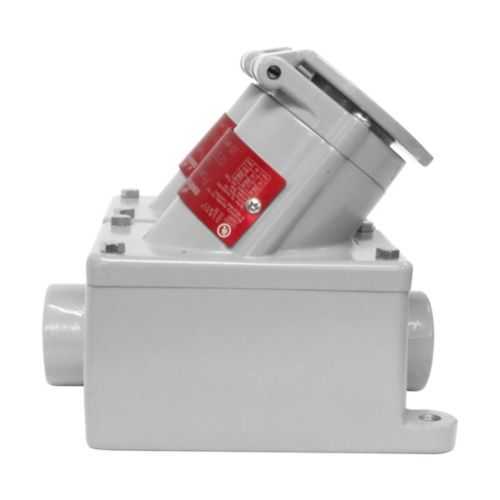

CFSC275-1523-M15 PowerGard Receptacle Assembly - Hazardous
Part Number: CFSC275-1523-M15
Manufacturer
Eaton Crouse-Hinds
Part number
CFSC275-1523-M15
Category
Quick Summary
CFSC275-1523-M15 PowerGard receptacle assembly provides reliable through-feed, two-wire, three-pole electrical connections for hazardous locations. In demanding industrial environments, corrosion resistance and compliance with hazardous-location codes can complicate installation and maintenance. This model carries NEC/CEC compliance, Class I, Division 1, Class II, Division 1, and Class III ratings, plus NEMA 3 and 3R protections, supporting safe operation in hazardous areas. Designed for two-gang through-feed installations with a 3/4 inch trade size and a 125 Vac rating, it reduces wiring complexity and downtime while improving safety for maintenance crews and downstream equipment. Copper-free aluminum construction adds durability while helping to meet environmental and regulatory requirements, enabling faster, compliant deployments across critical processes.
Product Information
Extended Description
CFSC275-1523-M15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 15A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Through feed, 3/4", M15 model, 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFSC275-1523-M15
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276516106
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Through feed
Configuration
Two-wire, three-pole
Trade size
3/4"
Amperage Rating
15A
Voltage rating
125 Vac
Material
Copper-free aluminum
Type
M15 model
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFSC275-1523-M15
The PowerGard CFSC275-1523-M15 leverages through-feed wiring to streamline field connections and reduce install time, which directly lowers labor costs and minimizes risks of splice failures in control panels. The copper-free aluminum housing resists corrosion in harsh environments, extending service life in chemical plants, offshore facilities, and mining operations. The two-wire, three-pole configuration supports standard 125 Vac circuits with a 15A rating, ensuring compatibility with common equipment while simplifying inventory management and maintenance planning. Its two-gang, 3/4 inch trade size footprint enables clean, organized panel layouts and easy retrofits in crowded enclosures. Certifications including NEC/CEC and NEMA 3 3R provide regulatory confidence and reliable protection against dust and moisture, reducing commissioning time and post-installation risk. Documentation such as IF 1663 and PowerGard literature support faster procurement and installation.
Get a Quick Quote for a Eaton Crouse-Hinds CFSC275-1523-M15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFSC275-1523-M15?
Enquire Now
FAQs
Yes. The CFSC275-1523-M15 is designed for two-gang, through-feed wiring with a 3/4 inch conduit size, 15A capacity, and a 125 Vac rating, making it suitable for hazardous areas while simplifying field installation.
It carries NEC/CEC compliance, Class I Division 1, Class II Division 1, Class III ratings, and NEMA 3 3R protection, supporting safe operation in hazardous locations and weather-resistant performance in suitable enclosures.
Yes. With explosion-protected construction, copper-free aluminum housing, and hazardous-location ratings, it is well suited for chemical processing and oil and gas facilities, meeting safety and reliability requirements in aggressive environments.
Installation is supported by Eaton IF 1663 instruction sheets and PowerGard literature, including data sheets and Canadian certification references, ensuring proper mounting, wiring, and compliance during installation.
The receptacle provides reliable power connections with reduced wiring time, longer service life due to corrosion-resistant copper-free aluminum, and certified compliance, resulting in lower maintenance costs and reduced downtime across critical processes.
