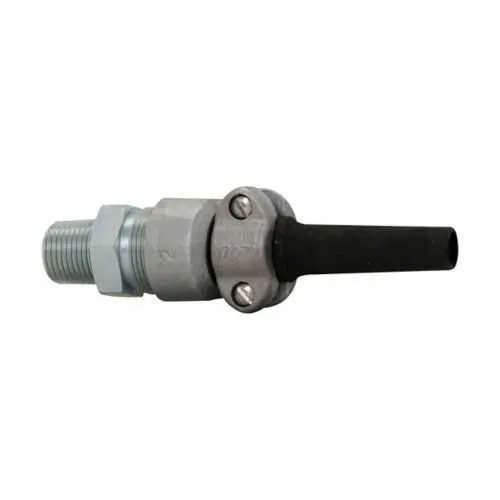

Eaton Crouse-Hinds CGBS1013 Portable Cord Connector - Explosion-Proof
Part Number: CGBS1013
Quick Summary
CGBS1013 portable cord connector by Eaton Crouse-Hinds delivers explosion-proof cord termination for hazardous locations in industrial plants. Maintenance teams struggle with secure, compliant connectors that withstand dust, moisture, and frequent cable changes in harsh environments. It carries NEC/CEC compliance for Hazardous/Classified Locations with Class I, Division 1; Class II, Division 1; Class II, Division 2; and Class III ratings, ensuring safe operation. The robust steel body, non-armoured cable compatibility, and 1/2" NPT gland translate to faster installs, reduced downtime, and longer service life, while meeting stringent industry regulations. For projects demanding reliable termination and regulatory peace of mind, this connector pairs well with non-armoured cables and standard conduit systems, delivering a proven balance of performance and cost efficiency.
Product Information
Extended Description
CGBS1013 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGBS portable cord connector, Non-armoured cable, Steel, Outer sheath min/max: 0.312-0.437", Explosionproof, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGBS portable cord connector
Catalog Number
CGBS1013
Product Length/Depth
5.25 in
Product Height
0.44 in
Product Width
0.44 in
Product Weight
0.48 lb
UPC
782274141114
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class II, Division 2 Class III
Protection type
Explosion-proof
Cable type
Non-armoured
Gland type
Portable cord connector
Thread Size
1/2"
Thread type
NPT
Outer sheath (min/max)
0.312-0.437"
Material
Steel
Crouse-Hinds series CGBS catalog page
IF 1749 - CGBS Cord Connectors
Eaton Specification Sheet - CGBS1013
Feature → Business Impact → Application: Explosion-proof protection prevents ignition in hazardous environments, reducing risk of process upsets and outages; this accelerates safe installation in oil and gas facilities and chemical plants. Application: Use in Class I Division 1 settings to maintain compliance while enabling rapid cord terminations. Feature → Business Impact → Application: 1/2" NPT thread and portable cord connector gland simplify field mounting and integration with common conduits; customers realize faster commissioning and reduced labor costs on site. Application: Ideal for retrofit projects and new builds in power, mining, and refining operations requiring sturdy, modular fittings. Feature → Business Impact → Application: Steel housing with a defined outer sheath range (0.312–0.437") supports robust mechanical protection against abrasion and cable movement; delivers longer service life in rugged environments. Application: Suitable for long-term wear in conveyor systems and material handling in heavy industry. Feature → Business Impact → Application: Non-armoured cable compatibility lowers cable costs and enables quicker terminations without armour removal; reduces inventory complexity. Application: Best fits installations where flexible, economical cord solutions are preferred in hazardous locations. Feature → Business Impact → Application: NEC/CEC certifications and hazardous location ratings (Class I, Division 1; Class II, Division 1; Class II, Division 2; Class III) provide regulatory confidence and risk reduction; customers avoid non-compliance penalties and project delays. Application: Required for facilities operating under strict safety regimes in oil, gas, chemical, and mineral processing. Feature → Business Impact → Application: Catalogue and installation resources including IF 1749 instruction sheets and specification sheets streamline procurement and training, improving first-time assembly success. Application: Field teams benefit from standardized procedures for CGBS connectors in plant expansions and maintenance outages.
Get a Quick Quote for a Eaton Crouse-Hinds CGBS1013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGBS1013?
Enquire Now
FAQs
The CGBS1013 is designed for use in hazardous and classified locations with a 1/2" NPT threaded gland and steel body. Installers should ensure the outer sheath is within the 0.312–0.437" range for non-armoured cable, follow NEC/CEC compliance, and reference IF 1749 installation sheets to achieve a correct, safe termination. This reduces ignition risk and supports regulatory conformity in Class I, II, and III environments.
A 1/2" NPT thread aligns with standard conduit and gland fittings used in many industrial enclosures. This compatibility minimizes the need for adapters, speeds up commissioning, and lowers labor costs. For hazardous locations, pairing with appropriate conduit fittings ensures a robust seal and maintained explosion-proof integrity during operational cycles.
Yes. The CGBS1013 is specifically rated for Hazardous/Classified Locations with NEC classifications including Class I Division 1, Class II Division 1, Class II Division 2, and Class III. Its explosion-proof design and non-armoured cable compatibility make it well-suited for oil, gas, and chemical processing environments where secure, compliant cord connections are critical.
The CGBS1013 carries NEC/CEC standards for Hazardous Locations and Class I, II, and III ratings (Division 1 and 2 as applicable). These certifications confirm suitability for hazardous environments, reduce regulatory risk, and support safe operation across multiple industrial sectors, including mining, refining, and petrochemicals.
Investing in the CGBS1013 yields ROI through faster installation times due to standard 1/2" NPT fittings, reduced maintenance with durable steel construction, and lower risk of non-compliance penalties in hazardous areas. It also simplifies spare part inventories by using common non-armoured cable terminations and aligning with NEC/CEC requirements.
