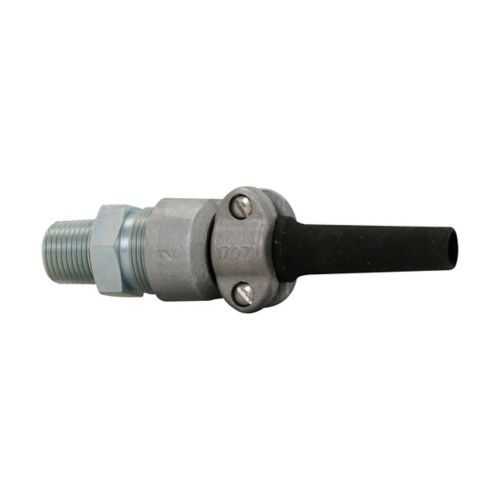

Eaton CGBS2013 Portable Cord Connector - Explosion-proof
Part Number: CGBS2013
Quick Summary
The Eaton CGBS2013 portable cord connector is a rugged, quick-connect solution for hazardous-location wiring. Maintenance teams struggle with unreliable termination and safety in explosion-prone environments. It meets NEC/CEC standards and Class I, II, and III hazardous ratings, making it suitable for Hazardous/Classified Locations. This connector supports faster installs and ongoing compliance, while leveraging steel construction and 3/4 in NPT threads. Designed for non-armoured cables, it balances strength and ease of installation in confined spaces. With a 5.25 in length and a compact 0.44 in profile, it fits tight spaces without compromising protection.
Product Information
Extended Description
CGBS2013 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGBS portable cord connector, Non-armoured cable, Steel, Outer sheath min/max: 0.312-0.437", Explosionproof, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGBS portable cord connector
Catalog Number
CGBS2013
Product Length/Depth
5.25 in
Product Height
0.44 in
Product Width
0.44 in
Product Weight
0.9 lb
UPC
782274142401
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class II, Division 2 Class III
Protection type
Explosion-proof
Cable type
Non-armoured
Gland type
Portable cord connector
Thread Size
3/4"
Thread type
NPT
Outer sheath (min/max)
0.312-0.437"
Material
Steel
Crouse-Hinds series CGBS catalog page
IF 1749 - CGBS Cord Connectors
Eaton Specification Sheet - CGBS2013
Explosion-proof protection type and steel construction provide a rugged enclosure that enhances safety and reduces risk in hazardous environments, translating to lower insurance costs and fewer shutdowns. Compatibility with non-armoured cables and a 3/4 in NPT gland simplifies field termination, cutting installation time and minimizing miswiring or leakage concerns. NEC/CEC compliance and explicit Class I Division 1, Class II Division 1 and 2, and Class III ratings offer clear regulatory alignment for refinery, chemical processing, and mining facilities, supporting audit-ready documentation and safer performance. The product’s portable design and modest weight (0.9 lb) enable rapid relocation and flexible layouts, improving maintenance efficiency while conserving cabinet space and inventory. Industry-standard dimensions (5.25 in length, 0.44 in width/height) ensure predictable compatibility with existing fittings and conduits. This connector is well-suited for ongoing service in high-temperature or corrosive environments, reducing total cost of ownership through durability and reduced downtime.
Get a Quick Quote for a Eaton Crouse-Hinds CGBS2013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGBS2013?
Enquire Now
FAQs
Yes, the CGBS2013 is designed for non-armoured cables and uses a 3/4" NPT gland. It accommodates standard non-armoured conductors used in hazardous-location installations, enabling straightforward field terminations. For best results, verify cable OD falls within the 0.312" to 0.437" outer sheath range and consult the installation sheet IF 1749 for step-by-step guidance.
The connector is explosion-proof and rated for hazardous locations per NEC/CEC. It supports Class I, Division 1, Class II, Division 1, and Class II, Division 2, as well as Class III environments, making it suitable for oil & gas, chemical plants, mining, and other high-risk settings. This ensures safe cord termination under demanding temperature and arc-initiating conditions.
Yes. The CGBS2013 is designed for hazardous/classified locations common in refineries and chemical processing plants. Its explosion-proof protection, steel construction, and non-armoured cable compatibility support reliable, code-compliant terminations in areas with exposure to flammable gases, vapors, or dust.
This connector complies with NEC/CEC standards and carries NEC hazardous ratings for Class I Division 1, Class II Division 1, Class II Division 2, and Class III. It is suitable for hazardous/classified locations, aligning with industry requirements for electrical fittings in such environments.
Maintenance benefits include robust steel construction that resists corrosion and impact, reducing replacement frequency. The sealed, explosion-proof design minimizes fault events and downtime, improving overall uptime. Quick field terminations and compatibility with common non-armoured cables lower labor costs during installation and service, delivering a favorable total cost of ownership over the product life cycle.
