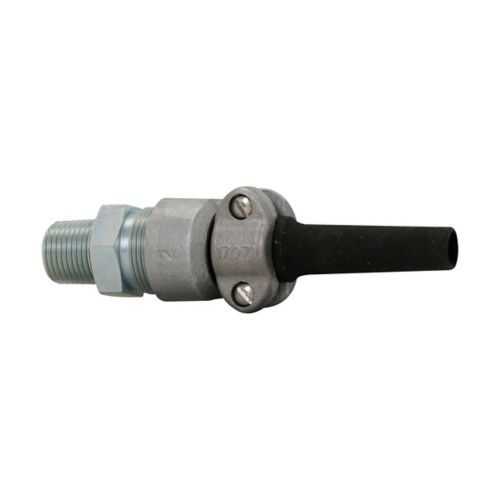

Eaton CGBS2014 Portable Cord Connector - Explosion-proof
Part Number: CGBS2014
Quick Summary
The CGBS portable cord connector from Eaton provides explosion-proof terminations for hazardous locations. In practice, teams face regulatory hurdles, supply chain delays, and risky field wiring when replacing damaged connectors. This unit carries NEC/CEC certifications with hazardous area classifications, including Class I, Division 1 and Class II, Division 1 and 2, and is designed for 3/4\" NPT threads. Its steel body and non-armoured cable compatibility deliver reliable, long-life performance in industrial automation enclosures, reducing downtime and installation costs. Engineers will appreciate consistent performance across temperature and vibration conditions, while procurement benefits from a standardized, readily available component. This combination supports faster one-person terminations and easier integration with existing wiring schemes.
Product Information
Extended Description
CGBS2014 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGBS portable cord connector, Non-armoured cable, Steel, Outer sheath min/max: 0.375-0.500", Explosionproof, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGBS portable cord connector
Catalog Number
CGBS2014
Product Length/Depth
5.25 in
Product Height
0.75 in
Product Width
0.75 in
Product Weight
0.45 lb
UPC
782274142500
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class II, Division 2 Class III
Protection type
Explosion-proof
Cable type
Non-armoured
Gland type
Portable cord connector
Thread Size
3/4"
Thread type
NPT
Outer sheath (min/max)
0.375-0.500"
Material
Steel
Crouse-Hinds series CGBS catalog page
IF 1749 - CGBS Cord Connectors
Eaton Specification Sheet - CGBS2014
Explosion-proof protection minimizes ignition risks in hazardous area environments. The CGBS2014 is a steel portable cord connector engineered to meet NEC/CEC standards and hazardous-location ratings, including Class I Division 1 and related classifications. This robust design supports reliable terminations in oil, gas, chemical processing, and other high-hazard processes, helping operators avoid costly shutdowns and regulatory penalties. Cable compatibility and sealing improve install speed and reduce field rework. It accepts non-armoured cables with an outer sheath in the 0.375–0.500 inch range and uses a 3/4" NPT gland for a tight, leak-free seal. That means fewer reseals and longer-term protection against moisture ingress. Rugged mechanical build enables long service life. The steel body resists impact, while the 3/4" NPT thread type simplifies integration with existing conduit systems and reduces the risk of misthreading during installations. Certifications and compliance deliver predictable procurement outcomes. NEC/CEC compliance and explicit hazardous-location ratings ensure your equipment meets regulatory requirements and supports safe interconnection with other Crouse-Hinds products in your safety system. Design and installation efficiency for field teams. The compact 5.25 inch length, 0.75 inch width and height, and 0.45 lb weight help technicians maneuver connectors in crowded panels, while standard dimensions support quick scoping and stock management.
Get a Quick Quote for a Eaton Crouse-Hinds CGBS2014
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGBS2014?
Enquire Now
FAQs
The connector accepts non-armoured cables with an outer sheath in the 0.375–0.500 inch range and uses a 3/4" NPT gland for a secure seal, ensuring compatible terminations in harsh environments.
It carries NEC/CEC compliance with hazardous-location ratings, including Class I Division 1; Class II Division 1 and 2; and Class III, supporting safe connections in hazardous areas.
Commonly employed in hazardous locations within oil and gas, chemical processing, mining, and industrial automation enclosures requiring explosion-proof cord connectors.
The 3/4" NPT thread aligns with standard conduit fittings, delivering a secure seal and straightforward mounting in existing panels or cables, reducing installation time.
Length 5.25 in, height 0.75 in, width 0.75 in, weight 0.45 lb; a compact profile that simplifies panel packing and helps with space planning in crowded environments.
