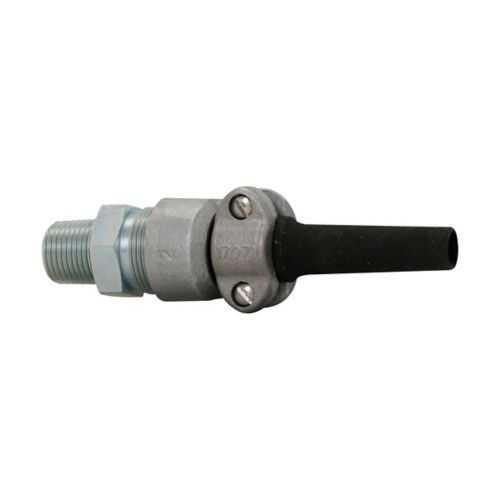

Eaton Crouse-Hinds CGBS3015 Cord Connector - Explosionproof
Part Number: CGBS3015
Quick Summary
The Eaton Crouse-Hinds CGBS3015 portable cord connector is designed for hazardous locations where quick, secure cord terminations are essential. In field installations, moisture ingress, miswiring, and improper sealing can drive maintenance costs and downtime. This connector meets NEC/CEC requirements and hazardous-location ratings, including Class I Division 1, Class II Division 1 and 2, and Class III protections, providing regulatory assurance. Its steel body and non-armoured cable compatibility offer durable, cost-effective solutions for harsh environments. By streamlining field wiring and reducing setup time, it delivers predictable performance, safer operations, and a lower total cost of ownership for industrial facilities.
Product Information
Extended Description
CGBS3015 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGBS portable cord connector, Non-armoured cable, Steel, Outer sheath min/max: 0.500-0.625", Explosionproof, 1" NPT
Product Name
Eaton Crouse-Hinds series CGBS portable cord connector
Catalog Number
CGBS3015
Product Length/Depth
2.88 in
Product Height
0.63 in
Product Width
0.63 in
Product Weight
0.61 lb
UPC
782274142609
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class II, Division 2 Class III
Protection type
Explosion-proof
Cable type
Non-armoured
Gland type
Portable cord connector
Thread Size
1"
Thread type
NPT
Outer sheath (min/max)
0.500-0.625"
Material
Steel
Crouse-Hinds series CGBS catalog page
IF 1749 - CGBS Cord Connectors
Eaton Specification Sheet - CGBS3015
Explosion-proof steel housing enhances safety in hazardous environments. This design reduces ignition risk and keeps equipment within NEC/CEC compliance, even during rough handling in process plants. It is well suited for Class I Division 1 and related classes, where portable cord connectors must survive vibration and dust. 1 inch NPT threaded gland enables secure mounting to standard enclosures. The straightforward gland connection minimizes installation time and avoids additional adapters, speeding up panel wiring and reducing field errors. This is particularly valuable in retrofit projects and new builds where tight schedules matter. Non-armoured cable compatibility reduces inventory and installation costs. By eliminating armour requirements, technicians can terminate cords quickly while maintaining sealing integrity. This is beneficial for control panels and motor control centers that use readily available non-armoured cables. Compact footprint with a length of 2.88 in and a width and height of 0.63 in fits into tight enclosures and along equipment frames; steel construction provides durability in harsh environments. NEC/CEC compliance and explicit area classification support procurement and regulatory approval for North American facilities. Support resources, including installation instructions and catalog pages, help ensure correct assembly and seal integrity, reducing risk of miswiring and rework. Steel weight of 0.61 lb offers a balance of ruggedness and portability for field service and maintenance workflows.
Get a Quick Quote for a Eaton Crouse-Hinds CGBS3015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGBS3015?
Enquire Now
FAQs
CGBS3015 is designed for non-armoured cables and uses a 1" NPT gland, simplifying field termination in hazardous locations. It supports NEC/CEC compliance and Class I Division 1, Class II Division 1/2, and Class III ratings, making it suitable for oil and gas, chemical, and mining environments. For best results, follow the IF 1749 installation guide and reference the CGBS catalog page during setup.
Key specs include a 2.88 in product length, 0.63 in height and width, and a weight of 0.61 lb. It is manufactured in steel, with a 1" NPT thread and a non-armoured cable compatibility. Outer sheath range is 0.500–0.625 in. These dimensions support installation in tight spaces and rugged field conditions typical of hazardous-area equipment.
Yes. CGBS3015 carries NEC/CEC compliance and is rated for Hazardous/Classified Locations, including Class I Division 1, Class II Division 1 and 2, and Class III. This makes it suitable for high-risk environments where explosion-proof protection is required and regulatory acceptance is essential.
Eaton provides installation guidance and datasheets to ensure proper assembly and sealing. Relevant resources include the IF 1749 CGBS Cord Connectors instruction sheet and the Eaton Specification Sheet for CGBS3015, plus the Crouse-Hinds catalog page. Following these documents helps minimize miswiring and maintenance downtime.
By delivering explosion-proof protection, reliable sealing for non-armoured cables, and a straightforward 1" NPT gland installation, CGBS3015 reduces downtime from leaks or failures and lowers total cost of ownership. The robust steel housing withstands harsh environments, while NEC/CEC compliance simplifies procurement and regulatory approvals for North American projects.
