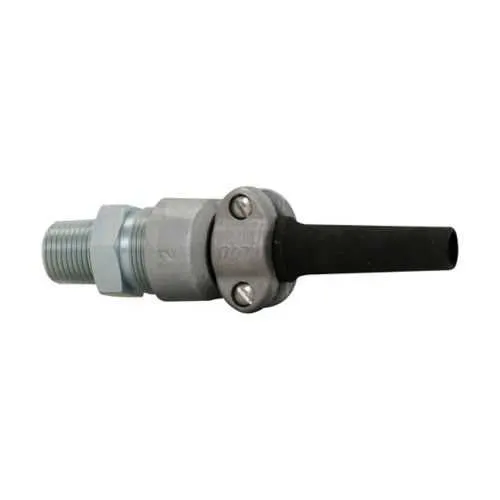

Eaton CGBS3015K portable cord connector - Explosion-proof
Part Number: CGBS3015K
Quick Summary
The CGBS3015K portable cord connector is a rugged, explosion-proof gland designed for non-armoured cables in hazardous locations. Engineers often wrestle with costly rework and compliance gaps when terminating portable equipment in harsh environments. This solution carries NEC/CEC standards visibility and explicit Class I, Division 1 ratings, with additional Class II and III coverage for broader applicability. The steel housing, 1" NPT thread, and wire-mesh grip provide a durable, vibration-resistant termination that reduces maintenance and rework, while enabling fast field installations. For workflow efficiency, it integrates with standard gland configurations and supports reliable, code-compliant connections in control panels, motors, and portable machinery in hazardous areas.
Product Information
Extended Description
CGBS3015K Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGBS portable cord connector, Non-armoured cable, Steel, Outer sheath min/max: 0.500-0.625", Explosionproof, Wire mesh grip, 1" NPT
Product Name
Eaton Crouse-Hinds series CGBS portable cord connector
Catalog Number
CGBS3015K
Product Length/Depth
2.88 in
Product Height
0.63 in
Product Width
0.63 in
Product Weight
0.6 lb
UPC
662276479265
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class II, Division 2 Class III
Protection type
Explosion-proof
Cable type
Non-armoured
Gland type
Portable cord connector
Thread Size
1"
Thread type
NPT
Outer sheath (min/max)
0.500-0.625"
Material
Steel
Special features
Wire mesh grip
Crouse-Hinds series CGBS catalog page
IF 1749 - CGBS Cord Connectors
Eaton Specification Sheet - CGBS3015K
Feature → Business Impact → Application: Explosion-proof steel housing provides robust protection in hazardous locations, reducing risk of ignition and improving worker safety while complying with NEC/CEC requirements; Application in Class I/II/III environments supports durable terminations for portable equipment. Feature → Business Impact → Application: 1" NPT threaded gland simplifies integration into standard enclosures and conduit runs, accelerating field installations and reducing commissioning time; Application in control panels and portable machines in industrial plants. Feature → Business Impact → Application: Wire mesh grip secures flexible cords against pull-out and vibration, lowering maintenance costs and downtime in high-use areas; Application in motors and power distribution assemblies. Feature → Business Impact → Application: Non-armoured cable compatibility lowers overall installation cost and simplifies termination procedures, especially in older facilities or budget-conscious projects; Application in temporary or portable equipment setups. Feature → Business Impact → Application: Outer sheath range 0.500–0.625" and steel construction ensure long-term durability in dirty, wet, or vibrating environments, supporting extended service intervals and total-cost-of-ownership benefits; Application in outdoor or plant-floor installations. Feature → Business Impact → Application: NEC/CEC certification and Hazardous/Classified Locations ratings provide compliance assurance and risk mitigation for industrial projects, enabling faster audits and safer handovers to operations teams.
Get a Quick Quote for a Eaton Crouse-Hinds CGBS3015K
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGBS3015K?
Enquire Now
FAQs
Use standard conduit fittings, torque to Eaton installation guidelines, and ensure the cord entry remains sealed. Refer to IF 1749 instruction sheets for CGBS connectors to maintain explosion-proof integrity during field termination.
The connector is rated for NEC/CEC compliance and Hazardous/Classified Locations, including Class I, Division 1, Class II, Division 1, and Class II, Division 2, plus Class III, ensuring safe operation in hazardous environments.
Catalog number CGBS3015K, length 2.88 in, height 0.63 in, width 0.63 in, weight 0.6 lb, thread size 1", thread type NPT, outer sheath 0.500–0.625", material steel, cable type non-armoured.
Yes, the CGBS3015K is specified for non-armoured cable, offering a cost-effective and straightforward termination option for many portable equipment applications in hazardous locations.
Access the Crouse-Hinds CGBS catalog page, IF 1749 installation sheet, and the Eaton datasheet for CGBS3015K from the provided downloads to ensure proper installation and complete technical guidance.
