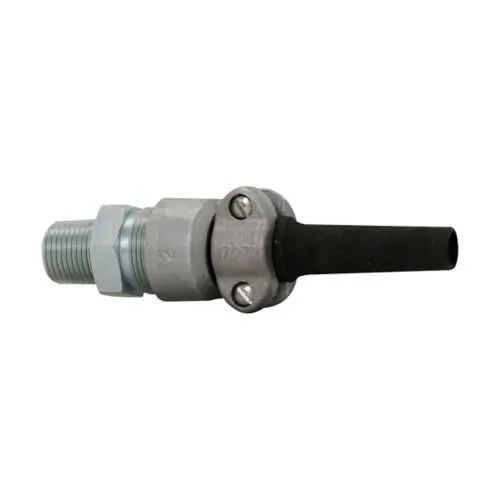

Eaton CGBS4017 Portable Cord Connector - Explosion-Proof
Part Number: CGBS4017
Quick Summary
The CGBS4017 portable cord connector from Eaton Crouse-Hinds provides a rugged, explosion-proof entry point for non-armoured cables in hazardous locations. Electrical teams frequently wrestle with maintaining enclosure integrity and preventing ignition risks in Class I, Division 1 environments when connecting portable cords. This design meets NEC/CEC requirements and Hazardous Locations classifications, supporting Class II, Division 1 and Class III where applicable, ensuring compliance in demanding plants. With its steel housing and 1-1/4 inch NPT gland, it delivers reliable sealing and easier installation, helping reduce downtime and maintenance costs. These features support safer, faster field wiring and scalable deployment across multiple facilities.
Product Information
Extended Description
CGBS4017 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGBS portable cord connector, Non-armoured cable, Steel, Outer sheath min/max: 0.750-0.875", Explosionproof, 1-1/4" NPT
Product Name
Eaton Crouse-Hinds series CGBS portable cord connector
Catalog Number
CGBS4017
Product Length/Depth
2.81 in
Product Height
1.25 in
Product Width
1.25 in
Product Weight
0.72 lb
UPC
782274142807
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class II, Division 2 Class III
Protection type
Explosion-proof
Cable type
Non-armoured
Gland type
Portable cord connector
Thread Size
1-1/4"
Thread type
NPT
Outer sheath (min/max)
0.750-0.875"
Material
Steel
Crouse-Hinds series CGBS catalog page
IF 1749 - CGBS Cord Connectors
Eaton Specification Sheet - CGBS4017
Explosion-proof construction reduces ignition risk in hazardous locations, delivering enhanced safety and regulatory compliance for petrochemical, mining, and chemical processing facilities. Business impact: lower incident potential and minimized downtime due to compliant, rugged hardware; application: retrofit or new installation in Class I/Division 1 environments. The 1-1/4 inch NPT gland enables standardization with common conduit fittings, resulting in faster, error-free field installs and fewer modification steps at the panel, which translates to reduced labor costs and project timelines. The non-armoured cable compatibility adds flexibility for OEMs and contractors dealing with varied power cords, enabling quicker selection and procurement. Steel housing provides robust mechanical protection against impact and harsh ambient conditions, improving long-term reliability and lowering replacement frequency in demanding plants. Outer sheath range of 0.750–0.875 inches accommodates multiple cord diameters, simplifying stocking and reducing part diversity on job sites. Certifications and NEC/CEC compliance ensure alignment with regulatory requirements, minimizing audit questions and expediting approvals. This combination supports scalable deployment and a clear ROI for facilities prioritizing safety and uptime.
Get a Quick Quote for a Eaton Crouse-Hinds CGBS4017
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGBS4017?
Enquire Now
FAQs
Yes. The CGBS4017 is rated for Explosion-Proof protection in Hazardous/Classified Locations, including NEC Class I, Division 1 and related locations. Its steel housing and sealed gland design help prevent ignition sources at the cord entry, while the 1-1/4" NPT gland aligns with standard conduit fittings to support compliant, secure installations.
Key specs include a 1-1/4" NPT thread size and a non-armoured cable compatibility. The outer sheath accommodates 0.750–0.875 inches, with a compact footprint of 2.81 inches in length and 1.25 inches in both height and width. These dimensions enable reliable sealing and straightforward integration with common non-armoured portable cords.
The connector is ideal for hazardous-location wiring in oil, gas, chemical processing, mining, and other facilities requiring explosion-proof cord entry. Its rugged steel construction, compact gland, and compatibility with standard 1-1/4" NPT fittings make it well-suited for portable cord connections in plant floors, equipment and temporary installations within Class I/Division 1 zones.
The CGBS4017 carries NEC/CEC compliance and Hazardous/Classified Locations ratings, including Class I, Division 1, Class II, Division 1, Class II, Division 2, and Class III. Area classification and protection type are explicitly addressed as explosion-proof, ensuring audits and commissioning activities align with regulatory requirements.
The explosion-proof design and robust steel housing reduce ignition risk and equipment downtime, lowering maintenance costs over time. Standard 1-1/4" NPT gland compatibility simplifies stocking and replacements, speeding field service. Overall, the CGBS4017 supports safer, faster installations and predictable budgeting for projects in hazardous-area facilities.
