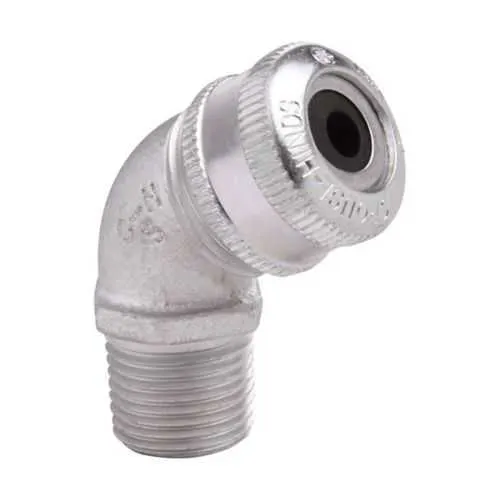

Eaton CGD192 CableGland-NEMA4
Part Number: CGD192
Quick Summary
CGD192 cable gland provides reliable sealing for tray cable installations in non-hazardous environments. Installing the wrong gland can lead to ingress, moisture intrusion, and costly downtime due to rework. It carries a NEMA 4 rating and NEC/CEC compliance, with ordinary/non-hazardous location suitability, making it a safe choice for general-purpose applications. With a 1/2 inch NPT thread and a non-armoured, 45° angled design, CGD192 enables faster, more dependable installations while reducing total cost of ownership for electrical enclosures and control panels.
Product Information
Extended Description
CGD192 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.125-0.250", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD192
Product Length/Depth
2.46 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
1.6 lb
UPC
782274143101
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
45° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.125-0.250"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGD192
Feature: 1/2 in NPT thread size and 45° angle connector enable direct enclosure mounting and streamlined cable entry. Benefit: faster installation, fewer fittings, and lower labor costs in industrial panels. Application: tray cable installations in general-purpose, non-armoured systems where space is tight and alignment matters. Feature: Feraloy iron alloy construction delivers rugged durability and excellent corrosion resistance. Benefit: extended service life in harsh environments reduces replacement cycles and maintenance expense. Application: outdoor or wash-down areas where robustness is essential. Feature: Cable range 0.125–0.250 in and non-armoured gland design support common tray cables. Benefit: compatibility with typical industry cables lowers inventory complexity and spare-part costs. Application: general purpose automation wiring in control cabinets and distribution panels. Feature: NEMA Rating 4, NEC/CEC compliance, and Ordinary/Non-Hazardous location suitability. Benefit: regulatory assurance and safe operation in standard facilities, minimizing risk and accelerating commissioning. Application: installations requiring weather/dust protection and standard code compliance across industrial facilities. Feature: Compact weight of 1.6 lb and availability of installation instructions (IF 513A). Benefit: easier handling, swift onboarding, and predictable field performance. Application: field service and retrofits where space is at a premium and documented procedures are preferred.
Get a Quick Quote for a Eaton Crouse-Hinds CGD192
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGD192?
Enquire Now
FAQs
CGD192 is designed for tray cable terminations in general-purpose, non-armoured systems and accepts standard 1/2 in NPT fittings. The 45° angled connector simplifies cable routing and enclosure mounting, reducing installation time and the number of adapters required in control panels and junction boxes.
CGD192 carries a NEMA 4 rating and NEC/CEC compliance, making it suitable for ordinary/non-hazardous locations. This configuration provides reliable ingress protection against dust and water washdowns, helping maintain enclosure integrity and extend equipment life in typical industrial environments.
CGD192 supports tray cables that are non-armoured, with a cable range of 0.125 to 0.250 inches. This aligns with common tray cable sizes, reducing the need for alternative glands and simplifying stocking for single-source procurement.
For proper installation, refer to IF 513A CG fittings installation guidance and use the 1/2 in NPT gland with non-armoured cable. The 45° angle and the gland’s material support robust mounting, and the included documentation helps ensure compliance with installation best practices.
Using CGD192 can lower maintenance costs by preventing ingress and moisture-related equipment failures, extending enclosure life, and reducing spare-part needs due to standard, widely-supported sizing. Its rugged Feraloy iron alloy construction also contributes to longer service intervals in harsh or wash-down environments.
