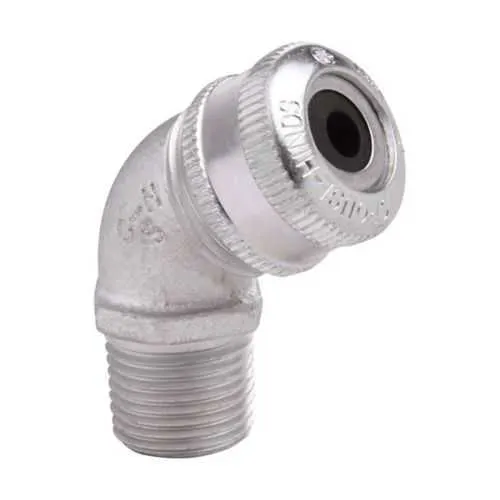

Eaton Crouse-Hinds CGD193 Cable Gland - NEMA 4, 1/2 in NPT
Part Number: CGD193
Quick Summary
CGD193 cable gland by Eaton Crouse-Hinds provides rugged sealing for tray cables in industrial automation and control panels. Installers often face moisture intrusion, dust ingress, and vibration at enclosure entries; this gland delivers a reliable seal and straightforward installation. With NEC/CEC compliance, a NEMA 4 rating, and ordinary/non-hazardous area classification, it supports safe operation across a range of indoor environments. Designed for compatibility with non-armoured tray cables and 1/2 in NPT fittings, it helps reduce maintenance downtime and support compliance throughout the system lifecycle.
Product Information
Extended Description
CGD193 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.250-0.375", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD193
Product Length/Depth
2.46 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.35 lb
UPC
782274143200
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
45° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.250-0.375"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGD193
Feature: Cable range 0.250-0.375 inches and non-armoured tray cable compatibility. Business impact: simplifies inventory and reduces the need for multiple gland sizes, accelerating installation and reducing stocking costs in control panels and conveyor enclosures. Application: ideal for tray cable installations in ordinary non-hazardous locations. Feature: 1/2 inch NPT thread with 45-degree angle connector. Business impact: faster, space-efficient mounting in tight panel spaces and easy routing of cables at an angle, improving signal integrity and reducing installation time. Application: compact electrical rooms and equipment racks where space is limited. Feature: Feraloy iron alloy body. Business impact: rugged, corrosion-resistant enclosure entry that lowers maintenance frequency in humid or dusty environments. Application: harsh factory floors and outdoor-rated installations where durability matters. Feature: General purpose protection with NEC/CEC compliance and NEMA 4 rating. Business impact: ensures regulatory alignment and reliable ingress protection, minimizing rework and inspection time. Application: machine controls, panels, and junctions in ordinary locations. Feature: Documentation and installation support. Business impact: access to IF 1826 instructions and Eaton literature streamlines commissioning and reduces startup risk. Application: engineering teams integrating CGD193 into new or retrofit projects, ensuring consistent installation practices.
Get a Quick Quote for a Eaton Crouse-Hinds CGD193
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGD193?
Enquire Now
FAQs
CGD193 supports tray cables with a 0.250 to 0.375 inch conductor range and uses a 1/2 inch NPT thread. It is designed for non-armoured (tray) cables and features a 45-degree angle connector for easier routing inside panels.
CGD193 carries NEC/CEC standards, a NEMA 4 rating, and is intended for ordinary or non-hazardous locations. These specifications support safe operation in common manufacturing environments and help simplify compliance during audits.
CGD193 is rated for ordinary/non-hazardous locations and features a NEMA 4 enclosure protection level. It is not intended for hazardous (oracle) or outdoor-specific applications without additional enclosure protections.
The 1/2 in NPT thread and 45-degree angle design enable faster mounting in tight spaces, while the rugged Feraloy iron alloy body provides durable sealing against dust and moisture. These factors collectively reduce commissioning time and later maintenance.
CGD193 consolidates cable gland options, reduces inventory with a single suitable size for 0.250-0.375 inch cables, and minimizes rework thanks to NEC/CEC compliance and a robust NEMA 4 seal. This translates to lower lifecycle costs and improved panel uptime.
