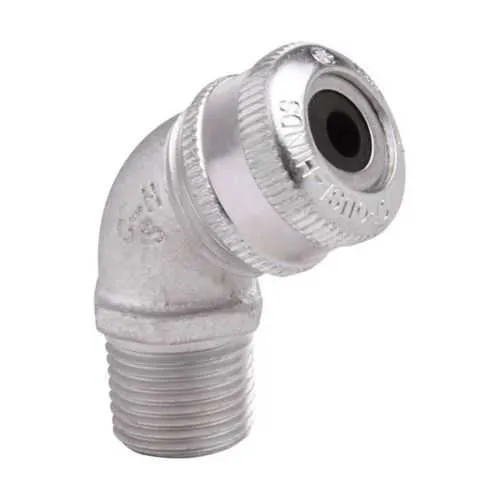

Eaton Crouse-Hinds CGD194 Cable Gland - NEMA 4
Part Number: CGD194
Quick Summary
CGD194 cable gland from Eaton Crouse-Hinds provides rugged sealing for tray cable in industrial installations. Installers often struggle with non-armoured cables in tight spaces, where ingress protection and simple mounting save time. This model carries NEC/CEC compliance, a NEMA 4 rating, and ordinary/non-hazardous location suitability to support safe, compliant operation. Its 1/2-inch NPT thread and 45-degree connector streamline routing in control panels, while its compact footprint reduces enclosure modification costs.
Product Information
Extended Description
CGD194 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.375-0.500", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD194
Product Length/Depth
2.46 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.22 lb
UPC
782274143309
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
45° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.375-0.500"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGD194
Feature: Feraloy iron alloy body with a non-armoured gland provides robust durability and corrosion resistance in ordinary locations. Benefit: longer service life and reduced maintenance costs. Application: ideal for general-purpose tray cable installations in control panels and industrial enclosures. Feature: Cable range 0.375-0.500 inches and 1/2 inch NPT thread offer versatile compatibility with common tray cables. Benefit: faster field adaptation and inventory efficiency, reducing downtime during upgrades. Application: retrofit projects and new-builds with mixed tray cable sizes. Feature: 45° angle connector and compact dimensions (2.46 in length, 1.14 in width and height) enable easy mounting in restricted spaces. Benefit: simplified routing and fewer enclosure modifications. Application: panel design with tight clearances. Feature: NEMA 4 rating and NEC/CEC compliance ensure environmental protection and regulatory alignment. Benefit: lower risk of ingress-related failures and streamlined certification. Application: outdoor or damp-environment equipment rooms. Feature: Documentation and resources including installation instructions, datasheets, and UL certifications support fast, compliant commissioning. Benefit: reduces install risk and accelerates procurement and QA checks. Application: contractor onboarding and maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds CGD194
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGD194?
Enquire Now
FAQs
CGD194 uses a 1/2" NPT thread and a non-armoured gland, designed for tray cables in general-purpose enclosures. When installing, ensure the cable range is within 0.375–0.500", apply appropriate thread sealant or gasket, and mount the gland at the specified 45° angle to optimize ingress protection. Verify panel fill and clearance to maintain NEMA 4 sealing integrity and perform torque checks per installation sheets.
CGD194 is certified to NEC/CEC standards and carries a NEMA 4 rating, indicating protection against dust and water ingress. This makes it suitable for ordinary locations in control panels and outdoor enclosures. For compliance, match installation practices to NEC/CEC guidelines, use listed components, and reference UL certifications where applicable for local regulatory approval.
Yes. CGD194 is designed for ordinary/non-hazardous locations with tray cables. Its general-purpose protection type and NEMA 4 rating provide reliable ingress protection in typical indoor and semi-exposed environments. The 1/2" NPT thread supports standard mounting, while the 45° connector aids cable routing in panel layouts, reducing modification time.
Key specifications include a cable range of 0.375–0.500 inches, 1/2 inch NPT thread, and a 45° angle connector. Physical dimensions are 2.46 inches in length, with 1.14 inches width and height, and a weight of 0.22 pounds. This compact footprint supports versatile mounting in crowded panels and equipment bays.
Available resources include installation instructions IF 1826, product datasheets, UL certification references, and a dedicated catalog page for non-armoured glands. Additional assets cover the Crouse-Hinds series tray cable glands and the CGD194 specification sheet, providing installation steps, torque guidance, and compliance details for fast, compliant commissioning.
