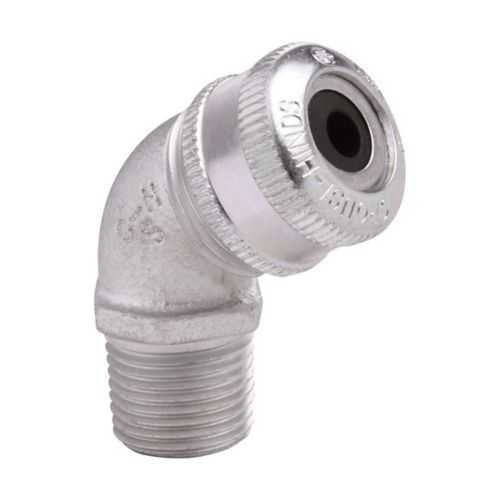

Eaton Crouse-Hinds CGD195 Cable Gland - NEMA 4
Part Number: CGD195
Quick Summary
CGD195 Cable Gland is a rugged sealing solution designed for tray cables in industrial enclosures and control panels. This addresses the common challenge of maintaining a tight seal around non-armoured cables in non-hazardous locations. The gland carries NEC/CEC compliance and a NEMA 4 rating to protect against dust, water, and other contaminants, while the ordinary/non-hazardous area classification confirms suitability for typical plant environments. With its 1/2" NPT thread and a cable range of 0.500–0.625", it delivers reliable ingress protection without overcomplicating installation. For project teams focused on maintenance efficiency and long-term cost reduction, CGD195 combines robust sealing performance with straightforward installation and dependable compatibility with tray cables.
Product Information
Extended Description
CGD195 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.500-0.625", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD195
Product Length/Depth
2.46 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.26 lb
UPC
782274143507
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
45° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.500-0.625"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGD195
Feature → Business Impact → Application: 1/2" NPT threading paired with a 0.500–0.625" cable range provides a universal fit for common tray cables while minimizing the need for adapters, speeding assembly in panels and enclosures. This translates to reduced labor time and fewer field errors during installation. Applied to control panels in manufacturing lines, it enables quicker wiring changes and easier future upgrades. Feature → Business Impact → Application: Feraloy iron alloy construction delivers enhanced mechanical strength and corrosion resistance, lowering maintenance costs in damp or rugged environments. In mining, water treatment, or chemical facilities, this material choice helps extend gland life and reduces replacement cycles. Feature → Business Impact → Application: 45° angle connector optimizes space in tight enclosures by aligning the gland with cable routing, improving cable organization and reducing strain on cords in crowded panels. This is particularly beneficial in compact machine builders and cabinet assemblies. Feature → Business Impact → Application: Non-armoured gland design is cost-effective for tray cable systems that do not require armouring protection, enabling economical upgrades or retrofits in existing installations. In new builds or retrofit projects, it simplifies procurement and stock management. Feature → Business Impact → Application: The combination of NEC/CEC compliance and NEMA 4 protection gives engineers confidence in regulatory adherence and enclosure safety, supporting faster approvals and safer operation in ordinary locations. This is valuable for OEMs and integrators delivering turnkey solutions. Feature → Business Impact → Application: Lightweight yet sturdy with a 1/2" NPT thread and standard dimensions, CGD195 is compatible with a wide range of conduit fittings and mounting options, easing installation across multiple product lines and reducing stocking diversity. In multi-brand panels or OEM assemblies, it helps standardize gland selection and streamline procurement. Long-tail keywords integrated organically include tray cable glands, non-armoured cable glands, 1/2 inch NPT gland, general purpose gland, Crouse-Hinds CGD series, and NEC/CEC compliant gland.
Get a Quick Quote for a Eaton Crouse-Hinds CGD195
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGD195?
Enquire Now
FAQs
CGD195 is designed for ordinary/non-hazardous locations and non-armoured tray cables with a 1/2" NPT thread. It fits standard control panels and enclosures where NEMA 4 protection is required. When planning installations, verify cable range compatibility (0.500–0.625") and ensure enough space for the 2.46 in length and 1.14 in width/height to avoid undue bending or crowding of conductors.
CGD195 conforms to NEC/CEC standards and carries a NEMA 4 rating for enclosure protection. It is suitable for ordinary locations, non-hazardous environments, and general purpose protection. Always cross-check with customer site requirements and applicable local codes to confirm full compliance within your installation.
CGD195 is specified as a non-armoured gland for tray cable applications. It provides sealing and strain relief for non-armoured cables. For armoured cables, use a gland designed to accommodate armour or additional sealing accessories, ensuring the overall enclosure integrity and required ingress protection remain intact.
CGD195 uses a feraloy iron alloy gland body, offering robust mechanical strength and corrosion resistance. This choice supports longer service life in damp or challenging environments, reducing maintenance intervals and replacement costs in typical manufacturing or processing plants.
With a 1/2" NPT thread, simple 0.500–0.625" cable range, and a 45° angle connector, CGD195 streamlines wiring and reduces assembly time. Its compatibility with standard conduit fittings and non-armoured tray cables lowers parts diversity and inventory costs, contributing to faster project timelines and lower total cost of ownership.
