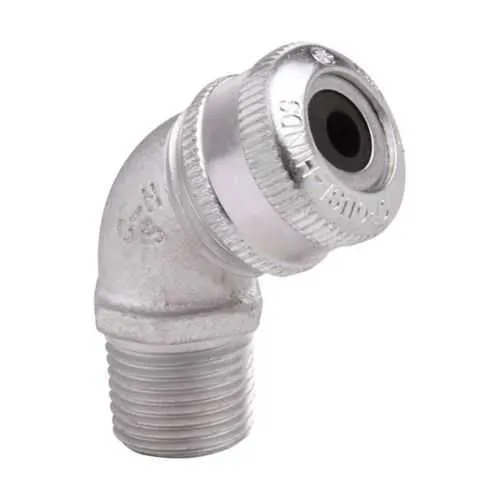

Eaton Crouse-Hinds CGD196 CableGland - 1/2 in NPT, NEMA 4
Part Number: CGD196
Quick Summary
Eaton Crouse-Hinds CGD196 cable gland provides rugged, sealed entry for non-armoured tray cables in industrial enclosures. In field installations, moisture ingress, vibration, and installation complexity drive maintenance costs and downtime. This gland supports NEC/CEC compliance and carries a NEMA 4 weatherproof rating for ordinary/non-hazardous locations, while a 1/2 in NPT connection ensures quick, reliable mounting. The design enables faster installation, reduced leakage paths, and longer service life, delivering tangible cost savings and improved reliability for panel builders, machine builders, and facilities teams. Use cases include electrical distribution, control panels, and machine wiring in harsh environments.
Product Information
Extended Description
CGD196 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.625-0.750", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD196
Product Length/Depth
3.2 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
6.3 lb
UPC
782274143583
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
45° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.625-0.750"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGD196
Feature: Non-armoured and tray cable compatibility → Business Impact: Reduces spare parts and inventory complexity while enabling consistent sealing across cable types → Application: Ideal for facility and panel wiring in mixed cable environments. Feature: 45° angle connector → Business Impact: Simplifies routing in tight enclosures, improving ergonomics and reducing bend stress on cables → Application: Enclosures with limited clearance and complicated layouts. Feature: 1/2" NPT thread size → Business Impact: Standard hub compatibility reduces custom fabrication and installation time → Application: Retrofit projects and new builds leveraging common conduit fittings. Feature: Feraloy iron alloy gland body → Business Impact: Enhanced durability in dusty, high-vibration environments, extending service life and reducing maintenance cycles → Application: Machinery and outdoor enclosures with harsh exposure. Feature: Cable range 0.625–0.750 inches → Business Impact: Accommodates typical non-armoured tray cables, lowering the need for multiple gland sizes → Application: Electrical distribution and control panels using standard tray cable sizing. Feature: NEC/CEC compliance and NEMA 4 rating → Business Impact: Ensures regulatory alignment and weatherproof protection, reducing compliance risk and downtime → Application: Indoor/outdoor installations in ordinary/non-hazardous locations. Insight: This CGD196 gland is designed to integrate with existing CGD/Tray Cable Glands ecosystems, offering predictable performance, straightforward installation, and long-term reliability for automation and electrical distribution projects.
Get a Quick Quote for a Eaton Crouse-Hinds CGD196
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGD196?
Enquire Now
FAQs
CGD196 supports non-armoured tray cables with a 1/2 in NPT threaded entry and a 45° angled gland head, allowing installation in tight spaces. Its 0.625–0.750 in cable range covers common tray cable sizes, reducing the need for multiple gland types and simplifying field assembly.
Key specs include a 3.2 inch length, 1.63 inch width and height, 6.3 lb weight, 1/2 inch NPT thread, 45° angle connector, and a cable range of 0.625–0.750 inches for non-armoured tray cable. Material is Feraloy iron alloy, rated NEMA 4 and NEC/CEC compliant for ordinary/non-hazardous locations.
Yes. CGD196 is rated NEMA 4, providing weatherproof and washdown resilience suitable for both indoor and outdoor installations in ordinary/non-hazardous locations. It is designed for general-purpose, non-armoured tray cable applications in industrial automation.
CGD196 aligns with NEC/CEC standards and carries a NEMA 4 rating. It also references ordinary/non-hazardous area classifications. UL certification documents are available for auditing and Canada/US compliance, aiding procurement and engineering qualification processes.
By delivering robust sealing, straightforward installation, and compatibility with standard hubs, CGD196 reduces downtime and maintenance cycles. Its durable Feraloy alloy and reliable NEMA 4 protection lower replacement costs and improve long-term reliability for automation equipment and electrical distribution systems.
