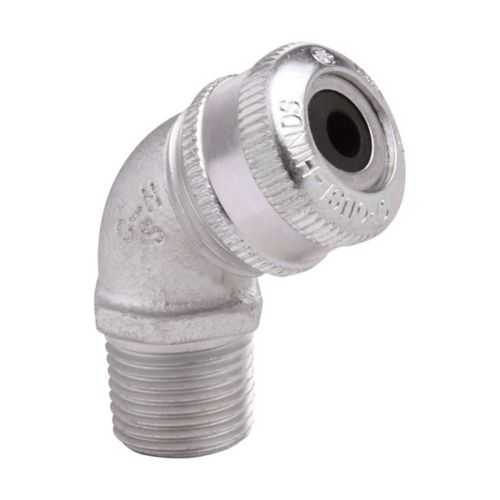

Eaton Crouse-Hinds CGD197 Cable Gland - NEMA 4
Part Number: CGD197
Quick Summary
CGD197 cable gland is designed to secure and seal tray cables in control panels and electrical enclosures. Engineers often struggle with leaks, inadequate strain relief, and difficult routing in tight spaces. This gland meets NEC/CEC standards, is rated NEMA 4, and is suitable for ordinary/non-hazardous locations. With a 1/2 in NPT thread and a 45° angle connector, it simplifies installation while delivering reliable sealing. Built from feraloy iron alloy for rugged service, the CGD197 supports long-term maintenance, reduces field rework, and aligns with general-purpose wiring needs across industrial facilities. Its cable range of 0.750 to 0.875 inches makes it versatile for common tray cables in control and power applications.
Product Information
Extended Description
CGD197 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.750-0.875", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD197
Product Length/Depth
3.2 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
12.45 lb
UPC
782274143606
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
45° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.750-0.875"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGD197
The CGD197 uses a 1/2 in NPT thread with a 45° angle connector, delivering a clean entry path and minimizing bending stress in crowded enclosures. This feature reduces installation time and improves seal integrity when routing tray cables around equipment corners, supporting faster panel builds and easier field maintenance. Cable range 0.750–0.875 inches covers common tray cable sizes used in control cabinets, reducing the need for multiple gland variants. In practice this translates to lower part counts, fewer SKUs, and improved stock control on the warehouse floor. Constructed from feraloy iron alloy, CGD197 offers rugged durability in industrial environments while resisting wear from vibration and impact. The gland's general-purpose protection type and NEMA 4 rating ensure reliable operation in indoor, damp, or wash-down settings and support long service life. Certification and compliance are baked in: NEC/CEC standards, Ordinary/Non-Hazardous area classification, and a non-armoured gland that suits non-armoured tray cables. This alignment reduces engineering review time and accelerates procurement for compliant installations. Installation and compatibility advantages extend to accessories and catalogs from Eaton, with installation sheets and datasheets available to simplify spec-to-install transitions.
