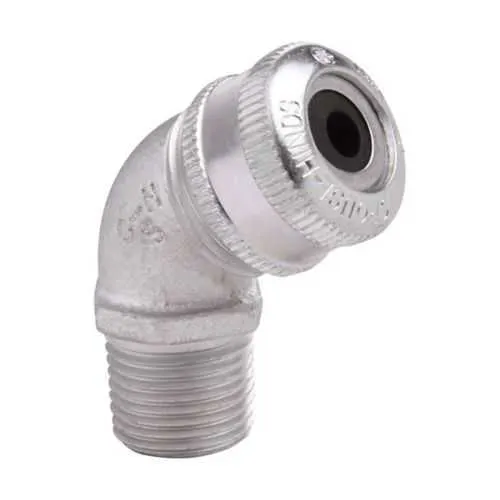

Eaton CGD295 Cable Gland - NEMA 4, 3/4 in NPT
Part Number: CGD295
Quick Summary
CGD295 cable gland is engineered to seal and protect tray-cable connections in industrial environments. Too often, improper gland sizing allows moisture ingress and cable movement, driving downtime and maintenance costs. With NEC/CEC compliance and a NEMA 4 rating, CGD295 meets general-purpose needs in ordinary locations. For installers, the 3/4 in NPT thread and 45-degree angle connector simplify mounting, while tray-cable compatibility reduces SKU complexity. Constructed from Feraloy iron alloy for durability in harsh environments, CGD295 also supports installation in non-hazardous locations. Its cable range 0.500-0.625 inches covers common tray cables. The non-armoured gland design streamlines replacement and procurement for projects.
Product Information
Extended Description
CGD295 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.500-0.625", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD295
Product Length/Depth
2.57 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.3 lb
UPC
782274143903
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
45° angle
Thread Size
3/4"
Thread type
NPT
Cable range (min/max)
0.500-0.625"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGD295
Feraloy iron alloy construction provides rugged durability and reliable sealing in challenging environments. This material resists corrosion and physical wear, extending gasket life and minimizing replacement parts. In real-world control cabinets and motor starters, CGD295 maintains performance despite temperature swings and exposure to dust. Cable range and thread compatibility simplify procurement and installation. With a min/max 0.500-0.625 inch tray-cable range and a 3/4 inch NPT thread, the CGD295 fits common cabling and standard fittings without custom adapters. This reduces stocking requirements and accelerates project timelines in brownfield retrofits. 45-degree angle connector improves cable entry in tight spaces. The angled design reduces bending and strain at the gland interface, enhancing seal integrity and prolonging connection life. This is particularly valuable in panel enclosures and machine bays with restricted access. General-purpose, non-armoured gland for tray cable simplifies compatibility. Installing in ordinary/non-hazardous locations benefits from NEC/CEC compliance alongside NEMA 4 protection. The gland's simple geometry also supports quick retrofits and straightforward field maintenance. Ease of installation translates to measurable efficiency gains. The CGD295 reduces field rewiring and testing time while meeting regulatory requirements, contributing to lower total cost of ownership over equipment lifetime. Industry professionals value consistent performance, predictable sourcing, and documented compatibility with Eaton Crouse-Hinds product families.
Get a Quick Quote for a Eaton Crouse-Hinds CGD295
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGD295?
Enquire Now
FAQs
CGD295 supports tray cable that is non-armoured, with a cable range of 0.500 to 0.625 inches. This makes it ideal for common industrial wiring in control panels and machinery without requiring armour or special adapters. Its 3/4 inch NPT thread provides straightforward compatibility with standard gland fittings.
The 3/4 in NPT thread ensures quick, reliable mounting with standard conduit hardware, while the 45-degree angle connector eases cable entry in tight or crowded enclosures. Together, they reduce installation time, minimize assembly errors, and improve seal integrity, especially in panel tops, cabinet corners, or machine bays with limited access.
CGD295 is specified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards and the NEMA 4 rating for general purpose use. For genuinely hazardous areas, consult project-specific certifications and Eaton documentation to identify any supplementary gland options rated for those environments.
CGD295 complies with NEC/CEC standards and carries a NEMA 4 protection rating, suitable for general purpose use in ordinary locations. Its design supports tray cable, non-armoured configurations, and a 3/4 inch NPT thread, making regulatory compliance straightforward for many industrial installations.
The Feraloy iron alloy body provides durability and corrosion resistance, reducing replacement parts and downtime. The gland’s compatibility with standard tray cables and fittings lowers procurement complexity, while its robust sealing minimizes field rework. Over the equipment lifecycle, these factors contribute to lower maintenance costs and a clearer path to return on investment.
