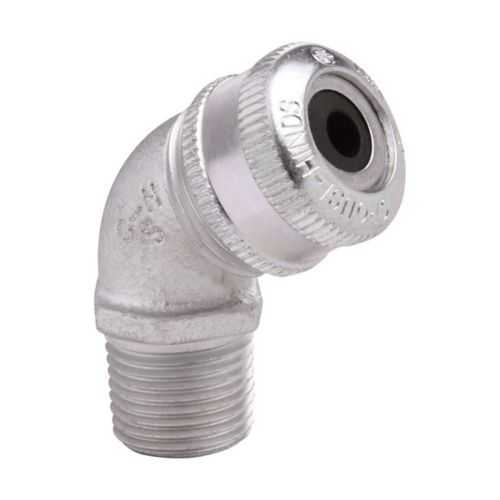

Eaton Crouse-Hinds CGD297 Cable Gland - NEMA 4
Part Number: CGD297
Quick Summary
Cable gland CGD297 provides a robust seal for non-armoured tray cables in industrial control panels. Many installations struggle with moisture, dust, and vibration entering through unused gland entries, leading to corrosion and unplanned downtime. This Eaton Crouse-Hinds design is NEC/CEC compliant and features NEMA 4 protection, a 3/4 in NPT thread, and a 0.750–0.875 in cable range, enabling reliable field assembly. By combining rugged materials with straightforward installation, it helps maintenance teams reduce service interruptions while meeting safety and regulatory requirements in ordinary locations. The gland’s 45° angle also aids cable routing in tight enclosures, improving enclosure fill and thermal performance.
Product Information
Extended Description
CGD297 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGD cable gland, Cable range min/max: 0.750-0.875", Non-armoured and tray cable, 45° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGD cable gland
Catalog Number
CGD297
Product Length/Depth
3.2 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
0.65 lb
UPC
782274140353
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
45° angle
Thread Size
3/4"
Thread type
NPT
Cable range (min/max)
0.750-0.875"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGD297
Feature: Cable range 0.750–0.875 in. Business Impact: Reduces substitutions and stock variety, speeding commissioning and lowering inventory costs for non-armoured tray cables. Application: Suited for general-purpose wiring in control panels and machinery that use 0.75 to 0.875 inch cables. Feature: 3/4 in NPT thread with 45° connector angle. Business Impact: Simplifies mounting and routing in tight or angled enclosures, reducing installation time and errors. Application: Ideal for compact electrical enclosures and tray cable glands installations where space is constrained. Feature: Non-armoured gland for tray cable. Business Impact: Delivers a cost-effective sealing solution without armour compatibility issues, lowering total cost of ownership. Application: Best for non-armoured tray cables in general purpose wiring scenarios. Feature: Material: Feraloy iron alloy. Business Impact: Provides rugged durability and resistance to impact, extending service life in harsh environments. Application: Suitable for industrial environments where robustness is required. Feature: Protection and standards: NEMA 4, NEC/CEC compliance. Business Impact: Ensures safe operation and regulatory alignment, reducing compliance risk and inspection findings. Application: Appropriate for ordinary/non-hazardous locations and general purpose installations.
Get a Quick Quote for a Eaton Crouse-Hinds CGD297
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGD297?
Enquire Now
FAQs
CGD297 is designed for non-armoured tray cables with a range of 0.750 to 0.875 inches. This broad range reduces the need for multiple gland sizes, simplifying procurement, stocking, and on-site substitutions while speeding up commissioning in control panels and equipment housings.
The 3/4 in NPT thread provides a reliable, standard connection, while the 45° angle eases cable entry and routing in restricted spaces. This combination minimizes enclosure fill, reduces installation time, and improves cable management in compact electrical cabinets.
CGD297 is rated for Ordinary/Non-Hazardous Locations with NEMA 4 protection, making it suitable for general purpose indoor and some outdoor applications where exposure to dust, moisture, and moderate contaminants is possible, provided enclosure integrity is maintained.
CGD297 adheres to NEC/CEC standards and carries NEMA 4 protection. This combination supports reliable operation in non-hazardous environments and aligns with common industry regulations for control panels and machinery wiring.
Using CGD297 reduces ingress-related maintenance, extends gland life due to rugged Feraloy iron alloy construction, and lowers total cost of ownership by limiting SKU variety and simplifying field installs, contributing to higher uptime and lower maintenance costs over time.
