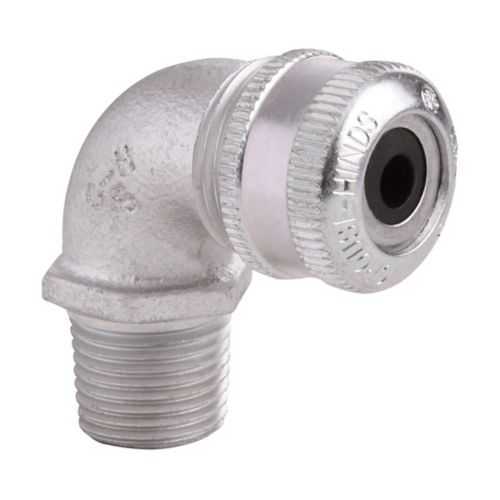

Eaton CGE192 Cable Gland - NEMA 4, 1/2 NPT, Tray Cable
Part Number: CGE192
Quick Summary
The Eaton CGE192 cable gland provides a rugged seal for non-armoured tray cables in electrical enclosures. Engineers often struggle with maintaining sealing integrity and cable-entry reliability in tight installations. This gland meets NEC/CEC compliance and NEMA 4 enclosure protection, ensuring safe operation in ordinary/non-hazardous locations. With a 1/2" NPT thread and a cable range of 0.125–0.250 inches, it enables straightforward, tool-friendly installation while resisting environmental ingress. Designed for general‑purpose use on tray cables, it helps reduce maintenance, extend service life, and support compliant, load-bearing conduit systems in industrial facilities. Field technicians value consistent gland performance across temperatures and vibration levels common in manufacturing and processing environments.
Product Information
Extended Description
CGE192 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.125-0.250", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE192
Product Length/Depth
2.87 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.3 lb
UPC
782274141954
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
90° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.125-0.250"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGE192
Seal integrity and ingress protection are foundational for any gland chosen for tray cables. The CGE192 uses a robust feraloy iron alloy body and a precision seal to resist oil, dust, and moisture ingress, translating into fewer field replacements and lower maintenance costs. In practice this means longer intervals between servicing and greater uptime for control panels handling non-armoured tray cables, especially in conveyor lines or process cells. The 90° gland orientation coupled with the compact 2.87 in length enables installation in tight panel spaces where traditional straight glands would struggle. The ergonomic 1/2" NPT thread simplifies mounting on standard enclosures, reduces installation time, and minimizes the risk of cross-thread damage during assembly. Constructed from Feraloy iron alloy, the CGE192 delivers superior mechanical strength and impact resistance in vibration-prone environments. This translates to reduced wear on the entry point and a lower likelihood of seal degradation after equipment starts or stops, which is common in rolling stock, packaging lines, and manufacturing cells. Cable-range compatibility of 0.125–0.250 inches covers most common non-armoured tray cables, allowing stock uniformity and fewer SKU variants. The non-armoured gland and its general-purpose protection type make it suitable for a wide range of panels and enclosures, from switchgear to junction boxes, without specialized accessories. Certified and compliant for ordinary/non-hazardous locations under NEC/CEC and rated for NEMA 4 enclosures, the CGE192 offers confidence for facility engineers and procurement teams. This ensures regulatory alignment, reduces audit findings, and supports safe, compliant expansion of automation and control systems. Finally, the gland's light weight and standard dimensions facilitate retrofits and replacements, enabling faster upgrades and lower total cost of ownership across plant networks. In practice, technicians commonly pair CGE192 with installation instructions such as IF 1826 and manufacturer catalogs to ensure correct gland seating and seal compression under varying cable diameters.
Get a Quick Quote for a Eaton Crouse-Hinds CGE192
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE192?
Enquire Now
FAQs
CGE192 is designed for non-armoured tray cables with a cable range of 0.125–0.250 inches and uses a 1/2 inch NPT threaded entry. The gland is configured for a 90° angle installation, which helps fit into tight control panels and enclosures while maintaining a secure seal against dust and moisture in ordinary locations.
Install CGE192 by threading into a standard 1/2 in NPT entry, aligning the gland so the 90° outlet matches cable routing. Use appropriate tightening to achieve a consistent seal without over-torquing, and refer to IF 1826 installation guidance for best practices on seating and seal compression in non-armoured tray cables.
CGE192 is specified for ordinary/non-hazardous locations and carries NEC/CEC compliance with a NEMA 4 rating. It should not be used in hazardous environments where explosive atmospheres are present; for those applications, select gland products certified for higher safety classifications.
CGE192 complies with NEC/CEC standards and is rated NEMA 4 for enclosure protection. It is supplied with UL-listed references and compatible with non-armoured tray cables, supporting regulatory alignment, safe operation, and easier audits in industrial facilities.
The gland’s 1/2" NPT thread, 90° orientation, and compatible cable range simplify installation, reducing labor time and downtime. Its feraloy iron alloy body offers improved durability against vibration and temperature swings, lowering maintenance costs and extending service life for automation panels – delivering measurable total cost of ownership improvements.
