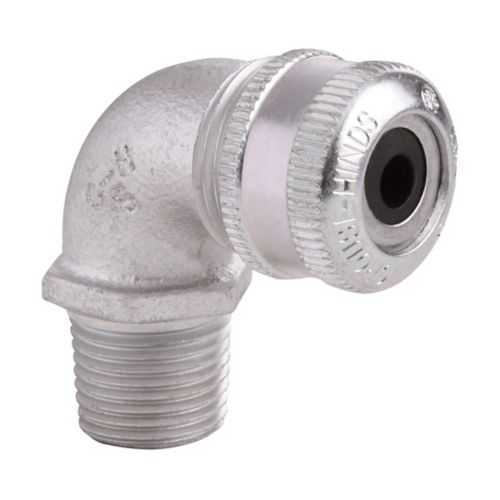

Eaton Crouse-Hinds CGE193 Cable Gland - NEMA 4
Part Number: CGE193
Quick Summary
CGE193 is a general-purpose cable gland designed for tray cables in industrial enclosures. This solution helps prevent moisture, dust, and oil ingress where non-armoured cable runs into control panels and equipment rooms. Many engineers struggle with compatible glands for 1/2 inch NPT threads and non-armoured tray cable, leading to leaks or long commissioning times. This CGE193 offers NEC/CEC compliance, a NEMA 4 rating, and suitability for ordinary/non-hazardous locations, reducing risk during audits. By pairing with Eaton's CGE family, it delivers consistent sealing performance and faster installation, while supporting common industry standards and easy field replacement when upgrading facilities or expanding plant layouts.
Product Information
Extended Description
CGE193 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.250-0.375", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE193
Product Length/Depth
2.87 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.67 lb
UPC
782274142005
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
90° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.250-0.375"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGE193
Feature → Business Impact → Application: The 1/2 in NPT thread and 90° angle enable quick, secure mounting in tight control-panel spaces, reducing installation time and potential leaks in busy engineering environments. This directly lowers commissioning costs while improving enclosure integrity for tray cable runs. Feature → Business Impact → Application: The cable range of 0.250–0.375 in supports common non-armoured tray cables, ensuring a reliable seal without oversizing, which lowers stock and simplifies procurement for maintenance teams working on legacy plants. Feature → Business Impact → Application: Ferroloy iron alloy construction delivers rugged durability against impact and corrosion in industrial settings, extending service life in harsh environments and reducing maintenance cycles. Feature → Business Impact → Application: A NEMA 4 rating with NEC/CEC compliance provides built-in protection and regulatory alignment for ordinary locations, simplifying audits and ensuring consistent performance across facilities. Feature → Business Impact → Application: Compact dimensions (2.87 in length, 1.14 in width/height) and a modest weight (0.67 lb) ease handling, warehousing, and field replacement during expansion projects or retrofits. Feature → Business Impact → Application: Non-armoured, tray-cable compatibility minimizes the need for additional armour or adapters, streamlining installation in control panels and junction boxes, and improving overall project lead times.
Get a Quick Quote for a Eaton Crouse-Hinds CGE193
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE193?
Enquire Now
FAQs
CGE193 supports tray cable that is non-armoured with a cable range of 0.250 to 0.375 inches and uses a 1/2 inch NPT thread with a 90° angle to suit enclosure entry points.
Key specs include a length of 2.87 in, height 1.14 in, width 1.14 in, and weight 0.67 lb. Catalog number is CGE193 and UPC is 782274142005, with a 1/2 in NPT thread.
CGE193 is rated for Ordinary/Non-Hazardous Locations and carries NEC/CEC standards with a NEMA 4 enclosure rating, making it appropriate for general purpose installations in non-hazardous environments.
Yes, CGE193 adheres to NEC/CEC standards and is part of the Crouse-Hinds non-armoured gland family with UL certification references available in related documents.
With a 90° angle, non-armoured design, and 1/2 in NPT thread, CGE193 enables fast, tool-efficient mounting in tight panels and seamless compatibility with tray cables, reducing install time and parts count.
