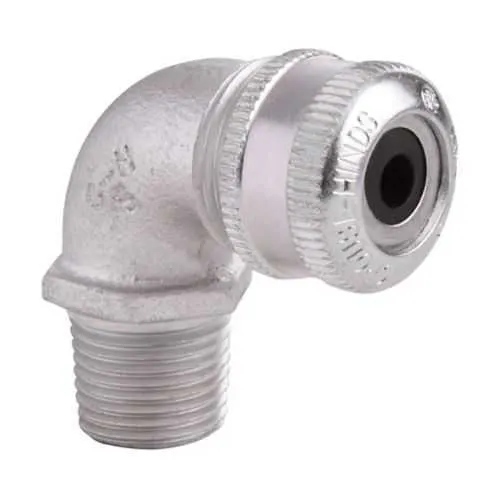

Eaton CGE194 Cable Gland - 1/2 in NPT, NEMA 4
Part Number: CGE194
Quick Summary
CGE194 cable gland from Eaton Crouse-Hinds provides reliable enclosure sealing for non-armoured tray cables in industrial control panels. Engineers often struggle to fit varying cable ranges, weatherproofing, and mounting in tight, high-demand enclosures. With a NEMA 4 rating for protection against dust and water, NEC/CEC compliance, and ordinary/non-hazardous area classification, it meets critical industry standards. Designed for general-purpose use, this gland supports 0.375–0.500 in cables and 1/2 in NPT threads, delivering installation efficiency and long-term reliability for OEMs and maintenance teams.
Product Information
Extended Description
CGE194 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.375-0.500", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE194
Product Length/Depth
2.87 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.32 lb
UPC
782274142104
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
90° angle
Thread Size
1/2"
Thread type
NPT
Cable range (min/max)
0.375-0.500"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGE194
Feature: 0.375–0.500 in cable range with 1/2 in NPT thread. Business Impact: Reduces parts diversity and speeds field installations, lowering project lead times. Application: Suitable for non-armoured tray cables in control panels and enclosure penetrations. Feature: 90° angle gland design. Business Impact: Minimizes panel footprint and bend radius, enabling tighter equipment layouts and safer cable routing. Application: Ideal for compact switchgear and cabinet installations. Feature: Feraloy iron alloy housing. Business Impact: Delivers robust mechanical protection and durable sealing in demanding environments, reducing maintenance cycles. Application: Preferred in surrounding metal enclosures and equipment subject to vibration. Feature: Non-armoured gland for tray cables. Business Impact: Simplifies sealing solutions for non-armoured cables, reducing customization costs. Application: Common in factories using standard tray cable runs. Feature: NEC/CEC compliance and NEMA 4 rating. Business Impact: Ensures regulatory alignment and reliable ingress protection, aiding audit readiness and safety certification. Application: Widely adopted in OEM assemblies and industrial plants requiring ordinary/non-hazardous locations. Feature: Compatibility with UL documentation for non-armoured glands. Business Impact: Supports verified certification paths and faster procurement decisions. Application: Useful when referencing UL reports during supplier qualification and maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds CGE194
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE194?
Enquire Now
FAQs
CGE194 supports non-armoured tray cable with a 0.375–0.500 in range and uses a 1/2 in NPT thread. Its 90° angle design minimizes panel footprint and wiring bend radius, while the Feraloy iron alloy housing provides robust mechanical protection and sealing. It simplifies installation in confined control panels and reduces field rework.
Yes, CGE194 is suitable for ordinary/non-hazardous locations with a NEMA 4 rating, providing weather resistance and splash protection for indoor or sheltered outdoor panels when installed properly. It is intended for general purpose use with non-armoured tray cables and 1/2 in NPT threads, helping maintain enclosure integrity in demanding environments.
The CGE194 gland aligns with NEC/CEC standards and is intended for ordinary/non-hazardous locations per area classification. It carries a NEMA 4 rating and is supported by installation literature and UL certification documents for non-armoured glands within the CGB-CGD-CGE family, facilitating regulatory compliance and quality assurance during procurement.
Industrial control panels, machinery, and process equipment using non-armoured tray cables benefit from CGE194’s rugged gland with a 90° fit. OEMs, manufacturers, and maintenance teams value easier installation, reduced bending radius, and reliable sealing in general-purpose environments across manufacturing plants, water treatment, and packaging lines.
CGE194 reduces installation time with a compact 90° gland and common 1/2 in NPT thread, lowering assembly costs. The Feraloy iron alloy housing provides durable sealing and long service life, reducing maintenance intervals in non-hazardous locations. Its compatibility with standard tray cable runs also minimizes spare parts and field adjustments.
