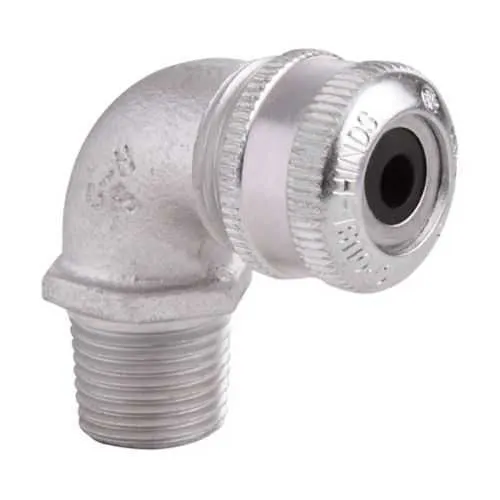

Eaton Crouse-Hinds CGE293 Cable Gland - NEMA 4
Part Number: CGE293
Quick Summary
CGE293 is a general-purpose cable gland that seals tray cables for industrial control panels. This gland addresses common ingress and compatibility challenges that lead to downtime and compliance issues. The CGE293 meets NEC/CEC standards, carries a NEMA 4 enclosure rating, and is suitable for ordinary/non-hazardous locations, with a 3/4" NPT thread. By supporting non-armoured tray cables in a compact 2.32" length and 1.14" width, it simplifies installation, reduces spare parts, and enhances maintenance planning for robust electrical installations.
Product Information
Extended Description
CGE293 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.250-0.375", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE293
Product Length/Depth
2.32 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.43 lb
UPC
782274142852
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
90° angle
Thread Size
3/4"
Thread type
NPT
Cable range (min/max)
0.250-0.375"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGE293
Feature: Cable range 0.250-0.375" and 3/4" NPT threaded connection. Business Impact: Ensures a precise fit, minimizes adapters, and speeds up field assembly. Application: Tray cable glands in control panels, machine enclosures, and distribution boxes. Feature: Feraloy iron alloy construction. Business Impact: Delivers improved mechanical strength and corrosion resistance in harsh environments. Application: Outdoor or damp locations, industrial floor areas, and moisture-prone environments. Feature: NEMA 4 rating and NEC/CEC compliance. Business Impact: Provides reliable protection against dust and water ingress while meeting critical regulatory requirements. Application: Ordinary/non-hazardous locations inside and around machinery. Feature: Compact dimensions (2.32 in L, 1.14 in W, 1.14 in H) and light weight (0.43 lb). Business Impact: Easier handling, reduced shipping costs, and quicker reconfiguration. Application: Fast replace-and-seal tasks in limited-space panels. Feature: Non-armoured, 90° angle gland for tray cables. Business Impact: Simplifies routing and sealing of non-armoured conductors with a right-angle connection. Application: Installation where cable routing requires 90° orientation and straightforward sealing.
Get a Quick Quote for a Eaton Crouse-Hinds CGE293
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE293?
Enquire Now
FAQs
To install CGE293, prep the enclosure opening to accept a 3/4 inch NPT gland, thread the gland into the enclosure, route the tray cable through the gland, and tighten to manufacturer torque specifications. Ensure the cable range (0.250–0.375 in) matches the conductors in use, and verify the gland is oriented with the 90° angle for proper cable routing and sealing.
Key specs include a 0.250–0.375 in cable range, 3/4 in NPT thread, 2.32 in length, 1.14 in width, 1.14 in height, and 0.43 lb weight. The gland is made from Feraloy iron alloy and carries NEC/CEC compliance with a NEMA 4 rating, suitable for ordinary locations with non-armoured tray cables.
Yes. The CGE293 is certified for ordinary/non-hazardous locations, features NEC/CEC compliance, and a NEMA 4 rating, making it appropriate for general-industrial enclosures, control panels, and machinery operating in non-hazardous settings.
The CGE293 complies with NEC/CEC standards and carries a NEMA 4 rating for outdoor- or harsh-environment capability in ordinary locations. It is designed for general-purpose sealing with tray cables and non-armoured conductors, aligning with typical industry compliance expectations.
The CGE293 reduces ingress risk and maintenance by providing a robust seal for non-armoured tray cables, simplifying installation with a 90° angle and 3/4" NPT. The compact size lowers handling and replacement costs, while NEC/CEC and NEMA 4 compliance help avoid compliance-related downtime and warranty issues.
