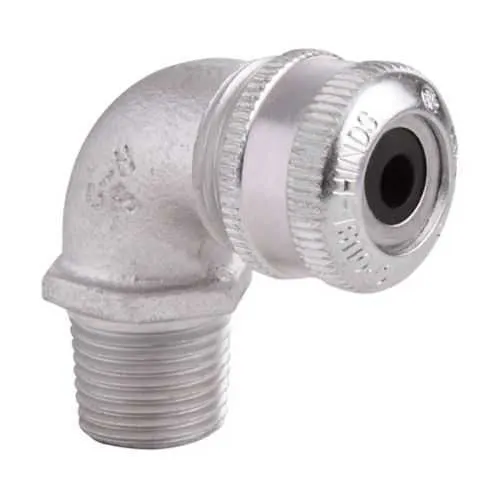

Eaton Crouse-Hinds CGE295 Cable Gland - NEMA 4, 3/4 in NPT
Part Number: CGE295
Quick Summary
Cable gland CGE295 provides reliable sealing and strain relief for non-armoured tray cables in general-purpose electrical installations. Too often, mismatched gland threads or insufficient ratings lead to enclosure leaks and downtime, complicating repairs and extending project timelines. This CGE unit meets NEC/CEC standards and carries a NEMA 4 rating for protection against dust, water, and corrosion, while its Ordinary/Non-Hazardous location classification supports safe operation in typical industrial facilities. With a 3/4 in NPT thread and a cable range of 0.500–0.625 in, CGE295 accelerates installation and reduces gland inventory, delivering cost savings while maintaining compliance. It complements general-purpose wiring programs and works well with non-armoured tray cable in rugged environments.
Product Information
Extended Description
CGE295 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.500-0.625", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE295
Product Length/Depth
2.32 in
Product Height
1.14 in
Product Width
1.14 in
Product Weight
0.43 lb
UPC
782274143156
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
90° angle
Thread Size
3/4"
Thread type
NPT
Cable range (min/max)
0.500-0.625"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGE295
Feature → Business Impact → Application: 3/4 inch NPT thread and 90° angle connector enable fast, secure entry and space-saving sealing in tight control panels, reducing installation time and rework. Application: Use in enclosures where limited depth requires a right-angle gland for non-armoured tray cable. Long-tail keywords: 3/4 in NPT cable gland, 90-degree connector, tray cable gland. Feature → Business Impact → Application: Cable range 0.500–0.625 in and non-armoured tray cable provide broad compatibility, lowering spare-part inventory and speeding sourcing. Application: General-purpose wiring with tray-cable crews in manufacturing lines. Long-tail: tray cable gland, non-armoured cable gland. Feature → Business Impact → Application: Feraloy iron alloy offers corrosion resistance and mechanical strength, extending service life and lowering maintenance costs. Application: Harsh environments, damp factories, outdoor or wash-down areas. Long-tail: Feraloy gland material. Feature → Business Impact → Application: Certifications include NEMA 4, NEC/CEC and Ordinary/Non-Hazardous locations, ensuring regulatory compliance and safer installations. Application: Compliance-driven projects in facilities with ordinary locations. Long-tail: NEC/CEC compliance gland. Feature → Business Impact → Application: Dimensions and weight—2.32 in length, 1.14 in width and height, 0.43 lb—aid enclosure design and mounting. Application: Panel entry fittings and space-constrained installations.
Get a Quick Quote for a Eaton Crouse-Hinds CGE295
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE295?
Enquire Now
FAQs
Yes. CGE295 uses a 3/4 in NPT thread and a 90° connector to fit common enclosure entries, enabling quick, leak-free installation for non-armoured tray cables.
CGE295 is designed for non-armoured tray cables within the 0.500–0.625 in range, making it ideal for general-purpose wiring in ordinary locations.
CGE295 carries NEC/CEC compliance and a NEMA 4 rating, suitable for ordinary/non-hazardous locations and protection from dust and water.
The 90° angle gland and right-size thread reduce space constraints and rework, speeding commissioning in panel assemblies and minimizing downtime.
With corrosion-resistant Feraloy iron alloy and a compact form factor, CGE295 delivers longer service life, lower maintenance, and improved total cost of ownership in tray-cable installations.
