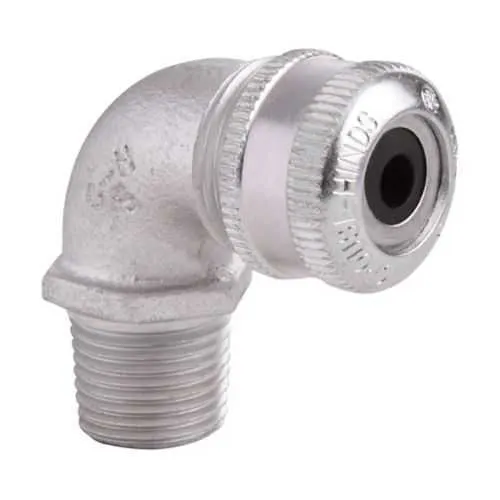

Eaton CGE296 Cable Gland - NEMA 4
Part Number: CGE296
Quick Summary
CGE296 cable gland from Eaton provides a rugged, non-armoured sealing solution for tray cables in industrial enclosures. This design addresses common field challenges such as moisture ingress and gland misfit that lead to downtime and maintenance headaches. It carries key certifications and suitability for general-purpose applications, including NEMA 4 protection and NEC/CEC compliance, making it dependable in non-hazardous locations. For procurement and installation teams, the CGE296 offers straightforward integration with 3/4" NPT threads and a compact 2.64 in length, while delivering consistent performance across standard tray cable installations. In short, it combines robust sealing with easy sourcing and reliable operation in everyday industrial environments.
Product Information
Extended Description
CGE296 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.625-0.750", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE296
Product Length/Depth
2.64 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
0.76 lb
UPC
782274143354
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
90° angle
Thread Size
3/4"
Thread type
NPT
Cable range (min/max)
0.625-0.750"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGE296
Feature: Non-armoured design compatible with tray cables and 0.625-0.750" range → Business Impact: Simplified inventory and faster field termination, reducing downtime and stocking complexity for general-purpose wiring projects → Application: Non-armoured tray cable glands in control panels and enclosures. Feature: 90° angle gland type → Business Impact: Optimized routing in tight spaces and easier gland alignment during panel assembly → Application: Compact installations where cable routing requires bends without stressing conductors. Feature: 3/4" NPT thread size with feraloy iron alloy body → Business Impact: Superior mechanical strength and reliable sealing in harsh environments, extending gland life and minimizing reseal events → Application: Heavy-duty environments and equipment with demanding ingress protection needs. Feature: NEMA 4 rating and NEC/CEC compliance → Business Impact: Regulatory alignment and water ingress protection for ordinary locations, reducing compliance risk and rework → Application: Outdoor-ready or washdown-prone enclosures in non-hazardous zones. Feature: General purpose, non-armoured, 2.64 in length and 1.63 in width/height → Business Impact: Predictable footprint and compatibility with standard enclosure designs, enabling faster engineering approval → Application: General purpose control panels and wiring hubs where space and standardization matter. Feature: 2-rail installation readiness with standard UPC identification → Business Impact: Improved traceability and easier procurement and warranty support for maintenance teams → Application: Serializing and asset management in electrical rooms and plants. Industry context and insights: For projects involving tray cable management, integrating CGE296 reduces commissioning time by aligning with common conduit threads and cable sizes, while providing a reliable seal against dust and moisture in ordinary locations. This combination supports maintenance teams with predictable parts usage, faster spares replenishment, and consistent electrical integrity across devices and panels.
Get a Quick Quote for a Eaton Crouse-Hinds CGE296
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE296?
Enquire Now
FAQs
CGE296 uses a 3/4" NPT thread and a 90° gland configuration, designed for 0.625-0.750" non-armoured tray cables. Ensure enclosure mounting aligns with the gland’s 2.64 in length and 1.63 in width/height, and verify the enclosure is rated for Ordinary/Non-Hazardous Locations per NEC/CEC. Sealants or gaskets should be chosen to match the gland material (Feraloy iron alloy) for sustained ingress protection.
CGE296 carries a NEMA 4 rating and NEC/CEC standards compliance, with suitability for Ordinary/Non-Hazardous Locations. These certifications assure environmental sealing against dust and water ingress and regulatory alignment for general industrial wiring in non-hazardous areas, reducing risk and streamlining compliance audits.
No. CGE296 is specified for Ordinary/Non-Hazardous Locations with a NEMA 4 rating, which is not intended for hazardous or explosive environments. For such areas, consult gland models with appropriate certifications (e.g., explosion-proof or intrinsically safe variants) and ensure alignment with local codes and risk assessments.
CGE296 has a length of 2.64 inches, a width of 1.63 inches, a height of 1.63 inches, and weighs approximately 0.76 pounds. These dimensions support straightforward integration into standard control panels and enclosures while maintaining a compact profile for crowded installations.
The CGE296 supports a cable range of 0.625 to 0.750 inches and is constructed from Feraloy iron alloy, providing robust mechanical strength and durable sealing for non-armoured tray cables in general-purpose applications.
