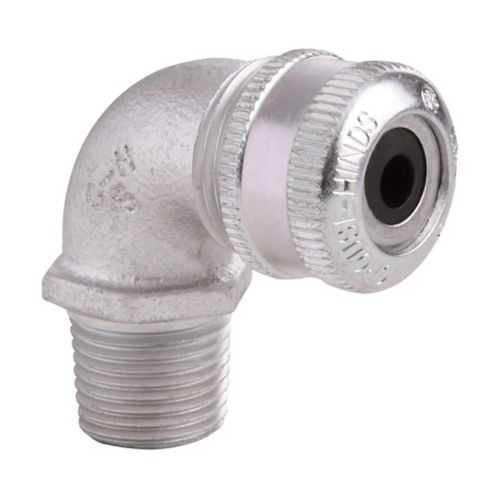

Eaton Crouse-Hinds CGE297 Cable Gland - NEMA 4
Part Number: CGE297
Quick Summary
CGE297 cable gland from Eaton Crouse-Hinds seals tray cables in industrial enclosures, delivering a compact, reliable seal for non-armoured cables. It addresses common pain points like ingress paths, conduit misalignment, and field-tightening variability, reducing rework and downtime during installation and service. This component is NEC/CEC compliant and NEMA 4 rated for Ordinary/Non-Hazardous Locations, providing confidence in performance across typical plant environments. With its 3/4 inch NPT thread and a cable range of 0.750 to 0.875 inches, it integrates smoothly with standard tray-cable installations while minimizing spare parts and inventory costs. This combination supports safer, faster commissioning and lower total cost of ownership for industrial wiring projects.
Product Information
Extended Description
CGE297 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.750-0.875", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 3/4" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE297
Product Length/Depth
2.64 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
0.66 lb
UPC
782274143552
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
90° angle
Thread Size
3/4"
Thread type
NPT
Cable range (min/max)
0.750-0.875"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGE297
Feature nonlinear 1 -> Non-armoured Tray Cable Compatibility → Business Impact → Application: The CGE297 is designed for non-armoured tray cables, delivering a simpler installation path and reducing seal failure modes, which translates to lower field remediation costs in data centers and manufacturing floors. Feature nonlinear 2 -> 90° angle connector → Business Impact → Application: The 90° connector optimizes space in panel mounting and control cabinets, enabling neater cable routing and faster terminations in compact electrical rooms. Feature nonlinear 3 -> 3/4" NPT thread → Business Impact → Application: Standardized mounting threads streamline integration with common enclosures and fittings, cutting cross-compatibility issues in multi-vendor environments. Feature nonlinear 4 -> Feraloy iron alloy material → Business Impact → Application: Superior mechanical strength and corrosion resistance extend service life in harsh factory floors and outdoor-rated installations. Feature nonlinear 5 -> NEMA 4 rating + NEC/CEC compliance → Business Impact → Application: Regulatory-grade protection reduces compliance risk and unplanned downtime across ordinary locations. Feature nonlinear 6 -> Cable range 0.750-0.875" → Business Impact → Application: Precise gland sizing minimizes rework and inventory while supporting typical tray cable specifications in industrial plants.
Get a Quick Quote for a Eaton Crouse-Hinds CGE297
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE297?
Enquire Now
FAQs
When installing CGE297, ensure the 3/4 in NPT thread is properly engaged with the enclosure and tightened to the recommended torque to maintain seal integrity. Route the tray cable to minimize sharp bends, verify the cable range is within 0.750-0.875 in, and use the 90° angle gland to optimize space. Confirm enclosure rating aligns with the Ordinary/Non-Hazardous location requirement.
CGE297 is designed to satisfy NEC/CEC standards and carries a NEMA 4 rating, making it suitable for Ordinary/Non-Hazardous Locations. This combination provides dependable protection against dust and water intrusion while ensuring regulatory compatibility for typical plant environments. Always cross-check local codes and your specific enclosure rating to verify fitment.
Yes. The CGE297 supports tray cables with a range of 0.750 to 0.875 inches and is specifically configured for non-armoured cables. This sizing minimizes the need for adapters or alternative glands, simplifying procurement and reducing stocking complexity in cabling projects.
Documentation includes installation sheets (IF 1826), a Crouse-Hinds gland catalog page, and the CGE297 specification sheet. UL certification references are available in UL listings for non-armoured glands, and NEC/CEC compliance is noted in the standard specifications. These resources support safe installation and regulatory audits in industrial facilities.
CGE297 utilizes a feraloy iron alloy for strong mechanical properties and durability, reducing maintenance needs in demanding environments. Its NEMA 4 rating and NEC/CEC compliance mitigate risk of leaks and non-compliance penalties, while the 3/4" NPT thread and precise cable range simplify replacements and spare-parts planning, delivering lower total cost of ownership over the equipment lifecycle.
