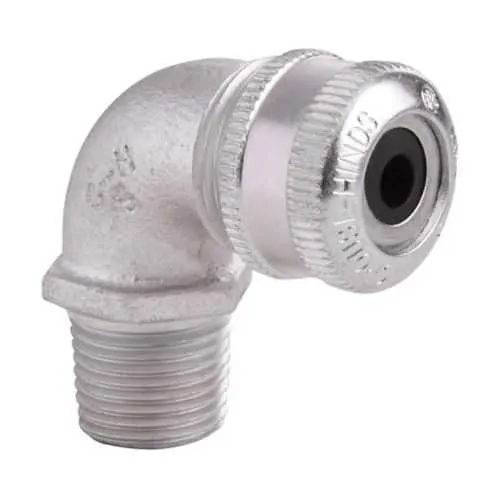

Eaton Crouse-Hinds CGE3239 Cable Gland - NEMA 4
Part Number: CGE3239
Quick Summary
CGE3239 cable gland provides secure, weather-resistant cable entry for non-armoured tray cables in industrial enclosures. Installers often struggle with achieving reliable sealing and protection in harsh factory environments where dust, moisture, and vibration threaten terminations. This gland supports NEC/CEC compliance, carries a NEMA 4 rating, and UL certifications for ordinary/non-hazardous locations, giving you confidence in field performance. Its 0.875-1.000 inch cable range and 1 inch NPT threading enable fast, repeatable terminations with minimal rework. Used with Eaton Crouse-Hinds CG fittings, it reduces maintenance costs and helps ensure consistent protection for critical cabling in automation and process applications.
Product Information
Extended Description
CGE3239 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.875-1.000", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE3239
Product Length/Depth
2.79 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
0.72 lb
UPC
782274145204
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
90° angle
Thread Size
1"
Thread type
NPT
Cable range (min/max)
0.875-1.000"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGE3239
General-purpose design with a non-armoured 90° gland and 1" NPT thread enables straightforward mounting on standard enclosures. This simplifies installation, reduces the need for adapters, and lowers stocking complexity for non-armoured tray cables. The result is faster commissioning and fewer field errors in control panels. Cable range compatibility from 0.875 to 1.000 inches ensures you can standardize on a single gland across typical tray cables, cutting part variety and improving ordering accuracy while minimizing waste. The Feraloy iron alloy construction delivers robust mechanical strength and corrosion resistance, extending service life in damp or oily environments and reducing replacement costs. NEMA 4 and NEC/CEC-aligned design provide regulatory confidence for ordinary locations, supporting compliance-driven maintenance planning. The 90° angle and 1" NPT thread improve routing in tight spaces, enabling clean, repeatable terminations in panel entries and junction boxes.
Get a Quick Quote for a Eaton Crouse-Hinds CGE3239
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE3239?
Enquire Now
FAQs
The CGE3239 is designed for non-armoured tray cables and uses a 1" NPT thread for secure mounting on standard panels and enclosures. Its 90° connector orientation supports tight routing in control cabinets, making it well suited for machines and process equipment where cable entries must fit within limited spaces.
Suitability is driven by the 0.875-1.000 inch cable range, 1" NPT thread, and the gland’s non-armoured construction. The Feraloy iron alloy body adds strength and corrosion resistance, while the 90° angle supports efficient cable entry in confined enclosures, reducing installation time and field adjustments.
The CGE3239 is specified for Ordinary/Non-Hazardous Locations with NEC/CEC compliance and a NEMA 4 rating. For hazardous areas, consider Crouse-Hinds glands rated for such environments, as the CGE3239 is not intended for those conditions.
CGE3239 aligns with NEC/CEC standards and carries a NEMA 4 rating, indicating enclosure protection suitable for non-hazardous environments. UL certification references are available for the non-armoured gland family, supporting compliance verification in US and Canada.
With a robust Feraloy iron alloy body and a reliable 1" NPT gland, you gain longer service life and fewer leaks, reducing maintenance cycles. The standardization on a 0.875-1.000 inch range minimizes parts diversity, speeding up replacements and lowering total cost of ownership in automation and process plants.
