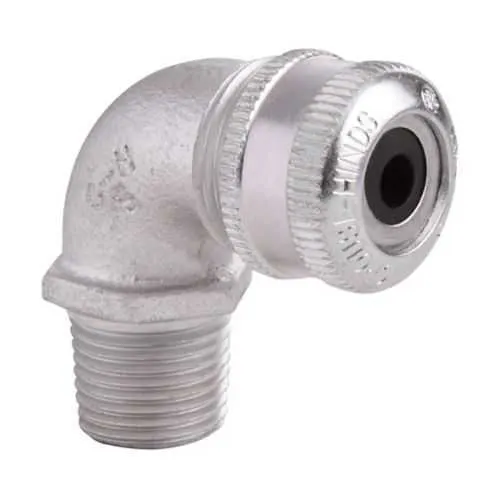

Eaton Crouse-Hinds CGE3911 Cable Gland - NEMA 4
Part Number: CGE3911
Quick Summary
CGE3911 cable gland by Eaton Crouse-Hinds provides secure cable entry for tray cable systems in industrial enclosures. Engineers often struggle with mis-sized glands and poor seals that lead to moisture ingress and downtime; this model addresses that with precise fit and dependable performance. It carries a NEMA 4 rating for weather-protected environments, is designed for ordinary/non-hazardous locations, and complies with NEC/CEC standards. In addition to robust sealing, the gland is suitable for non-armoured and tray cables, offering straightforward installation and long-term reliability. This combination supports safer installations, reduced maintenance, and better total cost of ownership for panel builders and electrical contractors.
Product Information
Extended Description
CGE3911 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 1.188-1.375", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE3911
Product Length/Depth
3.34 in
Product Height
2.37 in
Product Width
2.37 in
Product Weight
1.41 lb
UPC
782274145303
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
90° angle
Thread Size
1"
Thread type
NPT
Cable range (min/max)
1.188-1.375"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGE3911
Feature → Business Impact → Application: The CGE3911 uses a non-armoured gland design that simplifies field installation while maintaining a secure seal, reducing commissioning time and potential entry points for contaminants in tray cable runs. This translates to lower labor costs and fewer call-backs during startup in control cabinets and indoor/outdoor enclosures. The 1" NPT thread size provides standard compatibility with common gland plates and supports quick replacements, minimizing downtime during maintenance. With a 90° angle connector, the gland enables convenient cable routing in tight spaces, enhancing panel density and reducing wiring complexity in commercial and industrial facilities. The Feraloy iron alloy body delivers rugged durability in harsh environments, improving service life in demanding applications like food processing, water treatment, and material handling. The CGE3911 is a general-purpose solution that supports compliant installations under NEC/CEC and NEMA 4, while ensuring compatibility with tray cable types and non-armoured conductors. This combination helps manufacturers meet safety and reliability targets without over-specifying hardware, offering a cost-effective upgrade path for legacy installations and new builds alike.
Get a Quick Quote for a Eaton Crouse-Hinds CGE3911
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE3911?
Enquire Now
FAQs
CGE3911 is specified with a 1" NPT thread and a 90° angle connector, designed for tray cable (non-armoured) installations in ordinary locations. It supports straightforward mounting on gland plates and accepts standard conduit and fittings, enabling quick field installation with a reliable seal.
Yes. CGE3911 is intended for Ordinary/Non-Hazardous Locations, carries NEC/CEC compliance, and has a NEMA 4 rating for weather-protected enclosures, making it suitable for many indoor and outdoor industrial applications.
CGE3911 supports tray cables that are non-armoured, with a cable range of 1.188 to 1.375 inches, suitable for 1" NPT glands and 90° terminated configurations in control panels and equipment enclosures.
The gland body is made from Feraloy iron alloy, offering high strength and corrosion resistance. This ensures long service life in challenging environments such as manufacturing floors, water treatment, and outdoor installations where moisture and dust are factors.
The non-armoured, 90° gland design reduces wiring routing time and simplifies seal replacement, leading to lower maintenance effort and quicker fault rectification. Its robust construction minimizes leakage risks, helping sustain uptime in critical production lines and automated systems.
