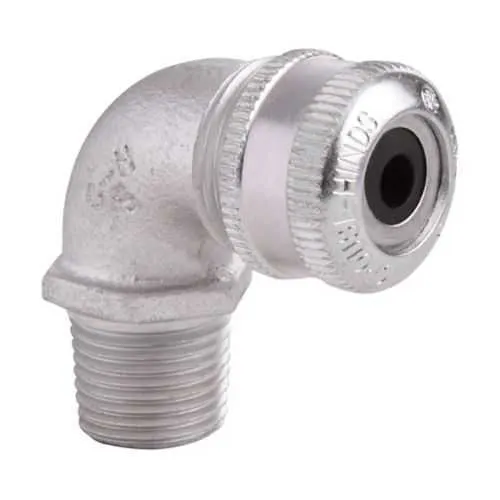

Eaton CGE397 Cable Gland - NEMA 4, 1 in NPT, General Purpose
Part Number: CGE397
Quick Summary
The CGE397 cable gland from Eaton performs general-purpose sealing for tray cables in non-armoured installations. Too often, mismatched gland threads or insufficient enclosure protection lead to leaks and costly maintenance. It meets NEC/CEC standards and carries a NEMA 4 rating for reliable outdoor and harsh-washdown environments, suitable for ordinary/non-hazardous locations. The gland accepts tray cables in the 0.750–0.875 inch range and features a 1 inch NPT thread with a 90° entry, delivering robust ingress protection. By standardizing on CGE397, your installation teams save time, reduce part variants, and improve overall system reliability in industrial facilities.
Product Information
Extended Description
CGE397 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.750-0.875", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE397
Product Length/Depth
2.79 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
0.78 lb
UPC
782274144207
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Connector type
90° angle
Thread Size
1"
Thread type
NPT
Cable range (min/max)
0.750-0.875"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 1826 - CGB, CGD and CGE Connectors
IF 1826 - CGB, CGD and CGE Connectors
Eaton Specification Sheet - CGE397
Feature: 1" NPT thread provides a proven, leak-tight entry that supports a broad range of fittings. Benefit: Reduces resealing work and maintenance costs in control panels and enclosures. Application: Ideal for tray cables in industrial control panels. Feature: 90° angle gland enables compact routing and tidy terminations. Benefit: Speeds up installation and improves enclosure density in tight spaces. Application: Panel wiring in confined electrical cabinets and industrial enclosures. Feature: Cable range 0.750–0.875 inches ensures precise fit for common tray cables. Benefit: Minimizes over‑sizing parts and simplifies sourcing, lowering total cost of ownership. Application: Non-armoured tray cable installations in ordinary locations. Feature: Feraloy iron alloy construction delivers strength and corrosion resistance. Benefit: Prolonged service life in demanding environments reduces replacement cycles. Application: Enclosures in manufacturing floors and outdoor sites. Feature: NEC/CEC compliance and NEMA 4 rating provide documented protection. Benefit: Facilitates procurement and reduces validation time for regulated projects. Application: Industrial facilities requiring reliable ingress protection across non-hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds CGE397
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE397?
Enquire Now
FAQs
CGE397 uses a standard 1" NPT thread and is designed for non-armoured tray cables in ordinary locations, ensuring a compatible, secure seal with Eaton Crouse-Hinds fittings and common enclosure glands.
Key specs include a cable range of 0.750–0.875 inches, a 1" NPT thread, and a 90° angle entry, with non-armoured gland construction suitable for tray cables.
Yes. CGE397 carries a NEMA 4 rating and is intended for ordinary/non-hazardous locations, providing reliable ingress protection in outdoor or washdown-worthy environments.
CGE397 aligns with NEC/CEC standards and is suitable for use in ordinary locations; UL certifications for related glands are available via Eaton’s literature and catalog pages.
By standardizing on CGE397 you reduce part variants, speed up installation, and lower maintenance downtime while ensuring reliable sealing and regulatory compliance in tray cable applications.
