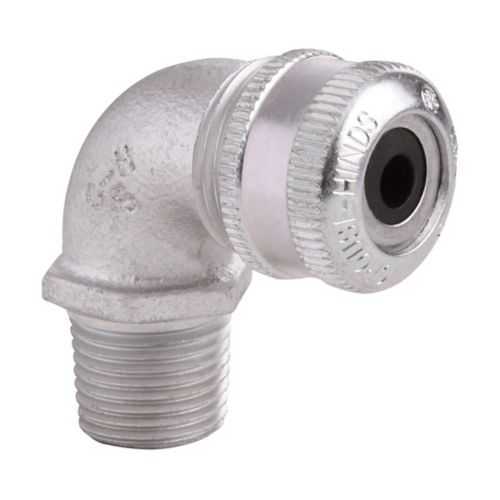

Eaton Crouse-Hinds CGE399 Cable Gland - 1 inch NPT, NEMA 4
Part Number: CGE399
Quick Summary
CGE399 cable gland from Eaton Crouse-Hinds provides rugged sealing for non-armoured tray cables in harsh industrial environments. It simplifies entry protection for general-purpose wiring in factories, warehouses, and outdoor installations where dust, humidity, and vibration are common challenges. This gland carries NEC/CEC standards, a NEMA 4 rating, and ordinary location classification, ensuring reliable performance across a broad range of environments. With a 1 inch NPT thread and a cable range of 1.000–1.188 inches, CGE399 aligns with existing non-armoured tray cable systems, reducing customization. By choosing CGE399, maintenance teams gain faster installation, consistent sealing, and improved compliance, translating to lower total cost of ownership and less downtime for critical production lines.
Product Information
Extended Description
CGE399 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 1.000-1.188", Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1" NPT
Product Name
Eaton Crouse-Hinds series CGE cable gland
Catalog Number
CGE399
Product Length/Depth
3.34 in
Product Height
2.37 in
Product Width
2.37 in
Product Weight
1.47 lb
UPC
782274144603
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Connector type
90° angle
Thread Size
1"
Thread type
NPT
Cable range (min/max)
1.000-1.188"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGE399
Feature: 1 inch NPT thread on a non-armoured CGE399 gland → Business Impact: standard interface with common enclosures reduces installation time and torque uncertainty → Application: quickly field-mits into control panels and enclosures in general-purpose wiring scenarios. Long-tail keywords integrated: non-armoured tray cable gland, 1 inch NPT gland, general-purpose cable entry. Feature: Cable range 1.000–1.188 inches → Business Impact: accommodates typical tray cables without rework, lowering part counts and inventory complexity → Application: panel entries and service drops in manufacturing lines. Feature: 90° angle gland → Business Impact: simplifies routing in tight spaces, minimizing bending stress and cable wear → Application: compact electrical cabinets and motor control centers. Feature: Material: Feraloy iron alloy → Business Impact: increased durability and corrosion resistance in harsh environments → Application: outdoor and wash-down areas with robust sealing requirements. Feature: Certifications and standards: NEC/CEC, NEMA 4, ordinary-location classification → Business Impact: ensures compliance, traceability, and protection in regulated facilities → Application: food & beverage, chemical plants, and facilities with strict safety codes. Feature: Installation compatibility and references → Business Impact: compatible with CG fittings and CGE series accessories, enabling faster commissioning and scalable installations → Application: upgrade projects and multi-side gland entries with existing tray cable systems. Industry context: adoption of standard non-armoured gland solutions reduces maintenance windows and improves lifecycle costs by minimizing gland replacements and troubleshooting time.
Get a Quick Quote for a Eaton Crouse-Hinds CGE399
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGE399?
Enquire Now
FAQs
To install CGE399, align the gland with the enclosure entry, apply appropriate thread sealant, and tighten to the manufacturer’s torque specification. The 90° angle gland routing helps manage cable direction in crowded panels. For step-by-step guidance, refer to the IF 513A CG Fittings Installation sheets provided by Eaton.
CGE399 supports a cable range of 1.000 to 1.188 inches and is designed for non-armoured tray cables. The gland uses a 1 inch NPT thread and a non-armoured gland body, making it ideal for general-purpose wiring in standard industrial enclosures.
Yes. CGE399 is specified for Ordinary/Non-Hazardous locations and carries NEC/CEC standards with a NEMA 4 rating. This combination supports reliable operation in general industrial settings, with protection appropriate for typical dust, humidity, and temperature conditions found in non-hazardous facilities.
CGE399 complies with NEC/CEC standards and NEMA 4 protection. UL certifications for non-armoured CG fittings are available through Eaton’s UL-listed documentation and supplementary catalogs. For installation and compliance details, review the UL certification pages and the Crouse-Hinds non-armoured glands catalog page included in the product resources.
CGE399 offers faster commissioning due to standardized 1 inch NPT threading and 90° routing, reducing field rework. The durable Feraloy iron alloy body minimizes corrosion-related maintenance, while compatibility with tray cables lowers inventory and spare-part costs. Overall, it improves uptime and regulatory compliance for general-purpose panel and enclosure installations.
