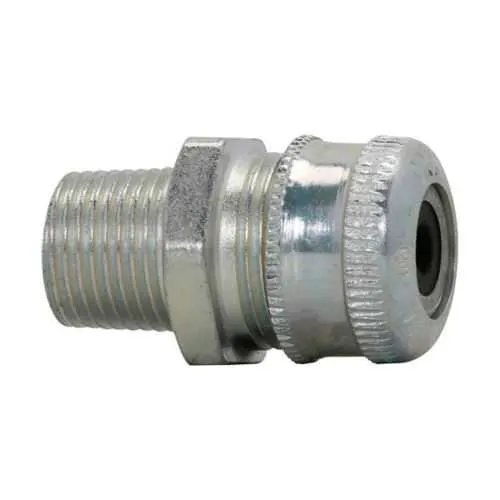

Eaton CGFP1023 Cable Gland - 4" NPT General Purpose
Part Number: CGFP1023
Quick Summary
The Eaton CGFP1023 Cable Gland provides secure sealing for non-armoured tray cable in industrial enclosures. Installing the wrong gland can lead to moisture intrusion, electrical noise, and costly downtime. This gland supports NEC/CEC standards for Ordinary/Non-Hazardous Locations, with UL certification options backing performance. Designed for general-purpose protection and easy integration with standard control panels, it helps streamline installation, reduce maintenance, and lower risk across process and manufacturing environments. Its robust Feraloy iron alloy construction delivers long-term durability in harsh industrial settings, while a 4" NPT thread and non-armoured compatibility with tray cables fit many existing installations, lowering total cost of ownership.
Product Information
Extended Description
CGFP1023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 2.500-3.000", General purpose, 4" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP1023
Product Length/Depth
5.88 in
Product Height
5.5 in
Product Width
5.5 in
Product Weight
9.5 lb
UPC
782274153100
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Thread Size
4"
Thread type
NPT
Outer sheath (min/max)
2.500-3.000"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 66 - CGFP Cable Terminator
IF 66 - CGFP Cable Terminator
Eaton Specification Sheet - CGFP1023
Feature: 4" NPT thread on the CGFP1023 gland provides direct compatibility with standard enclosure fittings. Business Impact: simplifies procurement and installation, reducing project lead times and minimizing over-torque risks that can damage threads. Application: ideal for non-armoured tray cable in control panels and field enclosures. Feature: Feraloy iron alloy body delivers rugged durability. Business Impact: enhances corrosion resistance and long-term reliability in harsh factory environments. Application: process lines, machine rooms, and outdoor-rated enclosures. Feature: Outer sheath compatibility 2.500–3.000 inches. Business Impact: supports a wide range of tray cable diameters, enabling versatile usage across installations. Application: non-armoured tray cable sealing in general purpose applications. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location suitability. Business Impact: regulatory alignment reduces audit risk and qualification time. Application: multinational facilities needing compliant electrical penetration protection. Feature: Documentation and installation support including UL certification options. Business Impact: speeds approvals and maintenance planning, lowering lifecycle costs. Application: procurement, commissioning, and service teams across industrial plants.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP1023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP1023?
Enquire Now
FAQs
To install CGFP1023, ensure enclosure threads are compatible with 4" NPT fittings and prepare the non-armoured tray cable end. Fit the gland into the enclosure, seat the gasket, and tighten the nut uniformly until a secure seal is achieved without over-tightening. Verify outer sheath diameter falls within the 2.500–3.000 inch range and perform a basic continuity and ingress test after assembly to confirm enclosure integrity.
CGFP1023 is specified for Ordinary/Non-Hazardous Locations under NEC/CEC standards, ensuring appropriate protection for common plant environments. Its non-armoured design is optimized for tray cables used in general-purpose applications, reducing unnecessary armor-related complexity while delivering reliable sealing, regulatory compliance, and straightforward maintenance.
Key specs include: material is Feraloy iron alloy; gland type is Non-armoured; cable type is Non-armoured Tray Cable; thread size is 4 inches with NPT thread type; outer sheath range 2.500–3.000 inches; product length 5.88 inches; height and width 5.5 inches; weight 9.5 lb; UPC 782274153100; standards NEC/CEC; area classification Ordinary/Non-Hazardous Locations.
Yes. The rugged Feraloy alloy and precise NPT threading provide durable seals that resist moisture ingress and vibration, reducing leakage risk and rework. The gland’s compatibility with common tray cables and standard fittings shortens commissioning time, while NEC/CEC compliance minimizes regulatory overhead, contributing to lower total cost of ownership over the product’s service life.
You can access UL certification reports, installation instructions (IF66 CGFP Cable Terminator references), brochures, and the Eaton specification sheet for CGFP1023 from Eaton’s Conduit & Cable Management literature library. These documents support compliance verification, proper installation, and supplier audits in industrial environments.
