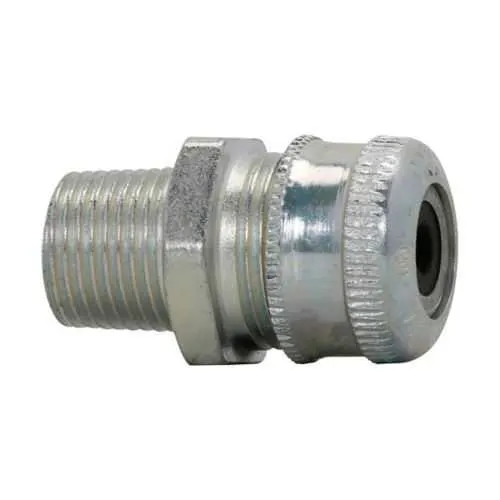

Eaton CGFP1027 Cable Gland - NEC/CEC
Part Number: CGFP1027
Quick Summary
CGFP1027 cable gland provides reliable sealing for tray cable installations in industrial facilities. Many engineers struggle with moisture ingress and cable movement in non-armoured gland applications, leading to maintenance downtime. This unit is designed to NEC/CEC-compliant operation for ordinary and non-hazardous locations and UL-certified, with documentation available in the downloads. Its general-purpose design with a 4 in NPT thread supports quick, secure installations across panels and enclosures, delivering predictable performance. Choosing this gland reduces startup delays and maintenance costs, while aligning with tray cable systems to simplify procurement and regulatory compliance across facilities.
Product Information
Extended Description
CGFP1027 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 3.000-3.500", General purpose, 4" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP1027
Product Length/Depth
5.88 in
Product Height
5.5 in
Product Width
5.5 in
Product Weight
9.2 lb
UPC
782274153209
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
4"
Thread type
NPT
Outer sheath (min/max)
3.000-3.500"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 66 - CGFP Cable Terminator
IF 66 - CGFP Cable Terminator
Eaton Specification Sheet - CGFP1027
Feraloy iron alloy construction delivers rugged durability and resistance to corrosion in harsh industrial environments, extending service life and reducing replacement costs. This material choice directly improves uptime for tray cable glands installed in outdoor enclosures and plant rooms where aggressive conditions are common. Non-armoured gland design simplifies installation and lowers upfront costs without compromising sealing performance. By eliminating armour-specific fittings, maintenance teams can complete terminations faster and reduce inventory complexity in multi-line facilities. 4 in NPT thread provides compatibility with standard conduit interfaces and enclosure fittings, enabling rapid integration into existing systems. The gland's sizing, along with an outer sheath range of 3.000–3.500 in, ensures a secure seal for typical tray cable jackets while accommodating minor diameter variation. General purpose protection type meets NEC/CEC expectations for ordinary locations, supporting compliance during audits and reducing risk of non-conforming installations. UL certification documentation backs this claim, giving procurement teams confidence in supplier qualification and traceability. Compatibility with Eaton Crouse-Hinds CGFP family concerns: this gland page references the CGFP1027 within non-armoured, tray cable glands catalog. In practice, you can scale from this unit to other sizes without changing mating fittings, improving standardization and stocking across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP1027
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP1027?
Enquire Now
FAQs
To install CGFP1027, verify the gland’s 4 in NPT thread matches your enclosure, prepare the tray cable entry, position the gland seal, and tighten to the recommended torque. Ensure the outer sheath diameter sits within the 3.000–3.500 in range for a secure seal. Finally, verify ingress protection and cable retention through a simple pull test to confirm a compliant installation.
Key specs include a 4 in NPT thread, a non-armoured gland type for tray cable, and a Feraloy iron alloy body. The outer sheath accommodates cable jackets with a diameter range of 3.000–3.500 inches, providing a robust seal in ordinary-location environments while maintaining compatibility with standard conduits and fittings.
Yes. CGFP1027 is designed for Ordinary/Non-Hazardous Locations and NEC/CEC-compliant installations. Its non-armoured configuration and general-purpose protection type make it well-suited for general industrial wiring using tray cables, where reliable sealing and straightforward installation are priorities.
CGFP1027 supports NEC/CEC standards for general-purpose use and is UL-certified, with documentation available in Eaton’s literature. The product is intended for ordinary locations, and the UL documentation provides traceability and qualification support for procurement and audits.
Benefits include reduced maintenance downtime due to reliable sealing and easier installation with a non-armoured design that lowers labor time. The rugged Feraloy iron alloy construction extends service life in harsh environments, while NEC/CEC compliance and UL certification help minimize risk and streamline procurement, delivering a lower total cost of ownership over the life of tray cable installations.
