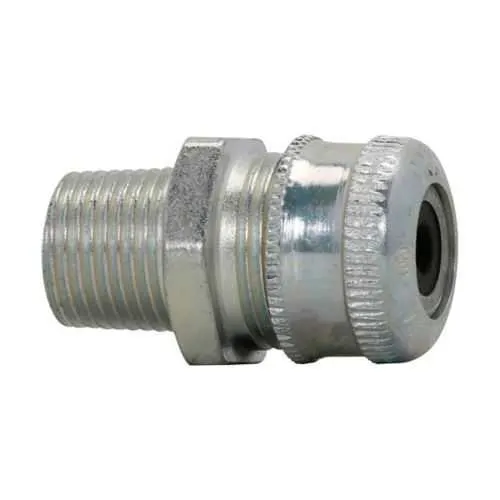

Eaton CGFP194 Cable Gland - 1/2 in NPT NEC/CEC
Part Number: CGFP194
Quick Summary
CGFP194 cable gland provides a rugged seal for non-armoured tray cables in industrial enclosures. This non-armoured gland helps prevent dust ingress, cable movement, and moisture leaks that can compromise enclosure integrity. It meets NEC/CEC standards and UL certification for ordinary/non-hazardous locations, supporting safe North American installations. With a steel body, a 1/2 in NPT thread, and compatibility with 0.375–0.500 in outer sheath, it simplifies selection and retrofit. Choosing CGFP194 delivers fast installs, reliable protection, and long-term cost savings for control panels, machinery enclosures, and other industrial wiring applications.
Product Information
Extended Description
CGFP194 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Steel, Outer sheath min/max: 0.375-0.500", General purpose, 1/2" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP194
Product Length/Depth
2.13 in
Product Height
1.28 in
Product Width
1.28 in
Product Weight
0.2 lb
UPC
782274152103
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Thread Size
1/2"
Thread type
NPT
Outer sheath (min/max)
0.375-0.500"
Material
Steel
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 66 - CGFP Cable Terminator
IF 66 - CGFP Cable Terminator
Eaton Specification Sheet - CGFP194
Feature: General specifications include model CGFP194, length 2.13 in, height 1.28 in, width 1.28 in, and weight 0.2 lb. Business Impact: Predictable footprint and BOM accuracy reduce planning errors and inventory waste. Application: Ideal for compact control panels and cabinet assemblies requiring a precise non-armoured tray cable gland. Feature: Steel construction offers robust mechanical protection. Business Impact: Enhanced durability and resistance to light corrosion in typical plant environments, lowering maintenance costs. Application: Suitable for industrial enclosures exposed to dust and vibration. Feature: 1/2" NPT gland thread. Business Impact: Standardized fittings streamline installation and cross-compatibility with common conduits, reducing field time. Application: Fast integration in junction boxes and panel feeders. Feature: Outer sheath compatibility 0.375–0.500 in. Business Impact: Accommodates a range of tray cables without custom glands, reducing part variety and inventory. Application: Widely used in general-purpose wiring of machines and panels. Feature: Non-armoured, general-purpose gland for tray cables. Business Impact: Simplified procurement and reliable sealing for ordinary locations. Application: Control systems, motor starters, and machine enclosures needing NEC/CEC compliance and UL reference.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP194
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP194?
Enquire Now
FAQs
CGFP194 is designed specifically for non-armoured tray cables with a 1/2 in NPT thread. It provides a secure, mechanical seal and reliable ingress protection in ordinary locations. This compatibility reduces the need for adapters and simplifies stocking, allowing faster wiring upgrades in control panels and machine enclosures.
To maintain NEC/CEC compliance, install CGFP194 in non-hazardous, ordinary locations as rated, using the correct 1/2 in NPT entry, and ensuring the gland is properly tightened to achieve the specified outer sheath range (0.375–0.500 in). Follow Eaton installation sheets for torque and testing procedures to avoid leaks and maintain enclosure integrity.
Yes. CGFP194 is referenced in UL certification materials for non-armoured glands and is compatible with NEC/CEC standards for ordinary locations. This UL certification supports regulatory compliance for control panels, junction boxes, and machinery enclosures, reducing qualification time during audits and improving safety confidence.
CGFP194 is specified to accommodate outer sheath diameters from 0.375 to 0.500 inches. This range covers typical non-armoured tray cables, enabling a single gland to service multiple cable sizes. For multiple cables, verify the sheath diameter on each run and confirm compatibility before finalizing installation in panels.
Using CGFP194 delivers faster installation, reduced part variety, and a reliable seal that minimizes rework from leaks or ingress. The steel body offers long-term durability in ordinary locations, lowering maintenance costs. Its NEC/CEC compliance and UL references also streamline audits and documentation, contributing to lower total cost of ownership in control cabinets and automation equipment.
