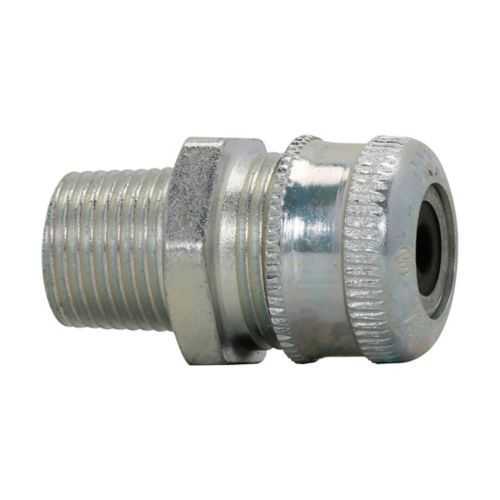

Eaton CGFP3239 Cable Gland - 1\" NPT General Purpose
Part Number: CGFP3239
Quick Summary
CGFP3239 cable gland from Eaton Crouse-Hinds provides secure, field-ready cable entry for tray cables in industrial control panels. This gland addresses installation challenges such as accommodating non-armoured tray cable while ensuring a tight seal and reliable strain relief. It meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, supporting safety and compliance across diverse facilities. The steel construction adds durability in harsh environments, while the 1\" NPT thread enables sturdy, universal mounting. By choosing this gland for non-armoured tray cables, maintenance costs are reduced and future upgrades become simpler. The CGFP3239 pairs with standard CGF fittings and installation instructions to streamline onboarding and downstream procurement.
Product Information
Extended Description
CGFP3239 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Steel, Outer sheath min/max: 0.875-1.000", General purpose, 1" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP3239
Product Length/Depth
2.69 in
Product Height
1.78 in
Product Width
1.78 in
Product Weight
0.62 lb
UPC
782274153506
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
1"
Thread type
NPT
Outer sheath (min/max)
0.875-1.000"
Material
Steel
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGFP3239
Feature — Compact, balanced dimensions (2.69 in L, 1.78 in W, 1.78 in H) and a light 0.62 lb weight keep enclosure space manageable. Business Impact — Easier routing, faster installation, and reduced cabinet footprint translate into lower labor costs and more room for future wiring. Application — Suitable for control panels and downstream junction boxes in automation environments where space is at a premium. Feature — 1\" NPT thread size with non-armoured gasket interface. Business Impact — Enables compatibility with standard hubs and existing installation practices, reducing part variety and procurement overhead. Application — Ideal for panel entries in machines using tray cables and upright conduits. Feature — Steel construction offers robust mechanical protection and longevity in industrial settings. Business Impact — Enhanced resistance to impact and wear lowers maintenance intervals and replacement costs. Application — Performs reliably in harsh manufacturing floors, warehouses, and process lines. Feature — Cable type compatibility: tray cable non-armoured with outer sheath 0.875–1.000 inches. Business Impact — Ensures correct fit and sealing for common tray cables, avoiding over-sizing or leaks. Application — Directly supports Eaton non-armoured tray cable gland installations in automation wiring. Feature — Certifications: NEC/CEC standards and Ordinary/Non-Hazardous Locations classification. Business Impact — Regulatory alignment reduces risk of non-compliance penalties and supports safe, certified wiring. Application — Used where NEC/CEC compliance and ordinary-location operation are required in industrial facilities. Feature — Availability of installation resources such as IF513A CG fittings instructions and datasheet. Business Impact — Streamlines onboarding for technicians and accelerates project timelines. Application — Integrates with Eaton CGF fitting family for consistent gland assemblies.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP3239
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP3239?
Enquire Now
FAQs
The CGFP3239 is a non-armoured steel cable gland designed to seal and protect tray cables entering enclosures and panels. It uses a 1" NPT thread to mate with standard hubs, providing strain relief and environmental protection in ordinary locations per NEC/CEC. It supports cable sheath sizes from 0.875 to 1.000 inches, making it suitable for common tray cables without armour.
CGFP3239 uses a 1 inch NPT thread and is constructed from steel, delivering high durability and secure sealing in industrial settings. The gland’s non-armoured design is intended for tray cables with outer sheath dimensions within 0.875 to 1.000 inches, supporting robust installations.
Yes. The gland is designed for Ordinary/Non-Hazardous Locations and aligns with NEC/CEC standards, ensuring compliant installations in typical factory floors, control rooms, and process areas. Its steel construction and general purpose protection type help meet common industry requirements while maintaining ease of installation.
CGFP3239 is explicitly specified for tray cables without armour, offering a non-armoured gland interface with a 1" NPT thread. This reduces complexity and part variety, while providing reliable strain relief and sealing in standard electrical enclosures.
Official resources include the IF513A installation sheets and the CGFP datasheet from Eaton, along with the Crouse-Hinds catalog page. These documents guide proper gland mounting, sealing practices, and compatibility with CGF fittings to streamline project rollout.
