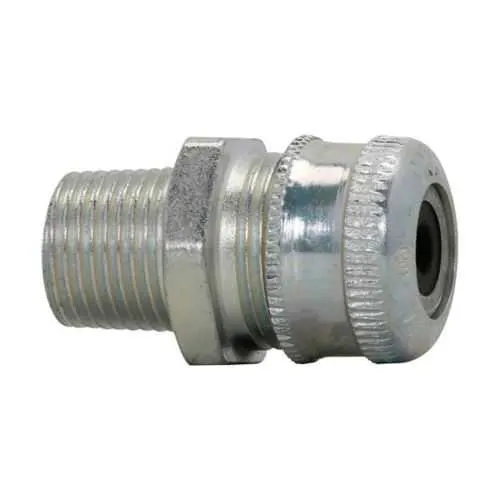

Eaton CGFP396 Cable Gland - 1 in NPT General Purpose
Part Number: CGFP396
Quick Summary
CGFP396 cable gland from Eaton Crouse-Hinds provides robust sealing for non-armoured tray cables in general industrial installations. Maintenance teams often struggle with moisture ingress, cable strain, and mis-sized gland fittings in harsh environments. UL certification, NEC/CEC compliance, and suitability for Ordinary/Non-Hazardous locations help ensure safety and regulatory adherence. By standardising on CGFP396, buyers gain installation efficiency, reduced downtime, and predictable performance across panels, robotics, and machinery installations. Designed for 1 in NPT threads and steel construction, CGFP396 accommodates non-armoured tray cables with outer sheath ranges of 0.625 to 0.750 inches. Engineers value its compatibility with the Crouse-Hinds CG fittings ecosystem, simplifying stocking, spares, and overall project commissioning while meeting NEC/CEC installation standards.
Product Information
Extended Description
CGFP396 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Steel, Outer sheath min/max: 0.625-0.750", General purpose, 1" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP396
Product Length/Depth
2.69 in
Product Height
1.78 in
Product Width
1.78 in
Product Weight
0.5 lb
UPC
782274152509
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Thread Size
1"
Thread type
NPT
Outer sheath (min/max)
0.625-0.750"
Material
Steel
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGFP396
Feature is General purpose, providing versatile sealing for non-armoured tray cables. Business impact: reduces the need for multiple gland types, lowering inventory and procurement time. Application: suitable for general-purpose control panels and machine wiring where 1 inch NPT threads and steel glands are preferred. Feature is steel construction, delivering higher mechanical protection in industrial environments. Business impact: improves resistance to recurring vibration and physical wear, extending component life and lowering maintenance costs. Application: ideal for rugged factory floors and outdoor installations where shielding matters. Feature is outer sheath 0.625-0.750 inches, enabling compatibility with a range of non-armoured tray cables. Business impact: simplifies cable sizing and reduces rework during panel upgrades. Application: panel retrofits and new builds with mixed cabling. Feature is non-armoured, cost-effective gland type with general purpose protection. Business impact: minimizes upfront capital expenditure while meeting NEC/CEC compliance. Application: budget-conscious projects needing compliant, easy-to-install fittings. Feature is UL certification and NEC/CEC compliance, plus Ordinary/Non-Hazardous location suitability. Business impact: lowers risk, supports regulatory approvals, and shortens validation cycles. Application: electrical installations in standard industrial settings. Feature is ecosystem compatibility with CG fittings, enabling streamlined stocking. Business impact: reduces spare parts complexity and accelerates commissioning. Application: projects leveraging Eaton’s gland family for fast deployment.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP396
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP396?
Enquire Now
FAQs
CGFP396 supports non-armoured tray cables with an outer sheath of 0.625-0.750 inches and uses a 1 in NPT threaded entry in a steel body. For proper installation, refer to the CG Fittings Installation (IF 513A) and follow torque guidelines to ensure a reliable seal, then verify ingress protection in the final enclosure.
Core specs include thread size of 1 inch, NPT threading, steel gland material, outer sheath range 0.625-0.750 inches, product length 2.69 inches, width 1.78 inches, height 1.78 inches, and weight about 0.5 pounds. It is designed for non-armoured, tray cable applications with general-purpose protection.
Yes. CGFP396 is UL certified and NEC/CEC compliant, with suitability for Ordinary/Non-Hazardous locations. This combination supports safe operation, regulatory adherence, and smoother procurement for controlled environments and panel builds.
CGFP396 is intended for general-purpose sealing of non-armoured tray cables in control panels, machinery, and factory automation. Its 1 in NPT gland and steel construction provide robust protection in ordinary locations, enabling reliable cable entry points and straightforward upgrades during equipment modernization.
Using CGFP396 can reduce downtime due to fewer gland mismatches, simplify inventory with a single-assembly solution, and improve commissioning speed. The UL/NEC/CEC compliance also minimizes risk during audits, leading to lower inspection-related disruptions and faster project handover.
