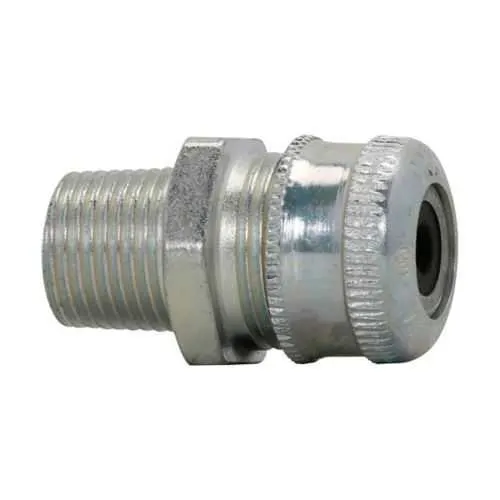

Eaton Crouse-Hinds CGFP397 Cable Gland - NEC/CEC
Part Number: CGFP397
Quick Summary
CGFP397 is a general-purpose cable gland for tray cables used in industrial enclosures. Shop floor engineers often struggle to find a gland that fits a 1" NPT thread while accommodating an outer sheath range of 0.750-0.875 inches and delivering a reliable seal. This CGFP397 meets NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations; UL certification references are available for US and Canada. Built from steel, it provides robust protection for non-armoured tray cables in general-purpose installations. By standardizing on CGFP397, facilities can reduce part variety, accelerate approvals, and maintain consistent installation quality across multiple panels and locations.
Product Information
Extended Description
CGFP397 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Steel, Outer sheath min/max: 0.750-0.875", General purpose, 1" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP397
Product Length/Depth
2.69 in
Product Height
1.78 in
Product Width
1.78 in
Product Weight
0.64 lb
UPC
782274152608
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
1"
Thread type
NPT
Outer sheath (min/max)
0.750-0.875"
Material
Steel
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGFP397
Feature: 1" NPT thread size and non-armoured gland type provide a straightforward fit for tray cables entering enclosures. Business Impact: simplifies procurement and reduces field adaptation, cutting escalation time. Application: ideal for standard control panels and machine enclosures in general-purpose environments. Feature: Outer sheath range of 0.750-0.875 inches ensures secure gripping and seal integrity. Business Impact: minimizes leakage paths and rework due to misfit, improving overall enclosure reliability. Application: suitable for non-armoured tray cable in demanding production lines. Feature: Steel construction delivers mechanical strength and corrosion resistance. Business Impact: extends gland life in industrial settings and lowers maintenance costs. Application: harsh or high-throughput environments where reliability matters. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating provide regulatory confidence. Business Impact: reduces compliance risk and speeds panel approvals. Application: installations across facilities following North American electrical standards. Feature: Availability of installation resources such as IF 513A CG Fittings Instructions and Eaton datasheets. Business Impact: lowers commissioning time and ensures correct torque and sealing practices. Application: field technicians seeking fast, repeatable, code-compliant gland installations.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP397
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP397?
Enquire Now
FAQs
To install CGFP397, align the gland to the enclosure opening, insert the non-armoured tray cable, and tighten the 1" NPT threaded fitting to specification. Refer to installation sheets IF 513A for CG fittings and ensure the outer sheath is within the 0.750-0.875 in range. Use appropriate torque to avoid over-compression and maintain seal integrity.
Yes. CGFP397 is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it appropriate for standard industrial environments where non-armoured tray cables are used, helping meet regulatory requirements and reducing compliance risk.
Key specs include 1 in thread size (NPT), steel material, non-armoured gland type, and outer sheath range of 0.750-0.875 in. Cable type is tray cable non-armoured, with dimensions around 2.69 in length, 1.78 in height, and 1.78 in width; weight is approximately 0.64 lb. UPC 782274152608 supports easy cataloging.
CGFP397 has UL certification references available in the product downloads. Datasheets and brochures, including the Eaton Specification Sheet CGFP397, can be accessed to verify compliance, performance, and installation guidance for US and Canada.
For proper installation, consult IF 513A CG Fittings Installation and the Eaton specification sheets. These documents provide step-by-step guidance, torque recommendations, and sealing best practices to ensure reliable ingress protection and long service life for non-armoured tray cables.
