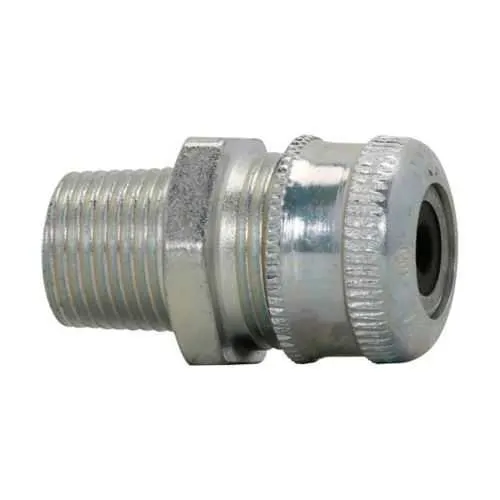

Eaton Crouse-Hinds CGFP499 Cable Gland - General Purpose
Part Number: CGFP499
Quick Summary
CGFP499 cable gland from Eaton Crouse-Hinds provides reliable sealing for tray cables in general-purpose installations. Engineers often struggle with matching non-armoured tray cables to gland threads while maintaining enclosure integrity and regulatory compliance. This CGFP499 meets NEC/CEC standards and UL certification, and is suitable for Ordinary/Non-Hazardous locations, supporting safer, more durable installations. By delivering a consistent fit, proven material performance, and clear installation guidance, it reduces field troubleshooting and accelerates project timelines for non-armoured tray cable systems.
Product Information
Extended Description
CGFP499 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 1.000-1.188", General purpose, 1-1/4" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP499
Product Length/Depth
3.31 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.28 lb
UPC
782274152707
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
1-1/4"
Thread type
NPT
Outer sheath (min/max)
1.000-1.188"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGFP499
Feature: Feraloy iron alloy construction provides rugged resistance to corrosion and physical damage. Business Impact: Extends service life and lowers maintenance costs in demanding environments. Application: General-purpose tray cable glands in industrial facilities where durability matters.\n\nFeature: Non-armoured gland design with a 1-1/4" NPT thread simplifies integration with standard tray cable systems. Business Impact: Reduces installation time and compatibility risk, enabling faster panel and conduit assemblies. Application: Quick field retrofits and new builds with non-armoured tray cables.\n\nFeature: Outer sheath compatibility from 1.000 to 1.188 inches ensures secure gland-to-cable contact. Business Impact: Improves ingress protection and seal integrity, lowering rework due to fit issues. Application: Sealing non-armoured tray cables across varied sheath diameters.\n\nFeature: NEC/CEC compliance with Ordinary/Non-Hazardous location certification provides regulatory assurance. Business Impact: Helps meet code requirements, easing audits and approvals. Application: Industrial plants and facilities following NEC/CEC standards.\n\nFeature: Comprehensive documentation and installation support including IF 513A installation guidance and Eaton catalogs. Business Impact: Reduces design and installation risk, shortens commissioning time. Application: New installations and refurbishment projects requiring documented best practices.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP499
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP499?
Enquire Now
FAQs
CGFP499 uses a 1-1/4" NPT thread and a non-armoured gland design, making it directly compatible with standard tray cables in ordinary, non-hazardous locations. Its outer sheath range (1.000–1.188 inches) supports a reliable seal across common cable diameters, reducing the need for adapters or custom fittings during field installs.
Key specs include a 1-1/4" NPT thread size, non-armoured gland type, outer sheath range of 1.000–1.188 inches, and material construction from Feraloy iron alloy. The product is listed under NEC/CEC standards and rated for Ordinary/Non-Hazardous locations, with UL certification documentation available for validation.
No. The CGFP499 is specified for Ordinary/Non-Hazardous Locations. For projects requiring protection in hazardous areas, additional glands rated for those classifications must be selected to ensure code compliance and safety.
Support materials include the IF 513A installation instructions, Crouse-Hinds non-armoured glands catalog pages, the Crouse-Hinds tray cable glands brochure, and the CGFP499 specification sheet. UL certification pages and product brochures provide regulatory validation and installation guidance to streamline approvals.
Using CGFP499 delivers reliable sealing for non-armoured tray cables, reduces commissioning time with clear installation guidance, and ensures NEC/CEC compliance and UL certification. This translates to lower risk of leaks, faster approvals, and longer service life in general-purpose industrial installations.
