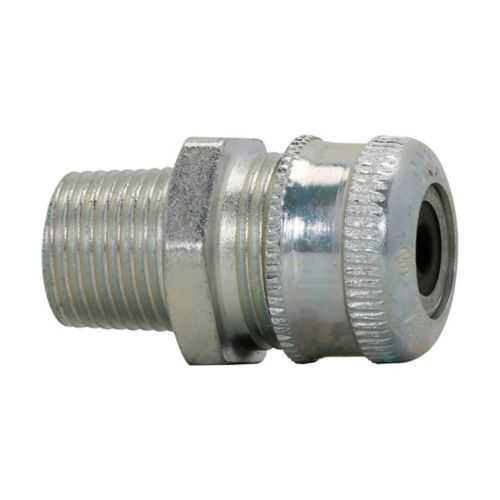

Eaton Crouse-Hinds CGFP5911 Cable Gland - NEC/CEC
Part Number: CGFP5911
Quick Summary
Eaton Crouse-Hinds CGFP5911 cable gland delivers reliable sealing for non-armoured tray cables in industrial enclosures. Engineers often struggle with balancing fast, code-compliant entries against installation complexity and downtime; this gland addresses that with a robust 1-1/2 inch NPT thread and a Feraloy iron alloy body designed for durability. It is designed to meet NEC/CEC standards and UL certifications, making it suitable for Ordinary/Non-Hazardous Locations while simplifying procurement and field maintenance. With general-purpose protection and compatibility with tray cables, CGFP5911 provides a practical, long-term solution that reduces rework and supports streamlined installation in electrical cabinets and control panels. Secondary considerations such as installation instructions and datasheets are readily accessible to support commissioning and ongoing maintenance.
Product Information
Extended Description
CGFP5911 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 1.188-1.375", General purpose, 1-1/2" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP5911
Product Length/Depth
3.31 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
6.15 lb
UPC
782274153704
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
1-1/2"
Thread type
NPT
Outer sheath (min/max)
1.188-1.375"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGFP5911
Feature → Business Impact → Application: The CGFP5911 uses a Feraloy iron alloy body that resists impact and corrosion in harsh environments, delivering long service life and reduced replacement costs on busy factory floors. This directly benefits maintenance budgets by lowering total cost of ownership while enabling reliable enclosure entries for tray cables in non-hazardous spaces. Application-wise, it supports general-purpose protection for non-armoured tray cables in control panels, machine enclosures, and distribution pathways, improving uptime and safety compliance. Feature → Business Impact → Application: The 1-1/2" NPT thread provides a universally compatible sealing interface with standard conduit fittings, enabling faster installs and interchangeability across projects, which reduces engineering time and procurement complexity. This is especially valuable for OEMs and integrators who standardize on CGFP fittings for fast-tracked assemblies. Feature → Business Impact → Application: Outer sheath compatibility specified at 1.188–1.375" and non-armoured gland design simplifies cable preparation and gland alignment, cutting wiring errors and rework, while ensuring consistent ingress protection at entry points. Feature → Business Impact → Application: NEC/CEC compliance and UL certification support regulatory alignment and customer audits, minimizing risk during commissioning and ensuring project timelines stay intact for facilities in Ordinary/Non-Hazardous Locations. Feature → Business Impact → Application: The CGFP5911 cataloged specifications—Product Length/Depth 3.31 in, Height 2.25 in, Width 2.25 in, and Weight 6.15 lb—provide clear installation envelopes, improving stocking accuracy and on-site planning. Feature → Business Impact → Application: Access to installation instructions IF 513A and the Eaton specification sheet enables technicians to perform correct fittings without guesswork, lowering service calls and accelerating time-to-operational readiness. Feature → Business Impact → Application: The non-armoured, general-purpose protection type aligns with common industrial tray cable configurations, supporting versatile use across multiple non-hazardous environments and reducing the need for variant gland types across plants.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP5911
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP5911?
Enquire Now
FAQs
Yes. CGFP5911 is designed specifically for non-armoured tray cables and uses a 1-1/2 inch NPT thread, matching common gland and conduit interfaces. Its non-armoured gland design simplifies cable entry and reduces installation time while maintaining secure sealing in typical factory enclosures.
CGFP5911 complies with NEC/CEC standards and is listed for Ordinary/Non-Hazardous Locations. UL certification is supported via the referenced UL documentation, providing assurance during regulatory audits and customer approvals.
Key specs include a 1-1/2" NPT thread, outer sheath range of 1.188–1.375", body material of Feraloy iron alloy, length 3.31 in, height 2.25 in, width 2.25 in, and weight 6.15 lb. It is intended for general-purpose protection of non-armoured tray cables.
By providing a robust, code-compliant entry for non-armoured tray cables, CGFP5911 reduces rework, minimizes field failures, and simplifies audits. The NEC/CEC alignment and UL certification support ongoing regulatory compliance and safer, faster commissioning.
Relevant resources include IF 513A CG fittings installation sheets and the Eaton CGFP5911 specification sheet available on Eaton’s site, plus UL certification pages for non-armoured CG glands. These documents guide proper installation and verification during commissioning.
