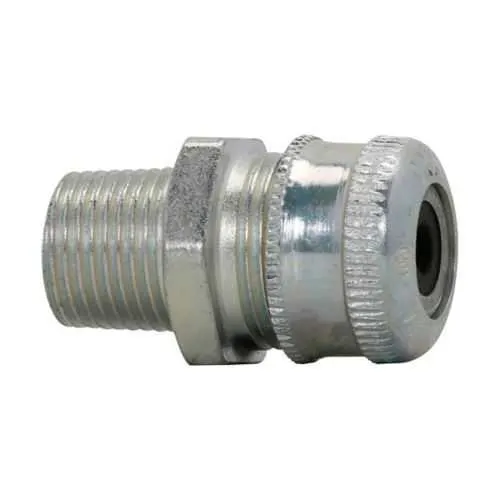

Eaton Crouse-Hinds CGFP6913 Cable Gland - General purpose, 2" NPT (NEC/CEC)
Part Number: CGFP6913
Quick Summary
CGFP6913 cable gland provides a secure, sealed entry for tray cables in industrial control panels. Unsealed glands risk moisture ingress and conduit leaks, leading to downtime and costly repairs. Certified for NEC/CEC compliance and UL-listed for U.S. and Canadian use, CGFP6913 supports safe, compliant installations. Its general-purpose protection, 2" NPT thread, and Feraloy iron alloy body deliver reliable performance with tray cables in control rooms and outdoor environments. By matching tray cable gland specifications, it reduces installation steps and inventory variety for panel builders and integrators everywhere.
Product Information
Extended Description
CGFP6913 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 1.375-1.625", General purpose, 2" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP6913
Product Length/Depth
4.25 in
Product Height
3.25 in
Product Width
3.25 in
Product Weight
2.61 lb
UPC
782274153803
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
2"
Thread type
NPT
Outer sheath (min/max)
1.375-1.625"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGFP6913
Feature: Feraloy iron alloy body delivers superior corrosion resistance and rugged durability. Business impact: extended service life, lower maintenance costs, and reduced warranty claims in challenging environments. Application: ideal for tray cable glands installed in control panels, outdoor enclosures, and areas with exposure to moisture, dust, or vibration. Feature: Standard 2" NPT thread simplifies integration with common conduit systems. Business impact: reduces sourcing complexity and field modifications, speeding up commissioning. Application: ideal for panel builders and field service teams that require quick gland mounting without adapters. The robust thread tolerances improve seal integrity, minimizing rework during installation. This supports scalable deployment across multiple lines with consistent results. Feature: Outer sheath compatibility 1.375-1.625" supports varied tray cable diameters. Business impact: reduces the need for different gland sizes on site, cutting inventory and advancing project timelines. Application: suitable for mixed cabling runs in industrial facilities where tray cables of different sheath diameters are routed through same gland. Standardization lowers procurement costs and simplifies training for maintenance staff in ongoing plant expansions. Feature: Non-armoured gland design tailored for tray cables eliminates armour-specific fittings and simplifies integration. Business impact: reduces component count, minimizes installation time, and lowers spare parts inventory for project teams. Application: ideal for general-purpose installations in ordinary locations, where tray cables are routed through enclosures, panels, and cable trays. This approach supports faster start-ups and easier training for new technicians everywhere. Feature: NEC/CEC compliance and UL certification provide assurance for North American installations. Mitigates regulatory risk, simplifies procurement, and smooths audits. Suitable for panel builders in manufacturing, water treatment, and mining sectors. Coupled with the 2" NPT thread and outer sheath range, it delivers consistent performance across line upgrades projects and field repairs. This creates a faster, more reliable path to commissioning and maintenance.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP6913
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP6913?
Enquire Now
FAQs
Yes. The CGFP6913 uses a 2" NPT thread designed to mate with common conduit fittings, and it is intended for non-armoured tray cables. Its outer sheath range of 1.375–1.625" and the 2" NPT gland create a straightforward, field-friendly installation path with minimal adapters and adjustments.
CGFP6913 offers general-purpose protection for ordinary locations. The Feraloy iron alloy body delivers resilience against corrosion and mechanical wear, while NEC/CEC compliance and UL certification support regulatory alignment. This combination helps maintain seals under typical industrial conditions and reduces maintenance due to ingress or deterioration.
The gland is ideal for industrial control panels, equipment enclosures, and process facilities that route tray cables through non-hazardous locations. Its non-armoured design and tray-cable compatibility make it suitable for general-purpose installations in manufacturing, water treatment, and light mining environments where reliable sealing and quick installation matter.
CGFP6913 adheres to NEC/CEC standards and is UL-certified for non-armoured glands in ordinary locations. Verification can be performed via UL certification pages and Eaton’s installation literature. The combination of NEC/CEC compliance and UL certification supports regulatory readiness in U.S. and Canadian facilities.
Choosing CGFP6913 standardizes gland selection with a 2" NPT thread and compatible tray-cable dimensions, reducing spare parts and inventory variety. The durable Feraloy body lowers replacement frequency, while NEC/CEC and UL alignment simplifies audits and procurement. The result is lower downtime, faster commissioning, and a clearer path to project payback.
