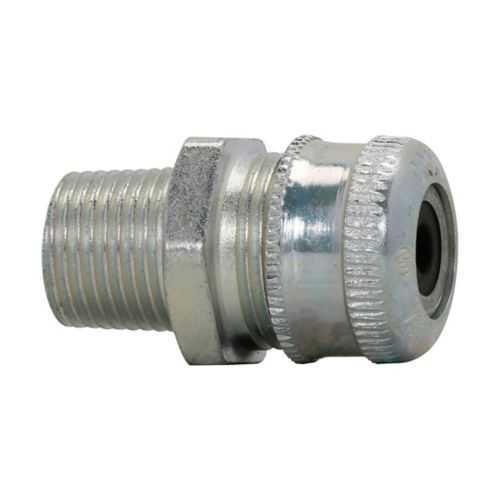

Eaton CGFP7917 Cable Gland - General Purpose NPT
Part Number: CGFP7917
Quick Summary
Eaton CGFP7917 cable gland provides a robust, non-armoured entry solution for tray cables used in electrical enclosures. This design addresses field challenges such as seal integrity, strain relief, and compatibility with rugged tray cables in ordinary locations. The unit aligns with NEC/CEC standards and is UL-listed for the U.S. and Canada, featuring an area classification of Ordinary/Non-Hazardous Locations to support compliant installations. By combining a 2-1/2 inch NPT thread with a durable Feraloy iron alloy body and a defined outer sheath range, it reduces installation time and maintenance costs while improving cable health and enclosure protection. This gland complements Eaton's CGF family and installation literature, delivering reliable performance in light to medium industrial applications.
Product Information
Extended Description
CGFP7917 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 1.875-2.188", General purpose, 2-1/2" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP7917
Product Length/Depth
4.69 in
Product Height
3.88 in
Product Width
3.88 in
Product Weight
3.8 lb
UPC
782274154008
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Non-armoured Tray cable
Gland type
Non-armoured
Thread Size
2-1/2"
Thread type
NPT
Outer sheath (min/max)
1.875-2.188"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification
IF 513A - CG Fittings Installation
IF 513A - CG Fittings Installation
Eaton Specification Sheet - CGFP7917
Non-armoured gland tailored for tray cable systems delivers straightforward compatibility with non-armoured tray cables, reducing mis-pairing and spare-parts inventory. This feature translates to faster break-in and fewer field adjustments during panel assembly, delivering measurable time savings. The CGFP7917 is well-suited for electrical enclosures, control panels, and machinery where tray cables are run in ordinary locations, and where damage risk is managed by a robust sealing design. The 2-1/2 inch NPT thread standardizes mounting with common conduit fittings, enabling quicker installation and easier maintenance across multiple panels and facilities. The Feraloy iron alloy body provides enhanced strength and wear resistance in industrial environments, contributing to longer gland life and reduced replacement costs. Outer sheath range of 1.875–2.188 inches ensures compatible fit for a broad subset of non-armoured tray cables, minimizing the need for adapters and custom hardware. Compliance is built in, with NEC/CEC alignment and UL certification, giving procurement teams confidence in regulatory readiness while simplifying audits. Compatibility with Eaton CGF fittings and installation literature (IF 513A) supports consistent torque, sealing, and ingress protection across projects, reducing commissioning risk and post-installation service calls. Overall, CGFP7917 delivers measurable efficiency gains, safer cable entries, and lower total cost of ownership for light to medium industrial installations.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP7917
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP7917?
Enquire Now
FAQs
Yes. The CGFP7917 is designed specifically for non-armoured tray cables in ordinary/non-hazardous locations. It uses a 2-1/2 inch NPT thread and non-armoured gland body to provide secure sealing and reliable strain relief, simplifying panel assembly and reducing the need for adapters or rework during installation.
Key specs include a 2-1/2 inch NPT thread, non-armoured gland type for tray cables, outer sheath range 1.875–2.188 inches, material of Feraloy iron alloy, and compact overall dimensions (approx. 4.69 in length, 3.88 in height/width) with a weight around 3.8 lb. Catalog number is CGFP7917, and it is NEC/CEC compliant with UL certification.
CGFP7917 is intended for Ordinary/Non-Hazardous Locations. It is not rated for hazardous (EX) environments or extreme outdoor exposure unless additional accessories or enclosures provide appropriate IP/EX protection. For harsh or explosive atmospheres, select a Crouse-Hinds gland designed for hazardous locations and verify IP ratings and regional standards before use.
CGFP7917 complies with NEC/CEC standards for general purpose, non-armoured glands. It is UL-certified and UL-listed for Canada and the U.S., and it carries an Ordinary/Non-Hazardous area classification. These certifications support regulatory acceptance, installation approvals, and safer operation in standard industrial facilities.
Installation resources include the IF 513A CG Fittings Installation instructions and the Eaton CGFP7917 specification sheet, which guide proper torque, sealing, and compatibility. Brochures and catalog pages also assist with system-wide gland selection, reducing downtime, ensuring consistent performance, and facilitating ongoing maintenance across multiple panels and facilities.
