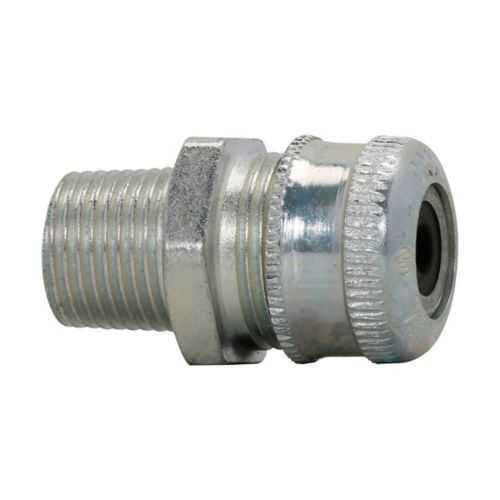

Eaton Crouse-Hinds CGFP8917 Cable Gland - NEC/CEC
Part Number: CGFP8917
Quick Summary
CGFP8917 cable gland from Eaton Crouse-Hinds provides reliable sealing for tray cables in industrial enclosures. Installing non-armoured glands often leads to moisture ingress and misfits that slow commissioning. This solution is NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations, with UL certification documents available for added assurance. With a 3 in NPT thread and a compatible outer sheath range, it integrates quickly into existing tray cable runs, delivering reliability and cost savings.
Product Information
Extended Description
CGFP8917 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 1.875-2.188", General purpose, 3" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP8917
Product Length/Depth
4.75 in
Product Height
3.88 in
Product Width
3.88 in
Product Weight
3.95 lb
UPC
782274154206
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
3"
Thread type
NPT
Outer sheath (min/max)
1.875-2.188"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 66 - CGFP Cable Terminator
IF 66 - CGFP Cable Terminator
Eaton Specification Sheet - CGFP8917
Feature: Feraloy iron alloy construction provides rugged mechanical strength and corrosion resistance. Business Impact: This improves long-term durability in harsh plant environments, reducing maintenance cycles and spare-part costs. Application: Suitable for non-armoured tray cables in control panels and motor starters where a general-purpose gland is required. Feature: Non-armoured, general-purpose design with a 3" NPT thread and an outer sheath range of 1.875-2.188". Business Impact: Enables fast, secure installations with minimal tooling and reduced ingress risk, shortening commissioning timelines. Application: Ideal for tray cables in non-armoured installations across industrial cabinets. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: Streamlines procurement, compliance checks, and audits for North American facilities. Application: Control rooms, manufacturing floors, and non-hazardous process areas needing reliable glanding. Feature: Availability of installation literature and catalogs (IF sheets, brochure, and datasheet). Business Impact: Accelerates design validation, field retrofits, and troubleshooting. Application: Engineering design reviews and on-site commissioning of existing tray cable runs. Feature: UL certification documentation and widely available Eaton literature. Business Impact: Supports regulatory approvals and customer verification processes. Application: Procurement audits, safety assessments, and compliance-driven projects requiring documented approval.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP8917
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP8917?
Enquire Now
FAQs
CGFP8917 uses a 3 inch NPT thread and is designed for non-armoured tray cable. The gland accommodates a sheath range of 1.875 to 2.188 inches and is a general-purpose solution ideal for standard control cabinet and equipment enclosures.
Key specifications include the 3" NPT thread, non-armoured gland type, outer sheath range, and the Feraloy iron alloy body. These features provide strong mechanical protection against ingress and durability in typical industrial environments, improving service life and reducing maintenance intervals.
No. The CGFP8917 is rated for Ordinary/Non-Hazardous Locations under NEC/CEC standards. For hazardous-area applications, a different gland engineered for explosion-proof or intrinsically safe environments should be selected, and UL/FM certifications should be reviewed.
The product is NEC/CEC compliant and rated for ordinary locations. UL certification documents and installation literature (IF sheets, brochures, and data sheets) are available to support compliance, procurement, and field installation validation.
Its non-armoured design with a standardized 3" NPT thread simplifies installation and stocking of spare glands for tray cables. The robust Feraloy body and compatible outer sheath range reduce ingress risk, improving uptime, while NEC/CEC compliance streamlines audits and procurement.
