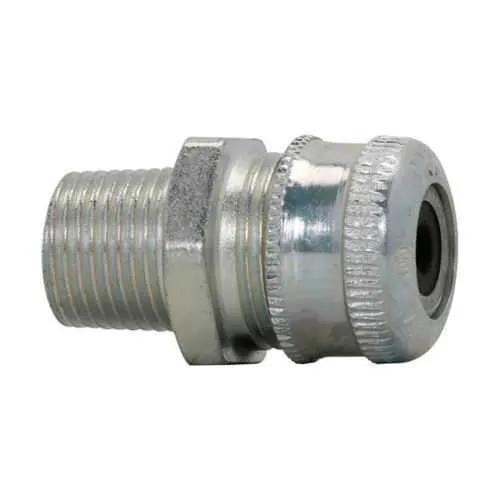

Eaton Crouse-Hinds CGFP923 Cable Gland - General Purpose, 3-1/2" NPT NEC/CEC
Part Number: CGFP923
Quick Summary
CGFP923 cable gland from Eaton Crouse-Hinds provides robust sealing for tray cable connections in industrial enclosures. In practice, many installations struggle with leaks, misfits, and slow maintenance when using generic glands. This unit is NEC/CEC compliant and suitable for Ordinary/Non-Hazardous Locations, with UL certifications documented for the non-armoured CGFP family. Designed for non-armoured tray cables, it uses a Feraloy iron alloy body for long life and a 3-1/2 inch NPT thread, plus an outer sheath range of 2.500–3.000 inches. For procurement and installation teams, this translates to reliable performance, predictable service life, and streamlined compliance across plant networks.
Product Information
Extended Description
CGFP923 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CGFP cable gland, Non-armoured and tray cable, Non-armoured gland, Feraloy iron alloy, Outer sheath min/max: 2.500-3.000", General purpose, 3-1/2" NPT
Product Name
Eaton Crouse-Hinds series CGFP cable gland
Catalog Number
CGFP923
Product Length/Depth
5.81 in
Product Height
5.5 in
Product Width
5.5 in
Product Weight
9.43 lb
UPC
782274152905
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Protection type
General purpose
Cable type
Tray cable Non-armoured
Gland type
Non-armoured
Thread Size
3-1/2"
Thread type
NPT
Outer sheath (min/max)
2.500-3.000"
Material
Feraloy iron alloy
Crouse-Hinds series Tray Cable Glands brochure
Crouse-Hinds series CGB, CGD, CGE and CGFP Non-armoured Glands catalog page
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
CGB, CGD, CGE and CGFP Non-armoured Glands UL certification (Cover)
IF 66 - CGFP Cable Terminator
IF 66 - CGFP Cable Terminator
Eaton Specification Sheet - CGFP923
Feature: Non-armoured CGFP gland design tailored for tray cables. Business Impact: simplifies installation and reduces misfit risk while delivering reliable sealing in general-purpose environments. Application: ideal for indoor plant wiring where non-armoured tray cables require straightforward ingress protection. Feature: Feraloy iron alloy body. Business Impact: provides rugged strength and corrosion resistance for long service life in tough industrial settings. Application: suitable for harsh factory floors and heavy equipment installations. Feature: 3-1/2 inch NPT threading. Business Impact: standardizes connections with common conduit fittings, reducing inventory and cross-compatibility risks. Application: supports easy integration with existing conduits in control panels. Feature: Outer sheath accommodation 2.500–3.000 inches. Business Impact: allows secure acceptance of a range of tray cable sheath diameters, lowering risk of misfit. Application: flexible for varied cable sources and installers. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: simplifies regulatory approvals and UL certification traceability, cutting validation time. Application: plant-wide installations where non-hazardous locations and NEC/CEC standards apply. Feature: All-metal construction and general purpose protection. Business Impact: provides reliable sealing and mechanical protection, reducing maintenance. Application: general-purpose, non-armoured glands across industrial applications.
Get a Quick Quote for a Eaton Crouse-Hinds CGFP923
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CGFP923?
Enquire Now
FAQs
CGFP923 installation follows standard conduit and gland procedures. Ensure the non-armoured tray cable matches the 2.500–3.000 inch outer sheath diameter, align the gland with the panel knockout, and tighten the NPT thread to the manufacturer’s torque recommendation. Use appropriate sealing compounds or gaskets to maintain ingress protection and verify proper seating before commissioning.
Key specs include a 3-1/2" NPT thread, outer sheath accommodation of 2.500–3.000 inches, Feraloy iron alloy construction, non-armoured gland and non-armoured tray cable compatibility, and general-purpose protection. It is designed for ordinary/non-hazardous locations and adheres to NEC/CEC standards with UL certification coverage for the family.
Yes. CGFP923 is specified for Ordinary/Non-Hazardous Locations and supports NEC/CEC compliance. This makes it appropriate for general purpose tray cable installations in typical manufacturing, process, and commercial facilities where non-armoured cables are used and regulatory compliance is required.
CGFP923 aligns with NEC/CEC standards and is part of a UL-certified family of non-armoured glands (covering CGB, CGD, CGE, and CGFP). It is designed for ordinary locations and supports UL certification traceability, aiding regulatory approvals and audit readiness.
The CGFP923 provides durable mechanical protection with a Feraloy iron alloy body, reducing replacement frequency and maintenance costs. Its standardized 3-1/2 inch NPT, compatibility with common conduit fittings, and UL/NEC/CEC compliance streamline installation, training, and procurement, delivering predictable life-cycle performance and faster project commissioning in plant automation.
