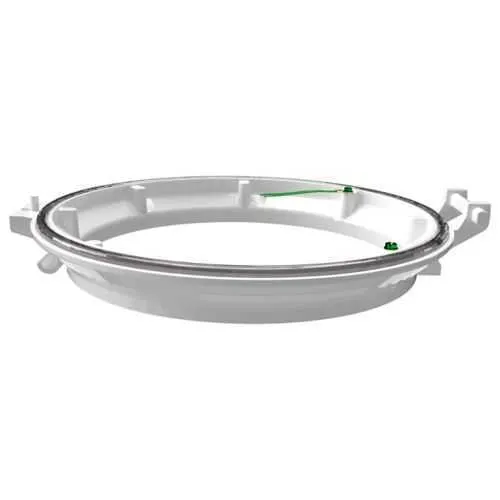

Eaton Crouse-Hinds CHMM3 Mounting Adapter - IP66
Part Number: CHMM3
Quick Summary
CHMM3 is a mounting module adapter for VMVL/PVML fixtures that enables secure retrofit in hazardous locations. Engineers often face misalignment, material incompatibility, and retrofit downtime when upgrading older HazLux systems. This adapter delivers IP66 enclosure protection, NEMA 4X ruggedness, and NEC/CEC compliance for Class I, Division 2; Class II, Division 1; Class III. By using copper-free aluminum and a retrofit-ready design, it reduces weight, enhances corrosion resistance, and simplifies field installation, making VMV/VMVL mounting smarter and more reliable for industrial lighting upgrades. The result is faster installations, fewer field changes, and long-term performance in demanding environments.
Product Information
Extended Description
CHMM3 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL/PVML mounting module adapter, Copper-free aluminum, To retrofit to Thomas and Betts HazLux fixtures
Product Name
Eaton Crouse-Hinds series Champ VMVL/PVML mounting module adapter
Catalog Number
CHMM3
Product Length/Depth
13.52 in
Product Height
2.5 in
Product Width
12 in
Product Weight
2.2 lb
UPC
662276962989
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Type
To retrofit to Thomas and Betts HazLux fixtures
Material
Copper-free aluminum
Mounting Adapters for VMV and VMVL flyer
Crouse-Hinds series CHMM Mounting Adapters catalog page
IF 1917 - CHMM3 Top Hat Adapter
Eaton Specification Sheet - CHMM3
Copper-free aluminum construction provides superior corrosion resistance while reducing overall weight, delivering longer service life in harsh industrial environments and lowering maintenance frequency for HazLux retrofit projects. This translates to fewer unplanned outages and lower lifecycle costs, especially in outdoor, washdown, or chemically aggressive facilities where VMVL/ PVML adapters operate. The CHMM3 design supports efficient field retrofits, enabling quick alignment and secure mounting for VMVL/PVML configurations and helping sustain production with minimal downtime. Pairing robust material with a retrofit-ready form factor improves installation confidence and reduces the need for custom hardware or modifications during HazLux upgrades. In practice, contractors see faster commissioning and clearer compliance pathways when upgrading legacy lighting to modern Champ VMV solutions.
Get a Quick Quote for a Eaton Crouse-Hinds CHMM3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CHMM3?
Enquire Now
FAQs
To install CHMM3, verify VMVL/PVML compatibility and HazLux retrofit suitability, then align the adapter with the fixture mounting surface and secure using standard hardware per the IF 1917 instructions. Ensure an IP66 seal and verify enclosure integrity after installation. Refer to the CHMM3 installation sheet for torque specs and step-by-step guidance to minimize field downtime.
CHMM3 provides IP66 enclosure protection and a NEMA 4X rating, designed for hazardous/classified locations. It supports NEC/CEC compliance with classifications including Class I, Division 2; Class II, Division 1; and Class III, making it suitable for a range of hazardous-area installations and ensuring regulatory alignment during retrofits.
Yes. CHMM3 is specifically engineered to retrofit Thomas and Betts HazLux fixtures, delivering a copper-free aluminum mounting solution with VMVL/PVML compatibility. It streamlines installation, reduces need for fabrications, and provides a durable, compliant interface for hazardous-location lighting upgrades.
CHMM3 measures 13.52 inches in length, 12 inches in width, and 2.5 inches in height, with a weight of 2.2 pounds. These dimensions support straightforward mounting within standard HazLux retrofit footprints, ease handling in the field, and compatibility with common mounting rails and enclosures found in industrial facilities.
The copper-free aluminum construction resists corrosion, reducing maintenance needs and replacement costs in harsh environments. Improved durability and faster retrofits lower total cost of ownership, while IP66/NEMA 4X protection minimizes enclosure-related maintenance and downtime, delivering a favorable return on investment for long-term hazardous-location lighting projects.
